SDO HMI 2014-07-04 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.54 | 1028.75 | 197.16 | 1023.61 | -7.75 | 219.18 | -59.09 | 100.91 | 0.8666 | 337.7 | -36.7 | |
|
previous
or next observation for the same group /

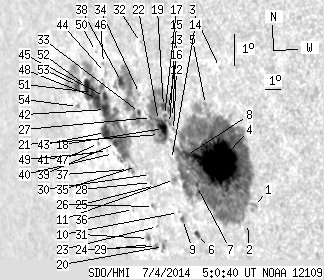

back to the solar disc SDO HMI 2014-07-04 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.00 | 0.00 | 3.56 | -9.53 | 223.29 | -54.98 | 103.71 | 0.8334 | 392.0 | 355.2 | |
| 0.00 | 2.63 | 0.00 | 2.38 | -10.09 | 222.83 | -55.44 | 104.26 | 0.8387 | 250.0 | 188.1 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -5.28 | 222.26 | -56.01 | 98.47 | 0.8369 | -461.0 | -372.2 | |
| 119.66 | 606.37 | 110.76 | 564.89 | -8.24 | 221.66 | -56.61 | 101.86 | 0.8464 | 991.1 | 223.8 | |
| 0.00 | 1.73 | 0.00 | 1.60 | -6.46 | 221.29 | -56.99 | 99.72 | 0.8474 | 400.0 | 359.2 | |
| 2.18 | 3.91 | 2.15 | 3.84 | -10.57 | 219.83 | -58.44 | 104.20 | 0.8661 | 372.9 | 198.2 | |
| 0.82 | -4.00 | 0.79 | -4.00 | -9.03 | 220.21 | -58.06 | 102.50 | 0.8605 | -43.3 | 999999 | |
| 1.64 | -4.00 | 1.59 | -4.00 | -8.11 | 219.84 | -58.43 | 101.39 | 0.8624 | 191.7 | 999999 | |
| 1.09 | 4.09 | 1.09 | 4.10 | -10.14 | 219.05 | -59.22 | 103.56 | 0.8719 | 262.2 | 74.1 | |
| 0.00 | 0.73 | 0.00 | 0.73 | -9.93 | 218.87 | -59.40 | 103.29 | 0.8731 | 106.0 | 124.6 | |
| 0.55 | 5.72 | 0.55 | 5.75 | -8.90 | 218.92 | -59.35 | 102.13 | 0.8713 | -614.5 | -567.8 | |
| 0.00 | 1.54 | 0.00 | 1.52 | -7.36 | 219.24 | -59.03 | 100.43 | 0.8667 | 429.0 | 410.9 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -6.96 | 219.26 | -59.01 | 99.97 | 0.8660 | 294.0 | 286.6 | |
| 0.00 | 1.18 | 0.00 | 1.18 | -8.28 | 218.90 | -59.37 | 101.42 | 0.8707 | -411.0 | -370.2 | |
| 0.36 | 156.00 | 0.36 | 160.86 | -7.16 | 219.04 | -59.23 | 100.16 | 0.8681 | 695.8 | -280.4 | |
| 1.45 | -15.00 | 1.44 | -15.00 | -6.72 | 219.07 | -59.20 | 99.67 | 0.8673 | 629.4 | 999999 | |
| 0.91 | -15.00 | 0.91 | -15.00 | -6.92 | 218.79 | -59.48 | 99.85 | 0.8700 | 512.1 | 999999 | |
| 9.27 | -15.00 | 9.31 | -15.00 | -7.33 | 218.64 | -59.63 | 100.30 | 0.8717 | 455.2 | 999999 | |
| 2.91 | -15.00 | 2.90 | -15.00 | -6.64 | 218.78 | -59.49 | 99.54 | 0.8697 | 513.0 | 999999 | |
| 1.00 | 2.36 | 1.06 | 2.50 | -11.06 | 217.56 | -60.71 | 104.31 | 0.8853 | -675.4 | -626.5 | |
| 1.09 | -15.00 | 1.10 | -15.00 | -7.53 | 218.34 | -59.93 | 100.48 | 0.8744 | -63.9 | 999999 | |
| 0.27 | -15.00 | 0.28 | -15.00 | -7.10 | 218.38 | -59.89 | 99.99 | 0.8736 | 368.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.25 | -10.44 | 217.39 | -60.88 | 103.59 | 0.8858 | 273.0 | 158.6 | |
| 1.09 | 3.18 | 1.17 | 3.42 | -11.08 | 217.10 | -61.17 | 104.25 | 0.8889 | -677.0 | -584.9 | |
| 0.00 | 2.36 | 0.00 | 2.47 | -9.15 | 217.67 | -60.60 | 102.19 | 0.8819 | -447.0 | -456.2 | |
| 0.00 | 2.27 | 0.00 | 2.40 | -9.82 | 217.34 | -60.93 | 102.89 | 0.8854 | -579.0 | -514.6 | |
| 1.27 | -15.00 | 1.30 | -15.00 | -7.02 | 217.96 | -60.31 | 99.84 | 0.8770 | -9.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.62 | -9.07 | 217.44 | -60.83 | 102.06 | 0.8836 | -593.0 | -453.9 | |
| 0.00 | 0.64 | 0.00 | 0.69 | -11.04 | 216.73 | -61.54 | 104.14 | 0.8917 | -407.0 | -409.3 | |
| 0.00 | 1.64 | 0.00 | 1.72 | -8.82 | 217.45 | -60.82 | 101.78 | 0.8833 | -326.0 | -351.9 | |
| 0.82 | 3.18 | 0.89 | 3.46 | -10.85 | 216.66 | -61.61 | 103.92 | 0.8920 | -672.2 | -533.2 | |
| 0.00 | 1.09 | 0.00 | 1.11 | -4.72 | 217.70 | -60.57 | 97.20 | 0.8768 | -513.0 | -493.2 | |
| 1.73 | -15.00 | 1.81 | -15.00 | -6.91 | 217.23 | -61.04 | 99.60 | 0.8829 | 15.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.80 | -6.31 | 217.36 | -60.91 | 98.95 | 0.8812 | -498.0 | -456.6 | |
| 0.00 | 0.45 | 0.00 | 0.49 | -8.61 | 216.60 | -61.67 | 101.42 | 0.8897 | -640.0 | -526.0 | |
| 0.00 | 1.27 | 0.00 | 1.41 | -9.98 | 215.97 | -62.30 | 102.83 | 0.8962 | -261.0 | -210.0 | |
| 0.55 | 4.54 | 0.60 | 4.96 | -8.73 | 216.04 | -62.24 | 101.46 | 0.8943 | -484.0 | -555.1 | |
| 4.72 | -15.00 | 5.09 | -15.00 | -6.00 | 216.25 | -62.02 | 98.45 | 0.8897 | -843.9 | 999999 | |
| 2.82 | 167.99 | 3.15 | 189.82 | -7.96 | 215.38 | -62.89 | 100.51 | 0.8984 | -830.5 | -571.6 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -8.28 | 215.15 | -63.12 | 100.83 | 0.9004 | -325.0 | -294.3 | |
| 0.00 | 0.91 | 0.00 | 1.04 | -8.21 | 214.76 | -63.51 | 100.69 | 0.9033 | -284.0 | -240.7 | |
| 9.27 | -39.00 | 10.47 | -39.00 | -6.92 | 214.97 | -63.30 | 99.31 | 0.9005 | -726.8 | 999999 | |
| 9.09 | -39.00 | 10.36 | -39.00 | -7.65 | 214.78 | -63.49 | 100.08 | 0.9026 | -640.8 | 999999 | |
| 0.00 | 2.45 | 0.00 | 2.73 | -5.77 | 215.23 | -63.04 | 98.06 | 0.8975 | -563.0 | -482.5 | |
| 3.63 | -39.00 | 4.09 | -39.00 | -6.52 | 214.99 | -63.28 | 98.87 | 0.8999 | -835.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.42 | -5.50 | 215.14 | -63.13 | 97.75 | 0.8979 | -514.0 | -476.4 | |
| 0.00 | 1.09 | 0.00 | 1.27 | -8.02 | 214.18 | -64.09 | 100.40 | 0.9073 | -310.0 | -287.1 | |
| 3.54 | -39.00 | 4.07 | -39.00 | -6.61 | 214.49 | -63.78 | 98.90 | 0.9038 | -733.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.92 | -8.30 | 214.02 | -64.25 | 100.69 | 0.9087 | -246.0 | -171.7 | |
| 0.00 | 1.00 | 0.00 | 1.13 | -5.15 | 214.66 | -63.61 | 97.31 | 0.9013 | -299.0 | -300.5 | |
| 3.91 | -39.00 | 4.53 | -39.00 | -6.44 | 214.17 | -64.10 | 98.67 | 0.9059 | -724.7 | 999999 | |
| 7.27 | -39.00 | 8.54 | -39.00 | -6.27 | 213.78 | -64.49 | 98.44 | 0.9086 | -350.5 | 999999 | |
| 5.18 | 33.16 | 6.25 | 40.37 | -6.28 | 213.13 | -65.14 | 98.36 | 0.9133 | -276.1 | 127.6 | |
| 0.45 | 1.64 | 0.55 | 1.99 | -6.93 | 212.96 | -65.31 | 99.06 | 0.9150 | -140.0 | -35.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
