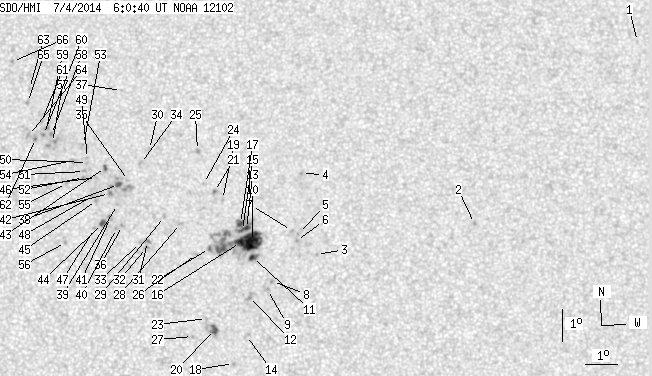

SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.71 | 235.05 | 23.89 | 117.93 | 11.80 | 278.07 | 0.34 | 356.02 | 0.1562 | -189.7 | -152.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.48 | 17.33 | 292.40 | 14.67 | 315.45 | 0.3462 | -652.0 | -431.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.74 | 286.83 | 9.11 | 313.86 | 0.2159 | -888.0 | -720.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.82 | 281.86 | 4.14 | 331.86 | 0.1510 | -827.0 | -645.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.32 | 281.43 | 3.71 | 340.27 | 0.1874 | -787.0 | -674.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.47 | 281.31 | 3.59 | 336.89 | 0.1570 | -863.0 | -713.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.26 | 281.25 | 3.52 | 336.71 | 0.1531 | -950.0 | -840.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.56 | 281.10 | 3.37 | 338.37 | 0.1570 | -810.0 | -632.9 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 10.00 | 280.49 | 2.76 | 338.11 | 0.1280 | -971.0 | -737.0 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 9.75 | 280.33 | 2.61 | 338.53 | 0.1230 | -1001.0 | -820.1 | |
| 26.26 | 107.31 | 13.15 | 53.72 | 11.23 | 279.88 | 2.15 | 345.19 | 0.1450 | -1208.6 | -747.5 | |
| 2.54 | -10.00 | 1.27 | -10.00 | 10.74 | 279.87 | 2.15 | 344.28 | 0.1367 | -1057.6 | 999999 | |
| 0.00 | 4.82 | 0.00 | 2.40 | 9.54 | 279.77 | 2.05 | 342.27 | 0.1163 | -927.0 | -866.2 | |
| 1.82 | -10.00 | 0.91 | -10.00 | 11.63 | 279.69 | 1.97 | 347.04 | 0.1509 | -1139.7 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 8.35 | 279.67 | 1.95 | 339.41 | 0.0961 | -647.0 | -567.5 | |
| 0.27 | -10.00 | 0.14 | -10.00 | 11.57 | 279.57 | 1.85 | 347.75 | 0.1494 | -1242.3 | 999999 | |
| 6.18 | -10.00 | 3.09 | -10.00 | 11.20 | 279.50 | 1.78 | 347.62 | 0.1429 | -1225.0 | 999999 | |
| 2.73 | -10.00 | 1.37 | -10.00 | 11.79 | 279.51 | 1.79 | 348.44 | 0.1529 | -882.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.49 | 279.27 | 1.54 | 340.32 | 0.0796 | -934.0 | -763.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.53 | 278.95 | 1.23 | 352.63 | 0.1640 | -821.0 | -567.5 | |
| 3.09 | 9.81 | 1.54 | 4.88 | 8.53 | 278.69 | 0.96 | 349.84 | 0.0946 | -1183.8 | -810.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.78 | 278.70 | 0.98 | 354.26 | 0.1677 | -1055.0 | -867.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.02 | 278.54 | 0.82 | 354.11 | 0.1372 | -979.0 | -790.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.87 | 278.44 | 0.72 | 352.85 | 0.0998 | -865.0 | -584.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.02 | 278.36 | 0.64 | 356.36 | 0.1715 | -765.0 | -505.5 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 14.05 | 278.18 | 0.45 | 357.66 | 0.1890 | -823.0 | -723.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.83 | 278.14 | 0.41 | 356.94 | 0.1334 | -874.0 | -578.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.32 | 278.01 | 0.28 | 356.85 | 0.0896 | -848.0 | -623.8 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.79 | 277.64 | -0.08 | 0.54 | 0.1498 | -646.0 | -499.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.01 | 277.14 | -0.58 | 3.71 | 0.1539 | -810.0 | -599.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 14.08 | 276.67 | -1.05 | 5.41 | 0.1902 | -816.0 | -623.8 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 11.24 | 276.61 | -1.11 | 7.74 | 0.1415 | 1005.0 | 774.6 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 11.05 | 276.58 | -1.14 | 8.14 | 0.1384 | 929.0 | 752.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.21 | 276.40 | -1.33 | 9.27 | 0.1415 | 833.0 | 536.1 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.64 | 276.39 | -1.33 | 7.13 | 0.1833 | -649.0 | -618.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.12 | 276.01 | -1.71 | 9.58 | 0.1753 | 720.0 | 609.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.73 | 275.84 | -1.89 | 12.29 | 0.1523 | 893.0 | 803.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.92 | 275.77 | -1.95 | 8.46 | 0.2233 | 705.0 | 541.5 | |
| 1.82 | 14.36 | 0.91 | 7.22 | 12.99 | 275.70 | -2.02 | 11.43 | 0.1741 | 1198.5 | 848.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.38 | 275.68 | -2.05 | 12.36 | 0.1638 | 884.0 | 720.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.64 | 275.65 | -2.07 | 13.60 | 0.1514 | 862.0 | 626.7 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.97 | 275.46 | -2.26 | 14.23 | 0.1579 | 886.0 | 918.0 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 12.72 | 275.42 | -2.30 | 13.34 | 0.1705 | 1100.0 | 933.3 | |
| 1.09 | 2.36 | 0.55 | 1.19 | 13.52 | 275.29 | -2.43 | 12.98 | 0.1845 | 1076.7 | 885.0 | |
| 1.91 | 3.82 | 0.96 | 1.91 | 11.79 | 275.21 | -2.51 | 16.04 | 0.1559 | 1146.3 | 897.6 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 12.50 | 275.02 | -2.70 | 15.93 | 0.1686 | 942.0 | 723.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.21 | 275.01 | -2.71 | 14.85 | 0.1805 | 952.0 | 699.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.64 | 274.96 | -2.76 | 17.84 | 0.1546 | 807.0 | 649.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.62 | 274.86 | -2.86 | 16.59 | 0.1714 | 970.0 | 715.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.80 | 274.72 | -3.00 | 15.46 | 0.1915 | 876.0 | 753.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.67 | 274.72 | -3.00 | 15.63 | 0.1895 | 609.0 | 517.0 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.40 | 274.63 | -3.09 | 16.51 | 0.1853 | 991.0 | 867.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.21 | 274.60 | -3.12 | 16.96 | 0.1824 | 1118.0 | 927.1 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 14.23 | 274.59 | -3.13 | 15.48 | 0.1993 | 692.0 | 557.7 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 13.74 | 274.25 | -3.47 | 17.84 | 0.1928 | 1047.0 | 779.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.02 | 274.07 | -3.65 | 19.99 | 0.1822 | 831.0 | 673.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 11.20 | 274.07 | -3.66 | 24.22 | 0.1532 | 948.0 | 705.6 | |
| 0.00 | 5.72 | 0.00 | 2.90 | 14.29 | 273.61 | -4.11 | 19.85 | 0.2054 | 536.0 | 831.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.54 | 273.58 | -4.14 | 19.59 | 0.2096 | 925.0 | 828.4 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 14.73 | 273.42 | -4.31 | 19.98 | 0.2135 | 833.0 | 766.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.54 | 273.33 | -4.40 | 20.68 | 0.2110 | 1180.0 | 992.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.94 | 273.25 | -4.47 | 20.30 | 0.2179 | 870.0 | 640.1 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 14.41 | 273.08 | -4.65 | 21.98 | 0.2106 | 1142.0 | 937.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.97 | 272.85 | -4.87 | 20.27 | 0.2367 | 811.0 | 538.1 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 14.51 | 272.85 | -4.87 | 22.75 | 0.2135 | 843.0 | 681.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 15.53 | 272.80 | -4.92 | 21.17 | 0.2301 | 928.0 | 628.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.82 | 272.29 | -5.43 | 21.06 | 0.2534 | 918.0 | 784.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
