SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.50 | 426.41 | 42.64 | 226.92 | 15.32 | 260.35 | -17.37 | 53.10 | 0.3604 | -381.9 | -180.6 | |
|
previous
or next observation for the same group /

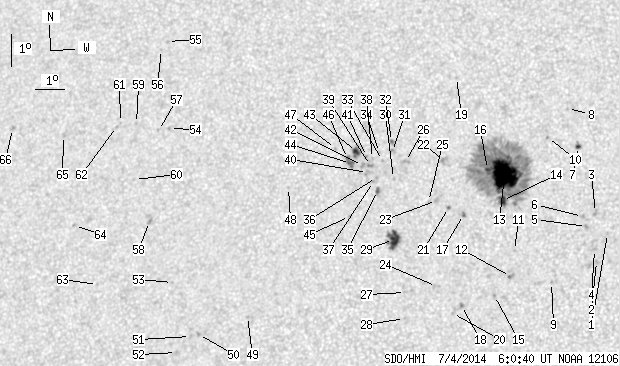

back to the solar disc SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.86 | 265.24 | -12.48 | 48.44 | 0.2817 | -828.0 | -663.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 12.99 | 264.93 | -12.79 | 51.56 | 0.2766 | -840.0 | -739.9 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 14.51 | 264.82 | -12.91 | 47.63 | 0.2940 | -858.0 | -715.6 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 13.36 | 264.85 | -12.88 | 50.68 | 0.2815 | -931.0 | -764.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 14.07 | 264.55 | -13.17 | 49.34 | 0.2927 | -1032.0 | -881.2 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 14.38 | 264.40 | -13.32 | 48.83 | 0.2978 | -809.0 | -674.3 | |
| 1.36 | 3.45 | 0.71 | 1.81 | 16.56 | 264.13 | -13.59 | 44.10 | 0.3251 | -697.6 | -606.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 17.75 | 263.68 | -14.04 | 42.45 | 0.3439 | -646.0 | -463.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.33 | 263.52 | -14.20 | 56.26 | 0.2895 | -771.0 | -631.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 16.83 | 263.09 | -14.63 | 45.54 | 0.3402 | 653.0 | 553.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.30 | 262.27 | -15.46 | 55.67 | 0.3154 | -851.0 | -620.3 | |
| 0.00 | 2.63 | 0.00 | 1.37 | 12.50 | 262.19 | -15.54 | 58.02 | 0.3097 | -1130.0 | -910.6 | |
| 52.97 | 294.84 | 27.93 | 155.68 | 15.66 | 261.77 | -15.95 | 50.58 | 0.3441 | -1469.5 | -340.2 | |
| 5.00 | -13.00 | 2.63 | -13.00 | 14.85 | 261.77 | -15.96 | 52.52 | 0.3363 | -1212.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.90 | 261.70 | -16.02 | 60.43 | 0.3118 | -895.0 | -724.5 | |
| 1.54 | -13.00 | 0.82 | -13.00 | 15.81 | 261.20 | -16.53 | 51.18 | 0.3528 | -864.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 14.39 | 260.52 | -17.20 | 55.58 | 0.3488 | -1095.0 | -856.3 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 11.58 | 260.65 | -17.07 | 62.78 | 0.3248 | -1041.0 | -889.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 18.68 | 259.89 | -17.84 | 47.14 | 0.3975 | -636.0 | -407.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 11.33 | 260.37 | -17.35 | 63.83 | 0.3272 | -686.0 | -531.3 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 14.60 | 260.01 | -17.72 | 55.81 | 0.3575 | -785.0 | -639.8 | |
| 0.00 | 4.36 | 0.00 | 2.33 | 16.07 | 259.71 | -18.01 | 52.85 | 0.3743 | 723.0 | 636.9 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 14.82 | 259.59 | -18.13 | 55.89 | 0.3649 | -721.0 | -634.0 | |
| 0.00 | 2.82 | 0.00 | 1.48 | 12.15 | 259.80 | -17.93 | 62.29 | 0.3413 | -413.0 | -615.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.78 | 259.33 | -18.39 | 56.33 | 0.3682 | -576.0 | -425.6 | |
| 0.00 | 3.54 | 0.00 | 1.91 | 16.01 | 258.45 | -19.28 | 54.71 | 0.3904 | 979.0 | 736.4 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 11.95 | 258.79 | -18.93 | 63.99 | 0.3547 | -526.0 | -429.5 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 11.15 | 258.81 | -18.91 | 66.08 | 0.3493 | -618.0 | -514.0 | |
| 12.45 | 18.08 | 6.64 | 9.65 | 13.58 | 258.27 | -19.46 | 60.51 | 0.3735 | -1016.8 | -635.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 15.48 | 258.10 | -19.63 | 56.34 | 0.3906 | 788.0 | 663.4 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 16.32 | 257.98 | -19.75 | 54.66 | 0.3992 | 560.0 | 689.3 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 16.63 | 257.91 | -19.81 | 54.08 | 0.4027 | 812.0 | 760.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 16.03 | 257.67 | -20.05 | 55.66 | 0.4008 | 848.0 | 652.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.28 | 257.54 | -20.18 | 55.29 | 0.4045 | 658.0 | 550.9 | |
| 1.18 | 3.36 | 0.64 | 1.81 | 15.09 | 257.59 | -20.13 | 57.81 | 0.3943 | 1123.8 | 801.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.50 | 257.52 | -20.20 | 57.00 | 0.3985 | 933.0 | 669.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 15.37 | 257.43 | -20.29 | 57.39 | 0.3986 | 978.0 | 859.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 16.09 | 257.32 | -20.40 | 55.96 | 0.4058 | 809.0 | 584.9 | |
| 0.00 | 2.63 | 0.00 | 1.43 | 15.87 | 257.28 | -20.44 | 56.49 | 0.4046 | 1096.0 | 882.6 | |
| 0.00 | 3.63 | 0.00 | 1.97 | 15.65 | 257.20 | -20.52 | 57.06 | 0.4039 | 790.0 | 673.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.15 | 257.11 | -20.61 | 56.09 | 0.4091 | 840.0 | 711.1 | |
| 0.00 | 2.73 | 0.00 | 1.48 | 15.86 | 257.01 | -20.71 | 56.82 | 0.4082 | 991.0 | 900.0 | |
| 3.18 | 7.27 | 1.73 | 3.96 | 16.30 | 256.76 | -20.96 | 56.20 | 0.4150 | 986.9 | 784.4 | |
| 2.09 | 6.36 | 1.14 | 3.46 | 15.92 | 256.60 | -21.13 | 57.18 | 0.4142 | 968.2 | 809.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 14.27 | 256.73 | -20.99 | 60.63 | 0.4000 | 897.0 | 678.1 | |
| 0.73 | -44.00 | 0.40 | -44.00 | 16.07 | 256.48 | -21.25 | 56.99 | 0.4170 | 801.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.38 | 256.03 | -21.69 | 56.86 | 0.4253 | 698.0 | 576.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 15.13 | 254.57 | -23.16 | 60.95 | 0.4360 | -632.0 | -535.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 11.11 | 253.57 | -24.15 | 70.50 | 0.4277 | 664.0 | 543.8 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 10.52 | 251.94 | -25.78 | 72.76 | 0.4496 | 960.0 | 841.4 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 10.45 | 251.67 | -26.05 | 73.05 | 0.4534 | 703.0 | 625.0 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 9.95 | 251.23 | -26.49 | 74.34 | 0.4581 | 859.0 | 645.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 12.10 | 250.88 | -26.84 | 70.03 | 0.4716 | 807.0 | 662.8 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 16.88 | 250.15 | -27.58 | 61.32 | 0.5069 | 789.0 | 628.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 19.62 | 249.60 | -28.12 | 56.97 | 0.5317 | 727.0 | 560.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 19.36 | 249.43 | -28.30 | 57.55 | 0.5321 | 634.0 | 549.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.81 | 249.76 | -27.96 | 61.74 | 0.5116 | 560.0 | 574.4 | |
| 0.00 | 2.36 | 0.00 | 1.35 | 13.97 | 249.85 | -27.87 | 66.97 | 0.4949 | 865.0 | 632.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 17.01 | 248.93 | -28.79 | 61.98 | 0.5237 | 534.0 | 462.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.26 | 249.13 | -28.59 | 65.00 | 0.5114 | 469.0 | 395.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 17.02 | 248.34 | -29.38 | 62.37 | 0.5316 | 708.0 | 639.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 16.89 | 248.22 | -29.50 | 62.68 | 0.5325 | 684.0 | 544.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 11.97 | 248.24 | -29.48 | 71.68 | 0.5091 | 458.0 | 376.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 13.77 | 247.18 | -30.55 | 68.87 | 0.5313 | 583.0 | 480.7 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 16.56 | 246.32 | -31.41 | 64.45 | 0.5557 | 602.0 | 541.1 | |
| 0.00 | 2.45 | 0.00 | 1.49 | 16.73 | 244.36 | -33.36 | 65.28 | 0.5820 | 763.0 | 556.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
