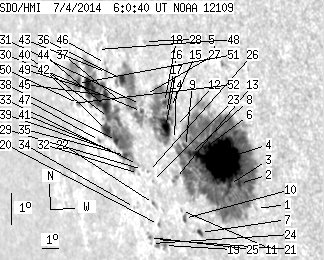

SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216.25 | 1056.62 | 214.41 | 1036.98 | -7.69 | 219.03 | -58.69 | 100.91 | 0.8631 | 235.2 | -29.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.96 | -9.66 | 223.25 | -54.47 | 103.98 | 0.8289 | 196.0 | 190.5 | |
| 2.36 | 608.58 | 2.11 | 558.70 | -8.92 | 222.51 | -55.21 | 102.94 | 0.8346 | 901.0 | 229.4 | |
| 1.91 | -2.00 | 1.73 | -2.00 | -8.98 | 221.95 | -55.77 | 102.89 | 0.8399 | 741.3 | 999999 | |
| 109.85 | -2.00 | 100.16 | -2.00 | -8.21 | 221.68 | -56.04 | 101.94 | 0.8412 | 1027.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.77 | -5.25 | 222.21 | -55.52 | 98.52 | 0.8321 | -530.0 | -452.7 | |
| 1.18 | -2.00 | 1.10 | -2.00 | -7.88 | 220.86 | -56.87 | 101.40 | 0.8482 | 398.6 | 999999 | |
| 2.27 | 3.09 | 2.20 | 2.99 | -10.57 | 219.87 | -57.85 | 104.32 | 0.8610 | 341.7 | 258.0 | |
| 3.18 | -2.00 | 3.03 | -2.00 | -8.11 | 219.94 | -57.78 | 101.50 | 0.8567 | 279.2 | 999999 | |
| 1.91 | -2.00 | 1.83 | -2.00 | -7.90 | 219.70 | -58.03 | 101.22 | 0.8586 | 294.3 | 999999 | |
| 1.64 | 3.45 | 1.62 | 3.41 | -10.17 | 219.04 | -58.68 | 103.70 | 0.8675 | 212.8 | 108.2 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -9.93 | 218.93 | -58.79 | 103.41 | 0.8680 | 124.0 | 74.0 | |
| 0.00 | 1.54 | 0.00 | 1.50 | -7.30 | 219.24 | -58.48 | 100.45 | 0.8618 | 370.0 | 375.5 | |
| 0.00 | 6.09 | 0.00 | 6.01 | -8.94 | 218.85 | -58.87 | 102.26 | 0.8673 | -658.0 | -529.8 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -7.71 | 219.09 | -58.63 | 100.90 | 0.8637 | -143.0 | -140.0 | |
| 1.18 | 103.04 | 1.15 | 102.12 | -6.72 | 219.06 | -58.66 | 99.76 | 0.8627 | 604.4 | -81.2 | |
| 1.27 | -15.00 | 1.25 | -15.00 | -6.92 | 218.78 | -58.94 | 99.94 | 0.8653 | 479.4 | 999999 | |
| 12.54 | -15.00 | 12.39 | -15.00 | -7.36 | 218.63 | -59.09 | 100.42 | 0.8672 | 443.0 | 999999 | |
| 2.27 | -15.00 | 2.23 | -15.00 | -6.59 | 218.73 | -58.99 | 99.55 | 0.8654 | 485.7 | 999999 | |
| 0.73 | 8.90 | 0.76 | 9.30 | -11.09 | 217.51 | -60.21 | 104.45 | 0.8814 | -752.8 | -555.2 | |
| 0.45 | 1.36 | 0.47 | 1.42 | -10.45 | 217.35 | -60.37 | 103.69 | 0.8817 | 108.0 | 6.9 | |
| 0.00 | 1.54 | 0.00 | 1.63 | -10.93 | 217.00 | -60.73 | 104.17 | 0.8852 | -442.0 | -419.4 | |
| 0.45 | 3.36 | 0.47 | 3.50 | -9.79 | 217.25 | -60.48 | 102.94 | 0.8817 | -613.0 | -451.9 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -9.10 | 217.39 | -60.33 | 102.19 | 0.8797 | -614.0 | -552.6 | |
| 0.00 | 0.82 | 0.00 | 0.87 | -11.07 | 216.69 | -61.03 | 104.27 | 0.8878 | -412.0 | -402.3 | |
| 0.55 | 1.82 | 0.58 | 1.94 | -10.89 | 216.63 | -61.10 | 104.05 | 0.8881 | -701.0 | -607.7 | |
| 0.00 | 0.82 | 0.00 | 0.85 | -8.80 | 217.22 | -60.50 | 101.82 | 0.8807 | -622.0 | -569.3 | |
| 0.00 | 2.27 | 0.00 | 2.31 | -6.39 | 217.61 | -60.11 | 99.16 | 0.8747 | -449.0 | -310.6 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -4.75 | 217.83 | -59.89 | 97.32 | 0.8711 | -436.0 | -395.8 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -8.75 | 216.85 | -60.87 | 101.71 | 0.8836 | -490.0 | -413.2 | |
| 1.18 | 14.63 | 1.21 | 15.14 | -6.94 | 217.25 | -60.48 | 99.72 | 0.8783 | 229.3 | -341.0 | |
| 0.00 | 3.00 | 0.00 | 3.08 | -6.72 | 217.23 | -60.49 | 99.48 | 0.8782 | -472.0 | -331.3 | |
| 0.00 | 1.09 | 0.00 | 1.16 | -8.89 | 216.56 | -61.17 | 101.82 | 0.8861 | -469.0 | -440.0 | |
| 0.00 | 2.82 | 0.00 | 2.98 | -8.61 | 216.57 | -61.15 | 101.50 | 0.8857 | -660.0 | -534.2 | |
| 0.00 | 0.82 | 0.00 | 0.89 | -9.98 | 215.96 | -61.77 | 102.93 | 0.8921 | -268.0 | -188.4 | |
| 3.09 | 175.63 | 3.35 | 194.63 | -8.37 | 215.86 | -61.86 | 101.12 | 0.8910 | -713.0 | -546.9 | |
| 4.91 | 56.70 | 5.20 | 59.39 | -6.00 | 216.23 | -61.49 | 98.52 | 0.8856 | -815.2 | -549.3 | |
| 0.00 | 0.82 | 0.00 | 0.87 | -6.72 | 216.01 | -61.71 | 99.30 | 0.8880 | -534.0 | -471.8 | |
| 2.63 | -35.00 | 2.90 | -35.00 | -7.93 | 215.38 | -62.34 | 100.56 | 0.8942 | -821.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.81 | -8.28 | 215.15 | -62.57 | 100.91 | 0.8964 | -217.0 | -209.4 | |
| 3.73 | -35.00 | 4.13 | -35.00 | -7.23 | 215.03 | -62.70 | 99.73 | 0.8962 | -854.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.22 | -8.24 | 214.75 | -62.97 | 100.81 | 0.8993 | -280.0 | -238.2 | |
| 8.81 | -35.00 | 9.86 | -35.00 | -7.65 | 214.78 | -62.94 | 100.16 | 0.8985 | -655.9 | 999999 | |
| 0.00 | 3.18 | 0.00 | 3.48 | -5.83 | 215.21 | -62.52 | 98.20 | 0.8935 | -417.0 | -444.9 | |
| 12.27 | -35.00 | 13.63 | -35.00 | -6.90 | 214.90 | -62.82 | 99.35 | 0.8968 | -747.0 | 999999 | |
| 4.45 | -35.00 | 4.92 | -35.00 | -6.55 | 214.99 | -62.74 | 98.97 | 0.8959 | -873.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.39 | -5.56 | 215.19 | -62.53 | 97.89 | 0.8934 | -531.0 | -494.6 | |
| 0.55 | 1.45 | 0.62 | 1.66 | -7.99 | 214.20 | -63.52 | 100.45 | 0.9031 | -346.8 | -292.6 | |
| 0.00 | 1.27 | 0.00 | 1.41 | -5.15 | 214.73 | -62.99 | 97.38 | 0.8966 | -393.0 | -318.6 | |
| 24.53 | -35.00 | 27.98 | -35.00 | -6.44 | 214.12 | -63.61 | 98.74 | 0.9023 | -547.8 | 999999 | |
| 0.64 | 1.64 | 0.76 | 1.94 | -6.90 | 213.01 | -64.71 | 99.10 | 0.9108 | -66.4 | -31.4 | |
| 5.72 | 34.89 | 6.77 | 41.57 | -6.28 | 213.09 | -64.63 | 98.43 | 0.9097 | -260.1 | 123.9 | |
| 0.00 | 1.00 | 0.00 | 1.21 | -6.93 | 212.49 | -65.24 | 99.06 | 0.9145 | 285.0 | 241.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
