SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.88 | 261.00 | 22.48 | 131.10 | 11.92 | 278.17 | 0.99 | 352.22 | 0.1605 | -229.6 | -164.9 | |
|
previous
or next observation for the same group /

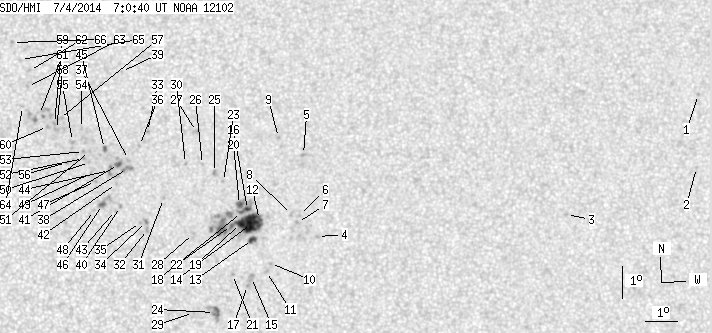

back to the solar disc SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.04 | 294.26 | 17.09 | 306.15 | 0.3530 | -766.0 | -626.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 12.78 | 294.02 | 16.85 | 300.80 | 0.3305 | -818.0 | -684.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.39 | 289.75 | 12.58 | 303.92 | 0.2584 | -897.0 | -719.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 10.79 | 281.90 | 4.73 | 328.47 | 0.1556 | -804.0 | -636.8 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 13.32 | 281.51 | 4.34 | 337.26 | 0.1913 | -789.0 | -633.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.44 | 281.35 | 4.18 | 333.49 | 0.1607 | -912.0 | -676.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.23 | 281.29 | 4.11 | 333.23 | 0.1569 | -1006.0 | -858.0 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 11.47 | 281.11 | 3.93 | 334.95 | 0.1594 | -813.0 | -654.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 13.85 | 280.74 | 3.56 | 341.91 | 0.1952 | -957.0 | -726.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.97 | 280.43 | 3.26 | 334.56 | 0.1309 | -986.0 | -760.6 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 9.73 | 280.31 | 3.13 | 334.61 | 0.1261 | -1029.0 | -793.5 | |
| 2.54 | 126.66 | 1.27 | 63.43 | 11.32 | 280.11 | 2.93 | 340.43 | 0.1504 | -884.1 | -719.4 | |
| 2.91 | -12.00 | 1.45 | -12.00 | 10.71 | 279.88 | 2.71 | 340.41 | 0.1391 | -1105.9 | 999999 | |
| 23.35 | -12.00 | 11.70 | -12.00 | 11.20 | 279.86 | 2.68 | 341.72 | 0.1470 | -1246.7 | 999999 | |
| 0.00 | 5.09 | 0.00 | 2.54 | 9.54 | 279.84 | 2.67 | 337.41 | 0.1199 | -951.0 | -810.7 | |
| 2.00 | -12.00 | 1.00 | -12.00 | 11.63 | 279.74 | 2.56 | 343.35 | 0.1535 | -1085.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.30 | 279.72 | 2.54 | 337.58 | 0.1152 | -909.0 | -768.6 | |
| 0.91 | -12.00 | 0.46 | -12.00 | 11.54 | 279.55 | 2.37 | 344.34 | 0.1511 | -1227.8 | 999999 | |
| 6.18 | -12.00 | 3.09 | -12.00 | 11.20 | 279.52 | 2.34 | 343.92 | 0.1453 | -1238.4 | 999999 | |
| 2.45 | -12.00 | 1.23 | -12.00 | 11.79 | 279.49 | 2.31 | 345.15 | 0.1549 | -886.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.64 | 279.25 | 2.08 | 342.27 | 0.1180 | -911.0 | -791.2 | |
| 0.91 | -12.00 | 0.45 | -12.00 | 11.14 | 279.23 | 2.06 | 345.66 | 0.1430 | -1158.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.50 | 279.00 | 1.82 | 349.11 | 0.1650 | -731.0 | -577.5 | |
| 0.00 | 11.54 | 0.00 | 5.74 | 8.47 | 278.69 | 1.52 | 344.07 | 0.0957 | -1105.0 | -873.8 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 12.78 | 278.72 | 1.54 | 351.02 | 0.1689 | -1067.0 | -734.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.03 | 278.34 | 1.17 | 353.35 | 0.1723 | -775.0 | -574.4 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 14.05 | 278.16 | 0.99 | 354.92 | 0.1895 | -714.0 | -684.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.90 | 278.05 | 0.88 | 353.58 | 0.1351 | -785.0 | -535.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.48 | 278.04 | 0.87 | 350.71 | 0.0933 | -712.0 | -545.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.06 | 277.81 | 0.64 | 356.37 | 0.1720 | 664.0 | 517.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 11.98 | 277.12 | -0.05 | 0.33 | 0.1530 | -800.0 | -545.7 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 11.02 | 276.63 | -0.55 | 3.97 | 0.1368 | 884.0 | 755.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.05 | 276.62 | -0.55 | 2.85 | 0.1890 | -924.0 | -715.9 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 11.27 | 276.59 | -0.58 | 4.06 | 0.1411 | 1049.0 | 833.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.24 | 276.41 | -0.77 | 5.38 | 0.1408 | 908.0 | 736.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.62 | 276.37 | -0.80 | 4.31 | 0.1819 | -800.0 | -626.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.18 | 276.03 | -1.15 | 6.42 | 0.1750 | 594.0 | 577.1 | |
| 0.00 | 5.91 | 0.00 | 2.97 | 12.91 | 276.00 | -1.18 | 6.78 | 0.1703 | 908.0 | 846.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.92 | 275.80 | -1.38 | 6.01 | 0.2221 | 630.0 | 424.9 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.73 | 275.78 | -1.39 | 9.12 | 0.1507 | 941.0 | 728.8 | |
| 1.54 | 5.63 | 0.78 | 2.83 | 13.03 | 275.72 | -1.46 | 8.28 | 0.1730 | 1177.5 | 903.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.44 | 275.66 | -1.52 | 9.17 | 0.1631 | 869.0 | 732.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.61 | 275.63 | -1.55 | 10.26 | 0.1490 | 686.0 | 537.6 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 12.84 | 275.44 | -1.74 | 10.03 | 0.1706 | 1008.0 | 947.2 | |
| 0.73 | 2.18 | 0.37 | 1.10 | 13.52 | 275.28 | -1.90 | 10.21 | 0.1827 | 1095.6 | 860.1 | |
| 1.36 | 7.27 | 0.68 | 3.64 | 11.79 | 275.22 | -1.95 | 12.60 | 0.1535 | 1165.6 | 854.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.50 | 275.00 | -2.17 | 12.93 | 0.1664 | 1064.0 | 854.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.61 | 274.98 | -2.20 | 14.44 | 0.1514 | 799.0 | 617.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.75 | 274.84 | -2.33 | 13.48 | 0.1711 | 829.0 | 632.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.09 | 274.81 | -2.37 | 13.20 | 0.1770 | 772.0 | 645.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.43 | 274.81 | -2.37 | 12.78 | 0.1827 | 822.0 | 705.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.21 | 274.62 | -2.56 | 14.04 | 0.1798 | 1026.0 | 912.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.43 | 274.62 | -2.56 | 13.75 | 0.1834 | 1043.0 | 907.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.14 | 274.55 | -2.63 | 13.20 | 0.1956 | 780.0 | 594.6 | |
| 0.00 | 3.00 | 0.00 | 1.51 | 13.74 | 274.27 | -2.91 | 15.09 | 0.1901 | 1030.0 | 728.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.09 | 274.09 | -3.09 | 17.01 | 0.1802 | 885.0 | 762.1 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 14.45 | 273.85 | -3.32 | 16.07 | 0.2038 | 778.0 | 707.9 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 14.11 | 273.76 | -3.41 | 16.99 | 0.1986 | 872.0 | 760.6 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 14.30 | 273.70 | -3.48 | 17.01 | 0.2020 | 1064.0 | 761.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.20 | 273.48 | -3.70 | 18.16 | 0.2016 | 948.0 | 875.2 | |
| 0.00 | 18.90 | 0.00 | 9.57 | 14.58 | 273.22 | -3.96 | 18.72 | 0.2090 | 474.0 | 750.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.95 | 272.88 | -4.30 | 18.10 | 0.2330 | 713.0 | 577.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.45 | 272.82 | -4.35 | 19.04 | 0.2253 | 832.0 | 652.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.82 | 272.68 | -4.50 | 20.64 | 0.2161 | 723.0 | 555.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.29 | 272.58 | -4.59 | 18.76 | 0.2401 | 580.0 | 391.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.82 | 272.31 | -4.86 | 19.01 | 0.2501 | 881.0 | 703.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
