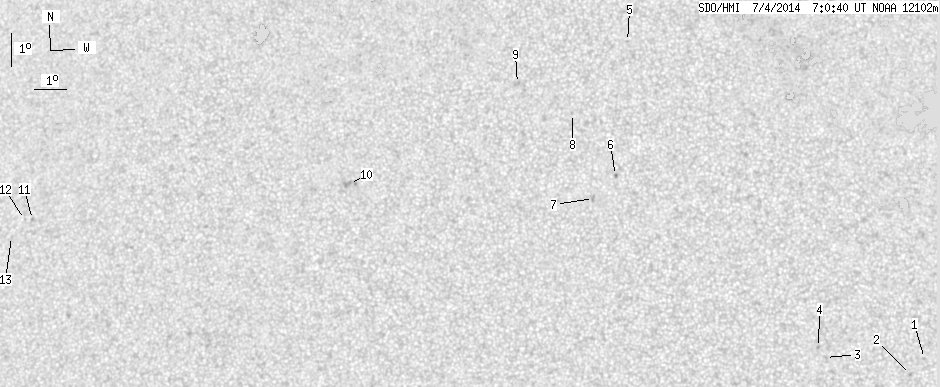

SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.33 | 0.00 | 10.95 | 8.20 | 266.07 | -11.10 | 84.75 | 0.2211 | 280.5 | 393.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.54 | 3.77 | 279.34 | 2.17 | 284.45 | 0.0392 | -897.0 | -626.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 3.29 | 278.91 | 1.74 | 272.32 | 0.0305 | -936.0 | -714.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 3.81 | 276.32 | -0.86 | 55.26 | 0.0182 | -814.0 | -628.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 4.11 | 276.11 | -1.07 | 49.94 | 0.0244 | -829.0 | -706.5 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.48 | 270.09 | -7.09 | 33.91 | 0.2161 | 782.0 | 613.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.35 | 269.81 | -7.36 | 49.70 | 0.1666 | 1047.0 | 904.9 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 8.64 | 269.14 | -8.03 | 55.48 | 0.1685 | 736.0 | 695.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.24 | 268.42 | -8.76 | 46.79 | 0.2058 | 744.0 | 566.2 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 12.15 | 266.65 | -10.52 | 48.81 | 0.2383 | 683.0 | 633.8 | |
| 0.00 | 5.45 | 0.00 | 2.82 | 9.02 | 261.43 | -15.74 | 68.94 | 0.2884 | 996.0 | 803.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 7.72 | 251.02 | -26.15 | 79.08 | 0.4466 | 830.0 | 625.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 7.72 | 250.75 | -26.43 | 79.18 | 0.4508 | 666.0 | 397.6 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 7.19 | 250.34 | -26.84 | 80.46 | 0.4561 | 638.0 | 542.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
