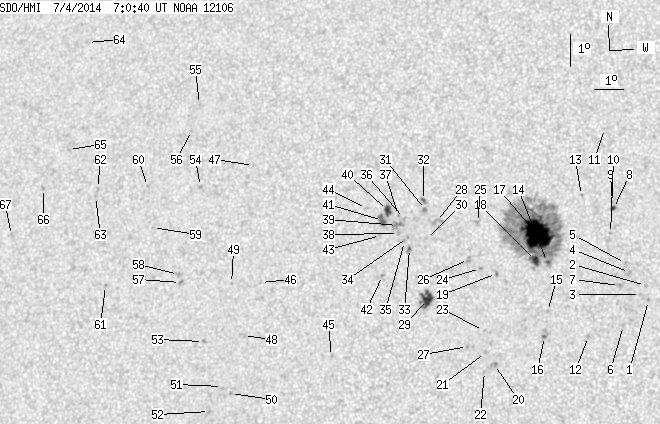

SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.32 | 452.85 | 44.54 | 240.54 | 15.34 | 260.23 | -16.94 | 52.29 | 0.3548 | -360.0 | -158.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.63 | 265.50 | -11.67 | 47.24 | 0.2690 | -896.0 | -746.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.09 | 265.38 | -11.79 | 46.24 | 0.2756 | -872.0 | -749.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.81 | 265.24 | -11.94 | 47.35 | 0.2743 | -795.0 | -648.9 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 14.49 | 264.85 | -12.33 | 46.41 | 0.2866 | -872.0 | -783.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 14.77 | 264.70 | -12.47 | 46.02 | 0.2915 | -733.0 | -582.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.85 | 264.74 | -12.43 | 51.24 | 0.2704 | -782.0 | -618.9 | |
| 0.00 | 2.64 | 0.00 | 1.36 | 14.08 | 264.55 | -12.63 | 48.16 | 0.2858 | -992.0 | -805.4 | |
| 1.36 | 2.54 | 0.71 | 1.33 | 16.48 | 264.21 | -12.97 | 42.99 | 0.3169 | -743.9 | -540.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.67 | 264.16 | -13.01 | 42.67 | 0.3196 | -781.0 | -582.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.70 | 264.16 | -13.01 | 44.90 | 0.3084 | -759.0 | -583.3 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 19.00 | 263.73 | -13.45 | 38.81 | 0.3524 | -760.0 | -636.8 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 12.49 | 263.64 | -13.54 | 54.55 | 0.2818 | -788.0 | -718.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 16.88 | 263.13 | -14.04 | 44.32 | 0.3338 | 751.0 | 581.6 | |
| 0.91 | 314.02 | 0.48 | 165.37 | 14.77 | 262.17 | -15.00 | 51.08 | 0.3231 | -1054.0 | -325.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.25 | 262.27 | -14.90 | 54.88 | 0.3074 | -714.0 | -604.9 | |
| 0.45 | 4.27 | 0.24 | 2.22 | 12.48 | 262.22 | -14.95 | 57.14 | 0.3013 | -1045.4 | -842.0 | |
| 56.79 | -14.00 | 29.87 | -14.00 | 15.64 | 261.78 | -15.39 | 49.67 | 0.3368 | -1450.2 | 999999 | |
| 5.00 | -14.00 | 2.62 | -14.00 | 14.83 | 261.78 | -15.40 | 51.64 | 0.3288 | -1196.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 14.41 | 260.53 | -16.65 | 54.72 | 0.3414 | -1063.0 | -873.9 | |
| 0.00 | 3.00 | 0.00 | 1.57 | 11.59 | 260.65 | -16.52 | 62.04 | 0.3168 | -1025.0 | -825.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.96 | 260.34 | -16.84 | 61.43 | 0.3240 | -863.0 | -724.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.37 | 260.34 | -16.83 | 63.08 | 0.3198 | -688.0 | -539.7 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 12.63 | 260.23 | -16.95 | 59.73 | 0.3307 | -650.0 | -480.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.55 | 259.99 | -17.19 | 55.17 | 0.3499 | -792.0 | -643.6 | |
| 0.00 | 3.36 | 0.00 | 1.79 | 15.98 | 259.77 | -17.40 | 52.15 | 0.3657 | 782.0 | 593.3 | |
| 0.00 | 3.36 | 0.00 | 1.78 | 14.83 | 259.57 | -17.60 | 55.12 | 0.3579 | -665.0 | -621.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.13 | 259.74 | -17.44 | 61.74 | 0.3340 | -769.0 | -590.0 | |
| 0.00 | 5.54 | 0.00 | 2.97 | 15.99 | 258.40 | -18.77 | 54.09 | 0.3836 | 557.0 | 692.0 | |
| 10.72 | 16.54 | 5.70 | 8.80 | 13.56 | 258.32 | -18.86 | 59.85 | 0.3649 | -1034.7 | -723.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 15.46 | 258.12 | -19.06 | 55.66 | 0.3828 | 824.0 | 664.5 | |
| 0.00 | 2.54 | 0.00 | 1.37 | 16.36 | 258.00 | -19.18 | 53.83 | 0.3921 | 794.0 | 718.4 | |
| 0.91 | 3.18 | 0.49 | 1.71 | 16.64 | 257.90 | -19.28 | 53.36 | 0.3958 | 799.0 | 665.8 | |
| 0.55 | 3.09 | 0.29 | 1.66 | 15.14 | 257.58 | -19.60 | 57.07 | 0.3874 | 1100.7 | 858.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.48 | 257.48 | -19.70 | 56.43 | 0.3915 | 908.0 | 690.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.35 | 257.39 | -19.79 | 56.82 | 0.3916 | 912.0 | 792.0 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 16.07 | 257.32 | -19.86 | 55.34 | 0.3985 | 786.0 | 574.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 16.16 | 257.11 | -20.07 | 55.41 | 0.4020 | 868.0 | 696.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 15.60 | 257.16 | -20.01 | 56.56 | 0.3967 | 970.0 | 746.2 | |
| 0.00 | 7.36 | 0.00 | 3.97 | 15.85 | 257.10 | -20.07 | 56.09 | 0.3995 | 903.0 | 858.8 | |
| 4.09 | 14.27 | 2.22 | 7.74 | 16.31 | 256.72 | -20.46 | 55.57 | 0.4084 | 983.9 | 725.4 | |
| 3.54 | -40.00 | 1.92 | -40.00 | 15.99 | 256.58 | -20.59 | 56.40 | 0.4076 | 900.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 14.28 | 256.75 | -20.42 | 59.99 | 0.3922 | 933.0 | 737.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.53 | 256.56 | -20.61 | 57.44 | 0.4042 | 566.0 | 491.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.36 | 256.00 | -21.18 | 56.32 | 0.4183 | 633.0 | 550.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 11.75 | 255.27 | -21.91 | 67.37 | 0.3975 | 663.0 | 505.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 13.98 | 252.63 | -24.55 | 64.56 | 0.4482 | 796.0 | 591.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.63 | 251.91 | -25.27 | 58.02 | 0.4815 | 673.0 | 495.5 | |
| 0.00 | 2.64 | 0.00 | 1.46 | 12.33 | 252.22 | -24.96 | 68.36 | 0.4453 | 124.0 | 221.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.93 | 251.63 | -25.55 | 65.45 | 0.4620 | 658.0 | 534.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 10.54 | 251.94 | -25.23 | 72.44 | 0.4414 | 958.0 | 810.5 | |
| 0.00 | 0.55 | 0.00 | 0.30 | 10.75 | 251.65 | -25.53 | 72.14 | 0.4467 | 621.0 | 660.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.97 | 251.27 | -25.91 | 74.03 | 0.4494 | 884.0 | 702.1 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 12.12 | 250.86 | -26.32 | 69.70 | 0.4641 | 788.0 | 640.3 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 16.93 | 250.13 | -27.05 | 60.83 | 0.5002 | 830.0 | 686.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 19.51 | 249.66 | -27.52 | 56.66 | 0.5234 | 771.0 | 593.1 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 18.68 | 249.51 | -27.66 | 58.20 | 0.5195 | 778.0 | 697.6 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 13.92 | 249.84 | -27.34 | 66.72 | 0.4872 | 801.0 | 660.5 | |
| 0.00 | 3.63 | 0.00 | 2.06 | 14.17 | 249.74 | -27.44 | 66.31 | 0.4899 | 762.0 | 567.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.60 | 248.61 | -28.57 | 64.36 | 0.5129 | 689.0 | 501.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.88 | 248.22 | -28.95 | 62.33 | 0.5251 | 784.0 | 600.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 13.76 | 247.17 | -30.00 | 68.61 | 0.5237 | 673.0 | 503.2 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 16.77 | 246.40 | -30.77 | 63.72 | 0.5485 | 692.0 | 565.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 16.52 | 246.37 | -30.80 | 64.17 | 0.5476 | 649.0 | 504.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 21.38 | 245.05 | -32.13 | 57.16 | 0.5916 | 621.0 | 459.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 17.96 | 245.09 | -32.09 | 62.53 | 0.5717 | 640.0 | 529.7 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 16.71 | 244.38 | -32.79 | 64.99 | 0.5745 | 842.0 | 663.0 | |
| 0.00 | 2.00 | 0.00 | 1.21 | 15.21 | 243.45 | -33.73 | 67.95 | 0.5802 | 593.0 | 410.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
