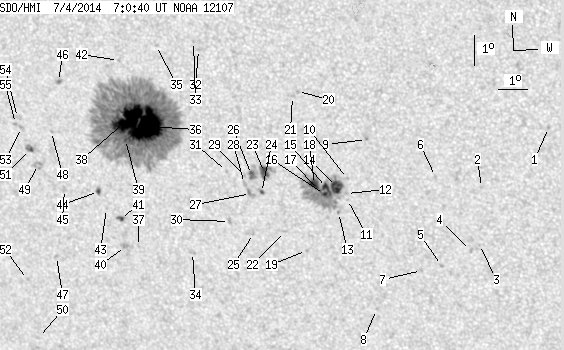

SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.30 | 824.31 | 82.98 | 472.17 | -19.30 | 257.16 | -20.01 | 139.76 | 0.5020 | 702.4 | 283.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.83 | -18.75 | 269.85 | -7.32 | 162.10 | 0.3943 | 706.0 | 464.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.76 | 267.55 | -9.63 | 158.91 | 0.4365 | 746.0 | 626.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.68 | 267.35 | -9.83 | 160.13 | 0.4654 | 523.0 | 457.7 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -22.88 | 267.03 | -10.15 | 159.71 | 0.4701 | 735.0 | 625.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -23.40 | 266.01 | -11.17 | 158.32 | 0.4831 | 796.0 | 674.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.40 | 266.05 | -11.13 | 155.65 | 0.4405 | 797.0 | 490.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -23.58 | 265.31 | -11.86 | 157.27 | 0.4896 | 726.0 | 590.9 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -24.94 | 263.63 | -13.55 | 155.70 | 0.5183 | 719.0 | 553.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.20 | 263.86 | -13.32 | 150.20 | 0.4397 | 815.0 | 597.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.51 | 263.10 | -14.07 | 150.39 | 0.4628 | 804.0 | 615.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.21 | 263.04 | -14.14 | 151.06 | 0.4726 | 438.0 | 448.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.01 | 263.02 | -14.15 | 150.82 | 0.4700 | 252.0 | 320.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.65 | 262.69 | -14.49 | 150.96 | 0.4810 | 747.0 | 630.7 | |
| 11.09 | 100.22 | 6.21 | 56.37 | -20.78 | 262.71 | -14.47 | 150.03 | 0.4694 | 1116.4 | 340.6 | |
| 3.91 | -14.00 | 2.19 | -14.00 | -20.82 | 262.37 | -14.81 | 149.50 | 0.4726 | 1050.3 | 999999 | |
| 1.64 | -14.00 | 0.92 | -14.00 | -21.05 | 262.28 | -14.90 | 149.61 | 0.4763 | 846.0 | 999999 | |
| 2.00 | -14.00 | 1.12 | -14.00 | -20.92 | 262.12 | -15.06 | 149.21 | 0.4758 | 859.6 | 999999 | |
| 6.09 | -14.00 | 3.42 | -14.00 | -20.72 | 261.97 | -15.20 | 148.73 | 0.4745 | 1063.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.95 | 261.45 | -15.73 | 150.38 | 0.5071 | -825.0 | -689.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.66 | 261.70 | -15.48 | 144.34 | 0.4380 | 865.0 | 753.7 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -17.82 | 261.52 | -15.66 | 144.26 | 0.4417 | 768.0 | 568.9 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -22.32 | 260.77 | -16.41 | 148.65 | 0.5043 | -754.0 | -488.1 | |
| 6.81 | 13.63 | 3.85 | 7.70 | -20.35 | 260.32 | -16.86 | 145.63 | 0.4835 | -1047.7 | -786.3 | |
| 1.00 | 2.18 | 0.57 | 1.24 | -21.02 | 260.14 | -17.04 | 146.17 | 0.4933 | -799.8 | -651.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.40 | 259.69 | -17.49 | 147.13 | 0.5139 | -610.0 | -519.5 | |
| 2.54 | 9.63 | 1.44 | 5.46 | -20.42 | 259.87 | -17.31 | 145.03 | 0.4884 | -923.8 | -683.5 | |
| 0.00 | 4.09 | 0.00 | 2.33 | -21.06 | 259.76 | -17.42 | 145.64 | 0.4970 | -704.0 | -669.7 | |
| 0.00 | 2.73 | 0.00 | 1.55 | -20.72 | 259.59 | -17.58 | 144.99 | 0.4944 | -761.0 | -558.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.46 | 259.62 | -17.55 | 144.70 | 0.4909 | -553.0 | -456.0 | |
| 0.00 | 2.64 | 0.00 | 1.52 | -22.01 | 258.91 | -18.27 | 145.55 | 0.5157 | -647.0 | -426.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.33 | 259.02 | -18.15 | 143.65 | 0.4948 | -783.0 | -605.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -16.34 | 258.52 | -18.65 | 137.25 | 0.4540 | -704.0 | -494.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -16.09 | 258.38 | -18.79 | 136.63 | 0.4527 | -798.0 | -645.7 | |
| 0.00 | 2.73 | 0.00 | 1.60 | -23.09 | 257.46 | -19.71 | 144.81 | 0.5406 | -389.0 | -349.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -16.24 | 257.12 | -20.06 | 135.05 | 0.4680 | -423.0 | -287.3 | |
| 61.88 | 610.15 | 35.42 | 349.99 | -18.89 | 256.49 | -20.68 | 138.14 | 0.5027 | 1468.1 | 398.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -22.92 | 255.58 | -21.60 | 142.19 | 0.5551 | -720.0 | -556.1 | |
| 42.98 | -36.00 | 24.66 | -36.00 | -18.64 | 255.87 | -21.30 | 136.96 | 0.5064 | 1299.2 | 999999 | |
| 0.27 | -36.00 | 0.16 | -36.00 | -19.34 | 255.67 | -21.50 | 137.68 | 0.5158 | 691.7 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.33 | -22.93 | 255.11 | -22.07 | 141.62 | 0.5594 | -956.0 | -748.9 | |
| 1.91 | 4.18 | 1.13 | 2.47 | -21.98 | 255.09 | -22.08 | 140.44 | 0.5494 | -832.0 | -598.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -16.75 | 255.77 | -21.41 | 134.02 | 0.4880 | -668.0 | -419.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -21.66 | 254.65 | -22.53 | 139.48 | 0.5502 | 479.0 | 317.2 | |
| 1.45 | 3.00 | 0.86 | 1.77 | -21.09 | 254.46 | -22.72 | 138.52 | 0.5461 | 836.5 | 660.5 | |
| 0.00 | 3.18 | 0.00 | 1.89 | -21.05 | 253.26 | -23.92 | 137.05 | 0.5575 | -111.0 | -239.8 | |
| 0.00 | 2.91 | 0.00 | 1.68 | -17.48 | 253.60 | -23.58 | 132.45 | 0.5191 | -877.0 | -736.4 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -23.33 | 252.54 | -24.63 | 139.12 | 0.5870 | -701.0 | -584.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -19.13 | 253.11 | -24.07 | 134.27 | 0.5401 | 327.0 | 272.9 | |
| 0.00 | 8.18 | 0.00 | 4.87 | -20.24 | 252.46 | -24.71 | 135.07 | 0.5575 | -747.0 | -580.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -26.15 | 251.25 | -25.92 | 141.04 | 0.6264 | -135.0 | -253.9 | |
| 1.73 | 5.54 | 1.03 | 3.29 | -19.74 | 252.26 | -24.91 | 134.17 | 0.5549 | -971.1 | -753.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -24.14 | 251.30 | -25.87 | 138.77 | 0.6065 | -650.0 | -482.8 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -19.02 | 252.06 | -25.11 | 132.95 | 0.5503 | -777.0 | -594.6 | |
| 0.00 | 5.00 | 0.00 | 2.96 | -18.70 | 251.97 | -25.20 | 132.39 | 0.5482 | -782.0 | -535.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -18.90 | 251.87 | -25.31 | 132.56 | 0.5512 | -790.0 | -648.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
