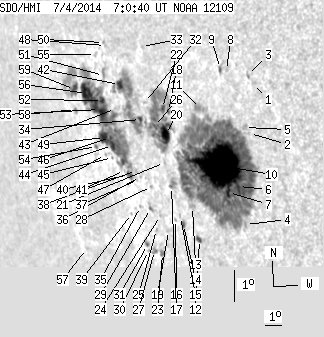

SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 213.90 | 1074.19 | 207.16 | 1035.49 | -7.71 | 219.10 | -58.07 | 101.03 | 0.8577 | 273.3 | -46.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.91 | -5.58 | 223.89 | -53.29 | 99.28 | 0.8106 | 164.0 | 171.7 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -7.14 | 223.44 | -53.74 | 101.11 | 0.8175 | 337.0 | 290.8 | |
| 0.00 | 2.09 | 0.00 | 1.77 | -5.34 | 223.61 | -53.57 | 98.95 | 0.8131 | 431.0 | 319.1 | |
| 0.00 | 2.09 | 0.00 | 1.85 | -10.01 | 222.62 | -54.56 | 104.37 | 0.8303 | 109.0 | 125.4 | |
| 0.00 | 3.18 | 0.00 | 2.73 | -6.97 | 223.21 | -53.97 | 100.85 | 0.8195 | 520.0 | 483.6 | |
| 2.54 | 600.88 | 2.25 | 543.37 | -8.83 | 222.52 | -54.65 | 102.95 | 0.8292 | 982.1 | 217.9 | |
| 1.54 | -6.00 | 1.38 | -6.00 | -9.04 | 221.93 | -55.24 | 103.08 | 0.8351 | 651.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -5.24 | 222.52 | -54.66 | 98.64 | 0.8238 | -361.0 | -312.7 | |
| 0.00 | 3.18 | 0.00 | 2.79 | -5.19 | 222.20 | -54.97 | 98.54 | 0.8268 | -309.0 | -357.7 | |
| 122.12 | -6.00 | 109.81 | -6.00 | -8.22 | 221.63 | -55.55 | 102.04 | 0.8366 | 991.6 | 999999 | |
| 0.00 | 9.18 | 0.00 | 8.35 | -6.49 | 220.91 | -56.26 | 99.87 | 0.8408 | 287.0 | 286.7 | |
| 2.00 | 3.82 | 1.91 | 3.64 | -10.61 | 219.89 | -57.28 | 104.48 | 0.8561 | 400.1 | 214.9 | |
| 0.00 | 3.36 | 0.00 | 3.20 | -9.58 | 219.78 | -57.40 | 103.28 | 0.8555 | -165.0 | -165.5 | |
| 1.45 | 2.91 | 1.41 | 2.83 | -10.18 | 219.08 | -58.09 | 103.82 | 0.8625 | 251.1 | 138.4 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -9.93 | 218.98 | -58.20 | 103.52 | 0.8630 | 250.0 | 236.9 | |
| 0.00 | 0.91 | 0.00 | 0.89 | -10.04 | 218.65 | -58.53 | 103.58 | 0.8660 | 20.0 | 21.5 | |
| 0.55 | 7.27 | 0.53 | 7.07 | -9.01 | 218.70 | -58.48 | 102.41 | 0.8641 | -760.5 | -543.4 | |
| 0.82 | 108.31 | 0.78 | 105.67 | -6.67 | 219.05 | -58.12 | 99.78 | 0.8579 | 649.7 | -88.3 | |
| 0.00 | 1.36 | 0.00 | 1.37 | -10.41 | 218.11 | -59.06 | 103.90 | 0.8710 | -255.0 | -209.5 | |
| 11.09 | -18.00 | 10.75 | -18.00 | -7.39 | 218.73 | -58.45 | 100.56 | 0.8616 | 496.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -8.27 | 218.47 | -58.71 | 101.53 | 0.8651 | -538.0 | -500.5 | |
| 2.54 | -18.00 | 2.46 | -18.00 | -6.59 | 218.72 | -58.46 | 99.64 | 0.8608 | 416.0 | 999999 | |
| 0.00 | 3.27 | 0.00 | 3.35 | -11.16 | 217.50 | -59.68 | 104.63 | 0.8772 | -739.0 | -665.6 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -9.96 | 217.76 | -59.41 | 103.32 | 0.8733 | -51.0 | -61.9 | |
| 0.00 | 1.00 | 0.00 | 1.02 | -10.42 | 217.38 | -59.80 | 103.77 | 0.8771 | 243.0 | 173.6 | |
| 1.73 | -18.00 | 1.70 | -18.00 | -7.18 | 218.12 | -59.06 | 100.21 | 0.8667 | -1.1 | 999999 | |
| 0.00 | 3.63 | 0.00 | 3.78 | -11.09 | 217.02 | -60.15 | 104.46 | 0.8809 | -729.0 | -587.8 | |
| 0.00 | 0.91 | 0.00 | 0.92 | -9.07 | 217.47 | -59.71 | 102.26 | 0.8745 | -541.0 | -506.0 | |
| 0.64 | 2.36 | 0.65 | 2.42 | -9.77 | 217.20 | -59.97 | 103.01 | 0.8776 | -564.9 | -520.3 | |
| 0.00 | 1.09 | 0.00 | 1.15 | -11.11 | 216.64 | -60.54 | 104.41 | 0.8840 | -501.0 | -414.2 | |
| 0.82 | 2.54 | 0.86 | 2.67 | -10.92 | 216.64 | -60.54 | 104.20 | 0.8837 | -655.1 | -576.9 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -6.46 | 217.66 | -59.51 | 99.32 | 0.8697 | -105.0 | -145.9 | |
| 0.00 | 0.91 | 0.00 | 0.90 | -4.72 | 217.77 | -59.40 | 97.35 | 0.8669 | -572.0 | -469.4 | |
| 1.45 | 72.42 | 1.47 | 74.41 | -7.00 | 217.30 | -59.87 | 99.89 | 0.8734 | 127.4 | -502.3 | |
| 0.00 | 0.91 | 0.00 | 0.95 | -9.74 | 216.58 | -60.59 | 102.86 | 0.8826 | -521.0 | -440.9 | |
| 0.00 | 0.82 | 0.00 | 0.84 | -8.79 | 216.86 | -60.31 | 101.84 | 0.8791 | -574.0 | -433.6 | |
| 0.00 | 1.00 | 0.00 | 1.04 | -8.89 | 216.71 | -60.47 | 101.93 | 0.8805 | -263.0 | -436.9 | |
| 0.00 | 1.64 | 0.00 | 1.70 | -8.61 | 216.66 | -60.52 | 101.61 | 0.8806 | -381.0 | -393.3 | |
| 0.00 | 0.82 | 0.00 | 0.87 | -9.99 | 215.93 | -61.25 | 103.03 | 0.8881 | -208.0 | -177.4 | |
| 2.91 | 178.91 | 3.07 | 194.43 | -8.76 | 216.17 | -61.00 | 101.69 | 0.8847 | -569.4 | -564.2 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -8.65 | 215.88 | -61.29 | 101.52 | 0.8869 | -273.0 | -275.0 | |
| 4.91 | -34.00 | 5.10 | -34.00 | -5.97 | 216.20 | -60.98 | 98.56 | 0.8814 | -802.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -6.73 | 215.78 | -61.39 | 99.36 | 0.8855 | -553.0 | -558.7 | |
| 4.72 | -40.00 | 5.11 | -40.00 | -7.90 | 215.30 | -61.87 | 100.60 | 0.8906 | -796.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.09 | -8.28 | 215.20 | -61.98 | 101.00 | 0.8918 | -213.0 | -230.3 | |
| 1.18 | -40.00 | 1.28 | -40.00 | -7.66 | 215.23 | -61.94 | 100.32 | 0.8908 | -899.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -8.21 | 214.75 | -62.42 | 100.86 | 0.8951 | -277.0 | -239.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -4.80 | 215.50 | -61.67 | 97.16 | 0.8859 | -562.0 | -564.7 | |
| 9.72 | -40.00 | 10.67 | -40.00 | -7.68 | 214.83 | -62.35 | 100.28 | 0.8940 | -633.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.26 | -4.72 | 215.39 | -61.79 | 97.05 | 0.8868 | -502.0 | -433.7 | |
| 0.00 | 5.27 | 0.00 | 5.66 | -5.74 | 215.20 | -61.97 | 98.17 | 0.8892 | -515.0 | -494.3 | |
| 2.18 | -40.00 | 2.37 | -40.00 | -6.53 | 214.98 | -62.20 | 99.02 | 0.8917 | -854.9 | 999999 | |
| 16.81 | -40.00 | 18.45 | -40.00 | -6.82 | 214.71 | -62.47 | 99.31 | 0.8941 | -733.6 | 999999 | |
| 0.82 | 1.91 | 0.92 | 2.14 | -7.99 | 214.20 | -62.97 | 100.53 | 0.8991 | -301.0 | -232.1 | |
| 0.00 | 2.18 | 0.00 | 2.37 | -5.12 | 214.79 | -62.38 | 97.42 | 0.8919 | -416.0 | -348.2 | |
| 14.72 | -40.00 | 16.54 | -40.00 | -6.36 | 213.93 | -63.24 | 98.70 | 0.8996 | -554.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.66 | -11.26 | 212.34 | -64.84 | 103.82 | 0.9159 | -183.0 | -118.3 | |
| 0.64 | 1.91 | 0.74 | 2.22 | -6.90 | 213.03 | -64.14 | 99.17 | 0.9067 | -104.1 | -87.8 | |
| 6.00 | 29.62 | 6.95 | 34.52 | -6.28 | 213.11 | -64.06 | 98.50 | 0.9056 | -258.0 | 113.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
