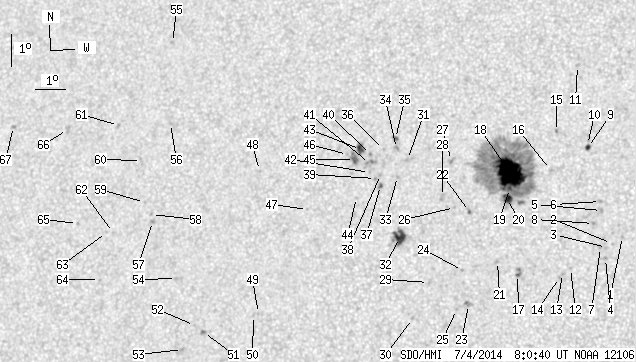

SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.42 | 428.90 | 43.90 | 226.96 | 15.26 | 260.33 | -16.29 | 51.45 | 0.3460 | -387.6 | -177.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.70 | 265.53 | -11.10 | 45.64 | 0.2627 | -872.0 | -727.0 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.48 | 265.19 | -11.44 | 47.11 | 0.2644 | -604.0 | -581.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.35 | 265.04 | -11.59 | 47.84 | 0.2649 | -861.0 | -749.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.01 | 265.02 | -11.61 | 48.88 | 0.2614 | -934.0 | -765.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 14.50 | 264.82 | -11.81 | 45.21 | 0.2804 | -885.0 | -747.1 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 14.78 | 264.77 | -11.86 | 44.60 | 0.2842 | -784.0 | -610.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.35 | 264.84 | -11.78 | 48.31 | 0.2673 | -938.0 | -781.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.09 | 264.58 | -12.05 | 46.85 | 0.2787 | -1065.0 | -850.6 | |
| 1.64 | 3.00 | 0.85 | 1.56 | 16.46 | 264.25 | -12.38 | 41.76 | 0.3100 | -686.4 | -503.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 16.55 | 264.25 | -12.38 | 41.56 | 0.3112 | -664.0 | -447.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 19.04 | 263.74 | -12.89 | 37.59 | 0.3471 | -701.0 | -600.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.69 | 263.92 | -12.71 | 52.31 | 0.2725 | -621.0 | -482.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.53 | 263.67 | -12.96 | 53.30 | 0.2743 | -904.0 | -772.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 12.41 | 263.58 | -13.05 | 53.86 | 0.2743 | -899.0 | -770.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.95 | 263.21 | -13.42 | 42.92 | 0.3275 | 826.0 | 693.8 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 15.76 | 263.09 | -13.54 | 45.87 | 0.3152 | 185.0 | 185.9 | |
| 0.64 | 3.91 | 0.33 | 2.02 | 12.48 | 262.22 | -14.40 | 56.18 | 0.2936 | -1034.3 | -876.2 | |
| 54.88 | 296.58 | 28.79 | 155.76 | 15.65 | 261.79 | -14.83 | 48.65 | 0.3299 | -1458.7 | -337.6 | |
| 2.45 | -18.00 | 1.28 | -18.00 | 15.15 | 261.80 | -14.83 | 49.85 | 0.3247 | -1167.3 | 999999 | |
| 6.18 | -18.00 | 3.23 | -18.00 | 14.83 | 261.75 | -14.88 | 50.70 | 0.3221 | -1152.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 12.88 | 261.56 | -15.07 | 56.21 | 0.3064 | -738.0 | -561.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 14.41 | 260.54 | -16.09 | 53.82 | 0.3339 | -991.0 | -785.9 | |
| 0.00 | 4.00 | 0.00 | 2.08 | 11.54 | 260.70 | -15.93 | 61.38 | 0.3077 | -1095.0 | -780.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.58 | 260.44 | -16.19 | 58.79 | 0.3196 | -735.0 | -574.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.38 | 260.32 | -16.31 | 62.37 | 0.3122 | -703.0 | -569.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 14.53 | 260.04 | -16.59 | 54.33 | 0.3417 | -766.0 | -621.2 | |
| 0.00 | 3.27 | 0.00 | 1.73 | 15.99 | 259.82 | -16.81 | 51.21 | 0.3581 | 905.0 | 760.9 | |
| 0.00 | 4.18 | 0.00 | 2.21 | 14.87 | 259.62 | -17.01 | 54.16 | 0.3503 | -565.0 | -581.6 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 12.20 | 259.35 | -17.27 | 61.36 | 0.3321 | -584.0 | -532.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.08 | 258.90 | -17.73 | 64.99 | 0.3311 | -722.0 | -500.9 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 16.00 | 258.36 | -18.27 | 53.38 | 0.3771 | 848.0 | 732.3 | |
| 9.81 | 16.26 | 5.20 | 8.62 | 13.57 | 258.30 | -18.33 | 59.16 | 0.3575 | -1067.0 | -683.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.47 | 258.07 | -18.55 | 54.98 | 0.3761 | 857.0 | 701.5 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 16.34 | 257.96 | -18.67 | 53.20 | 0.3853 | 769.0 | 696.5 | |
| 0.91 | 2.64 | 0.49 | 1.42 | 16.65 | 257.89 | -18.74 | 52.61 | 0.3889 | 850.4 | 622.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.30 | 257.52 | -19.10 | 53.87 | 0.3906 | 669.0 | 559.1 | |
| 0.73 | 2.45 | 0.39 | 1.31 | 15.18 | 257.53 | -19.10 | 56.35 | 0.3809 | 1096.6 | 908.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 15.52 | 257.50 | -19.13 | 55.62 | 0.3842 | 696.0 | 556.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 15.39 | 257.34 | -19.28 | 56.11 | 0.3852 | 1043.0 | 840.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.14 | 257.10 | -19.53 | 54.78 | 0.3947 | 895.0 | 804.8 | |
| 0.00 | 7.18 | 0.00 | 3.86 | 15.86 | 257.10 | -19.53 | 55.40 | 0.3924 | 896.0 | 864.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 15.58 | 257.13 | -19.50 | 55.98 | 0.3896 | 888.0 | 655.3 | |
| 3.82 | 12.99 | 2.06 | 7.02 | 16.29 | 256.75 | -19.88 | 54.90 | 0.4006 | 1010.6 | 751.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 14.79 | 256.76 | -19.86 | 58.19 | 0.3882 | 827.0 | 527.2 | |
| 2.36 | -43.00 | 1.28 | -43.00 | 15.97 | 256.58 | -20.05 | 55.79 | 0.4002 | 967.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 16.13 | 256.33 | -20.30 | 55.78 | 0.4048 | 545.0 | 453.6 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 14.39 | 255.15 | -21.47 | 60.89 | 0.4076 | 403.0 | 324.6 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 15.57 | 253.39 | -23.24 | 60.14 | 0.4402 | 624.0 | 441.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 11.14 | 253.79 | -22.83 | 69.53 | 0.4081 | 766.0 | 620.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 11.08 | 253.63 | -23.00 | 69.80 | 0.4103 | 686.0 | 556.3 | |
| 0.00 | 2.09 | 0.00 | 1.15 | 10.52 | 251.98 | -24.65 | 72.15 | 0.4326 | 951.0 | 755.4 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 10.73 | 251.65 | -24.97 | 71.87 | 0.4383 | 792.0 | 621.3 | |
| 0.00 | 2.00 | 0.00 | 1.10 | 9.98 | 251.31 | -25.32 | 73.72 | 0.4407 | 902.0 | 694.5 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 12.16 | 250.90 | -25.73 | 69.24 | 0.4557 | 838.0 | 662.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 19.52 | 249.73 | -26.90 | 56.11 | 0.5157 | 780.0 | 583.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.97 | 250.08 | -26.55 | 60.35 | 0.4939 | 684.0 | 626.1 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 13.90 | 249.86 | -26.77 | 66.38 | 0.4791 | 897.0 | 676.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.12 | 249.80 | -26.83 | 65.99 | 0.4811 | 645.0 | 517.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 14.49 | 249.51 | -27.12 | 65.48 | 0.4871 | 643.0 | 485.3 | |
| 0.00 | 2.91 | 0.00 | 1.66 | 15.79 | 249.22 | -27.41 | 63.21 | 0.4982 | 622.0 | 553.0 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 16.86 | 248.22 | -28.40 | 61.97 | 0.5177 | 803.0 | 598.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 13.53 | 248.53 | -28.10 | 67.96 | 0.4960 | 696.0 | 620.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 13.52 | 248.28 | -28.35 | 68.12 | 0.4995 | 587.0 | 473.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 12.07 | 248.21 | -28.42 | 70.99 | 0.4942 | 675.0 | 497.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 13.77 | 247.21 | -29.42 | 68.27 | 0.5157 | 637.0 | 448.2 | |
| 0.00 | 3.82 | 0.00 | 2.24 | 16.69 | 246.39 | -30.24 | 63.53 | 0.5410 | 715.0 | 576.8 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 16.73 | 244.37 | -32.26 | 64.68 | 0.5677 | 779.0 | 618.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
