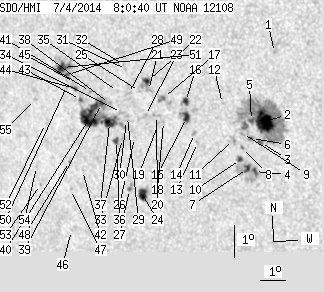

SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.41 | 368.65 | 71.69 | 236.00 | -7.67 | 238.87 | -37.76 | 106.38 | 0.6338 | -131.5 | 73.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | -5.39 | 242.65 | -33.98 | 104.14 | 0.5759 | 731.0 | 496.0 | |
| 25.99 | 140.29 | 15.93 | 86.06 | -7.54 | 242.11 | -34.52 | 107.48 | 0.5912 | 1122.0 | 436.5 | |
| 1.27 | -2.00 | 0.78 | -2.00 | -8.20 | 241.89 | -34.73 | 108.45 | 0.5967 | 738.1 | 999999 | |
| 2.09 | 31.08 | 1.30 | 19.37 | -9.11 | 241.57 | -35.06 | 109.74 | 0.6048 | 928.7 | 229.3 | |
| 1.82 | -2.00 | 1.12 | -2.00 | -7.53 | 241.62 | -35.01 | 107.23 | 0.5976 | 707.6 | 999999 | |
| 0.73 | 2.09 | 0.45 | 1.29 | -8.09 | 241.57 | -35.06 | 108.11 | 0.6006 | 769.9 | 647.1 | |
| 3.27 | -4.00 | 2.04 | -4.00 | -9.03 | 241.31 | -35.31 | 109.48 | 0.6078 | 745.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -8.38 | 241.20 | -35.43 | 108.40 | 0.6066 | 767.0 | 641.2 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -7.94 | 241.24 | -35.39 | 107.73 | 0.6043 | 580.0 | 511.2 | |
| 1.82 | -4.00 | 1.13 | -4.00 | -8.76 | 241.08 | -35.55 | 108.94 | 0.6097 | 615.7 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.10 | -8.14 | 240.88 | -35.75 | 107.87 | 0.6099 | 559.0 | 371.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -7.03 | 240.57 | -36.06 | 105.99 | 0.6099 | -727.0 | -522.9 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -8.28 | 239.48 | -37.14 | 107.47 | 0.6287 | -711.0 | -625.4 | |
| 0.00 | 2.27 | 0.00 | 1.44 | -8.00 | 239.40 | -37.23 | 107.01 | 0.6288 | -781.0 | -657.0 | |
| 4.91 | 10.63 | 3.12 | 6.77 | -7.52 | 239.14 | -37.49 | 106.16 | 0.6304 | 604.0 | 271.5 | |
| 2.91 | 5.91 | 1.85 | 3.76 | -7.02 | 239.15 | -37.48 | 105.39 | 0.6286 | 837.7 | 584.8 | |
| 1.00 | 6.63 | 0.64 | 4.26 | -6.92 | 238.30 | -38.33 | 104.93 | 0.6394 | 782.5 | 498.2 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -7.67 | 238.22 | -38.41 | 106.03 | 0.6428 | 198.0 | 254.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -7.74 | 238.02 | -38.61 | 106.06 | 0.6457 | -271.0 | -231.0 | |
| 0.00 | 3.00 | 0.00 | 1.94 | -7.49 | 237.97 | -38.66 | 105.67 | 0.6455 | 430.0 | 334.6 | |
| 0.00 | 2.64 | 0.00 | 1.71 | -6.73 | 237.73 | -38.90 | 104.42 | 0.6462 | 380.0 | 133.4 | |
| 3.36 | 7.27 | 2.18 | 4.71 | -6.45 | 237.68 | -38.95 | 103.99 | 0.6460 | 450.9 | -47.6 | |
| 0.00 | 2.36 | 0.00 | 1.54 | -7.51 | 237.53 | -39.10 | 105.53 | 0.6512 | -240.0 | -242.8 | |
| 7.36 | 10.90 | 4.87 | 7.21 | -9.98 | 237.09 | -39.54 | 108.99 | 0.6653 | -869.2 | -539.6 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -6.77 | 237.37 | -39.26 | 104.36 | 0.6510 | 477.0 | 408.8 | |
| 0.00 | 0.55 | 0.00 | 0.36 | -8.21 | 237.01 | -39.62 | 106.37 | 0.6601 | -668.0 | -535.8 | |
| 0.64 | 3.45 | 0.42 | 2.30 | -9.85 | 236.59 | -40.04 | 108.58 | 0.6710 | 671.0 | 413.3 | |
| 0.00 | 2.45 | 0.00 | 1.61 | -6.85 | 236.92 | -39.71 | 104.33 | 0.6569 | -227.0 | -196.0 | |
| 0.00 | 2.00 | 0.00 | 1.32 | -7.57 | 236.80 | -39.82 | 105.35 | 0.6606 | -322.0 | -304.3 | |
| 0.00 | 1.64 | 0.00 | 1.08 | -7.69 | 236.75 | -39.88 | 105.51 | 0.6617 | -250.0 | -247.1 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -6.11 | 236.91 | -39.72 | 103.22 | 0.6549 | 224.0 | 206.0 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -5.96 | 236.81 | -39.82 | 102.96 | 0.6559 | 411.0 | 309.5 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -8.26 | 236.52 | -40.11 | 106.26 | 0.6664 | -846.0 | -744.4 | |
| 0.00 | 2.36 | 0.00 | 1.56 | -7.45 | 236.58 | -40.05 | 105.10 | 0.6631 | -509.0 | -472.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -6.80 | 236.48 | -40.14 | 104.11 | 0.6624 | -208.0 | -157.5 | |
| 2.27 | 3.73 | 1.51 | 2.48 | -8.33 | 236.27 | -40.36 | 106.27 | 0.6698 | -767.2 | -564.7 | |
| 8.00 | 71.33 | 5.33 | 47.78 | -7.78 | 236.05 | -40.58 | 105.39 | 0.6707 | -1005.3 | -634.2 | |
| 0.00 | 1.73 | 0.00 | 1.15 | -7.19 | 236.12 | -40.51 | 104.55 | 0.6681 | 226.0 | 71.1 | |
| 2.45 | -37.00 | 1.64 | -37.00 | -7.20 | 235.79 | -40.84 | 104.46 | 0.6722 | -935.5 | 999999 | |
| 27.62 | -37.00 | 18.61 | -37.00 | -7.62 | 235.29 | -41.33 | 104.90 | 0.6797 | -868.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -6.84 | 235.38 | -41.25 | 103.81 | 0.6764 | -874.0 | -709.6 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -9.32 | 234.73 | -41.89 | 107.12 | 0.6918 | -673.0 | -608.1 | |
| 1.09 | 2.54 | 0.74 | 1.72 | -7.11 | 234.94 | -41.69 | 104.05 | 0.6826 | -702.9 | -469.9 | |
| 1.45 | 3.36 | 0.98 | 2.28 | -6.77 | 234.73 | -41.90 | 103.51 | 0.6843 | -869.0 | -719.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -6.59 | 234.75 | -41.88 | 103.25 | 0.6835 | -802.0 | -650.0 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -11.23 | 233.95 | -42.68 | 109.46 | 0.7075 | -602.0 | -540.2 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -9.94 | 234.13 | -42.49 | 107.76 | 0.7010 | -547.0 | -502.1 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -9.06 | 234.23 | -42.40 | 106.57 | 0.6970 | -623.0 | -449.3 | |
| 1.18 | 21.72 | 0.80 | 14.77 | -6.35 | 234.49 | -42.14 | 102.83 | 0.6862 | -923.0 | -517.0 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -6.73 | 234.40 | -42.22 | 103.34 | 0.6882 | -505.0 | -434.1 | |
| 9.18 | -49.00 | 6.25 | -49.00 | -6.14 | 234.30 | -42.33 | 102.47 | 0.6880 | -875.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -7.91 | 233.38 | -43.25 | 104.69 | 0.7039 | -566.0 | -470.2 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -9.83 | 232.88 | -43.75 | 107.16 | 0.7154 | -647.0 | -543.5 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -9.27 | 232.80 | -43.83 | 106.38 | 0.7147 | -522.0 | -471.7 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -7.18 | 233.05 | -43.58 | 103.58 | 0.7059 | -658.0 | -468.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
