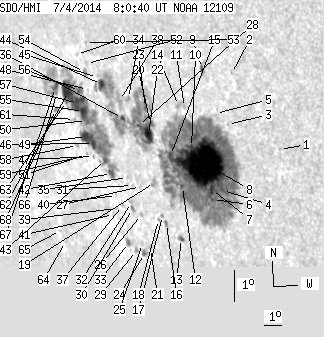

SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 241.71 | 1079.62 | 232.39 | 1025.80 | -7.70 | 219.10 | -57.53 | 101.13 | 0.8530 | 195.5 | -33.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.51 | -7.58 | 225.71 | -50.92 | 102.22 | 0.7896 | 482.0 | 411.7 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -5.32 | 223.64 | -52.99 | 99.02 | 0.8073 | 413.0 | 366.9 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -6.91 | 223.20 | -53.43 | 100.89 | 0.8141 | 704.0 | 616.3 | |
| 0.27 | 618.24 | 0.24 | 551.32 | -8.99 | 222.53 | -54.10 | 103.26 | 0.8241 | 835.3 | 207.4 | |
| 0.00 | 0.55 | 0.00 | 0.47 | -6.60 | 222.62 | -54.01 | 100.40 | 0.8193 | 235.0 | 334.7 | |
| 1.00 | -4.00 | 0.88 | -4.00 | -9.30 | 221.92 | -54.70 | 103.50 | 0.8305 | 573.1 | 999999 | |
| 3.00 | -4.00 | 2.65 | -4.00 | -8.99 | 221.94 | -54.69 | 103.13 | 0.8297 | 745.8 | 999999 | |
| 124.67 | -4.00 | 110.51 | -4.00 | -8.16 | 221.64 | -54.99 | 102.09 | 0.8313 | 999.3 | 999999 | |
| 0.00 | 4.82 | 0.00 | 4.17 | -5.23 | 222.14 | -54.49 | 98.67 | 0.8222 | -508.0 | -453.6 | |
| 0.27 | -4.00 | 0.24 | -4.00 | -7.72 | 221.13 | -55.50 | 101.47 | 0.8354 | 508.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -6.49 | 220.98 | -55.65 | 99.98 | 0.8350 | 362.0 | 346.9 | |
| 2.18 | -4.00 | 2.00 | -4.00 | -8.97 | 220.36 | -56.27 | 102.79 | 0.8445 | -219.8 | 999999 | |
| 1.45 | 3.18 | 1.37 | 2.99 | -10.61 | 219.86 | -56.77 | 104.60 | 0.8516 | 493.8 | 332.8 | |
| 0.00 | 3.18 | 0.00 | 2.87 | -6.44 | 220.65 | -55.97 | 99.87 | 0.8380 | 152.0 | 144.2 | |
| 2.45 | -4.00 | 2.27 | -4.00 | -8.03 | 219.90 | -56.73 | 101.60 | 0.8472 | 282.7 | 999999 | |
| 0.73 | 2.27 | 0.70 | 2.17 | -10.18 | 219.12 | -57.50 | 103.95 | 0.8574 | 272.8 | 215.2 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -9.94 | 218.96 | -57.67 | 103.64 | 0.8584 | 364.0 | 293.5 | |
| 0.00 | 1.18 | 0.00 | 1.14 | -10.08 | 218.69 | -57.94 | 103.74 | 0.8610 | 122.0 | 82.7 | |
| 0.00 | 4.45 | 0.00 | 4.28 | -8.92 | 218.77 | -57.86 | 102.43 | 0.8586 | -670.0 | -601.7 | |
| 3.36 | 167.83 | 3.19 | 164.25 | -7.08 | 218.95 | -57.68 | 100.33 | 0.8544 | 664.6 | -254.1 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -11.02 | 217.92 | -58.71 | 104.67 | 0.8690 | -551.0 | -486.7 | |
| 10.36 | -20.00 | 9.88 | -20.00 | -7.43 | 218.76 | -57.86 | 100.70 | 0.8566 | 529.5 | 999999 | |
| 2.18 | -20.00 | 2.07 | -20.00 | -6.59 | 218.76 | -57.87 | 99.73 | 0.8556 | 409.8 | 999999 | |
| 1.00 | 3.54 | 1.01 | 3.57 | -11.20 | 217.50 | -59.13 | 104.78 | 0.8728 | -681.6 | -609.2 | |
| 0.00 | 1.18 | 0.00 | 1.19 | -10.89 | 217.48 | -59.15 | 104.42 | 0.8724 | -282.0 | -291.8 | |
| 0.00 | 1.45 | 0.00 | 1.45 | -9.97 | 217.71 | -58.92 | 103.43 | 0.8692 | 30.0 | -45.2 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -9.08 | 217.89 | -58.73 | 102.46 | 0.8664 | -692.0 | -615.4 | |
| 1.09 | -20.00 | 1.06 | -20.00 | -7.18 | 218.23 | -58.40 | 100.32 | 0.8609 | 70.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.60 | -11.13 | 217.03 | -59.60 | 104.61 | 0.8765 | -695.0 | -605.6 | |
| 0.91 | 2.54 | 0.92 | 2.57 | -9.80 | 217.21 | -59.42 | 103.15 | 0.8732 | -574.0 | -484.3 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -9.08 | 217.41 | -59.21 | 102.36 | 0.8704 | -621.0 | -506.7 | |
| 0.00 | 1.36 | 0.00 | 1.38 | -9.62 | 217.20 | -59.43 | 102.94 | 0.8729 | -561.0 | -510.7 | |
| 1.36 | 3.63 | 1.41 | 3.76 | -10.90 | 216.61 | -60.02 | 104.27 | 0.8796 | -642.0 | -531.7 | |
| 0.00 | 3.00 | 0.00 | 2.93 | -6.36 | 217.80 | -58.83 | 99.32 | 0.8637 | -60.0 | -138.9 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -8.84 | 217.17 | -59.45 | 102.05 | 0.8721 | -574.0 | -574.3 | |
| 2.09 | -20.00 | 2.07 | -20.00 | -7.00 | 217.31 | -59.32 | 99.98 | 0.8687 | 95.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.93 | -9.74 | 216.61 | -60.02 | 102.97 | 0.8780 | -539.0 | -475.4 | |
| 0.00 | 8.27 | 0.00 | 8.21 | -6.45 | 217.24 | -59.39 | 99.34 | 0.8686 | -537.0 | -520.3 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -9.85 | 216.19 | -60.43 | 103.02 | 0.8815 | -478.0 | -446.3 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -9.44 | 216.32 | -60.31 | 102.58 | 0.8799 | -340.0 | -323.7 | |
| 0.00 | 1.27 | 0.00 | 1.34 | -10.05 | 215.94 | -60.69 | 103.20 | 0.8838 | -260.0 | -188.1 | |
| 3.73 | 183.73 | 3.86 | 195.94 | -8.76 | 216.20 | -60.43 | 101.80 | 0.8800 | -638.8 | -549.2 | |
| 2.73 | -42.00 | 2.84 | -42.00 | -8.34 | 215.94 | -60.69 | 101.28 | 0.8817 | -718.0 | 999999 | |
| 4.82 | -20.00 | 4.93 | -20.00 | -6.01 | 216.22 | -60.41 | 98.68 | 0.8768 | -793.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.12 | -5.80 | 216.00 | -60.63 | 98.42 | 0.8783 | -261.0 | -320.7 | |
| 5.45 | -42.00 | 5.80 | -42.00 | -7.88 | 215.29 | -61.34 | 100.65 | 0.8863 | -752.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.97 | -8.29 | 215.18 | -61.45 | 101.09 | 0.8877 | -320.0 | -283.0 | |
| 0.00 | 0.45 | 0.00 | 0.48 | -6.21 | 215.29 | -61.34 | 98.78 | 0.8846 | -471.0 | -413.6 | |
| 10.45 | -42.00 | 11.23 | -42.00 | -7.68 | 214.88 | -61.75 | 100.37 | 0.8893 | -695.3 | 999999 | |
| 3.45 | -42.00 | 3.69 | -42.00 | -7.18 | 215.01 | -61.62 | 99.83 | 0.8878 | -803.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.98 | -8.25 | 214.73 | -61.90 | 100.98 | 0.8911 | -272.0 | -248.1 | |
| 0.00 | 1.64 | 0.00 | 1.71 | -5.40 | 215.38 | -61.25 | 97.88 | 0.8831 | -281.0 | -339.2 | |
| 0.00 | 1.36 | 0.00 | 1.42 | -4.75 | 215.42 | -61.21 | 97.16 | 0.8821 | -497.0 | -451.4 | |
| 0.00 | 2.91 | 0.00 | 3.07 | -5.69 | 215.19 | -61.43 | 98.18 | 0.8848 | -623.0 | -498.3 | |
| 10.54 | -42.00 | 11.29 | -42.00 | -6.91 | 214.87 | -61.75 | 99.51 | 0.8886 | -835.5 | 999999 | |
| 3.18 | -42.00 | 3.41 | -42.00 | -6.26 | 214.75 | -61.87 | 98.77 | 0.8889 | -665.2 | 999999 | |
| 12.81 | -42.00 | 13.86 | -42.00 | -6.67 | 214.60 | -62.03 | 99.21 | 0.8905 | -752.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.70 | -7.99 | 214.20 | -62.43 | 100.62 | 0.8949 | -362.0 | -293.4 | |
| 0.00 | 0.91 | 0.00 | 1.01 | -8.37 | 214.03 | -62.60 | 101.02 | 0.8967 | -229.0 | -178.5 | |
| 0.00 | 0.82 | 0.00 | 0.87 | -5.15 | 214.77 | -61.86 | 97.53 | 0.8877 | -403.0 | -376.3 | |
| 0.00 | 1.54 | 0.00 | 1.70 | -7.19 | 214.21 | -62.42 | 99.73 | 0.8940 | -374.0 | -311.8 | |
| 19.72 | -42.00 | 21.72 | -42.00 | -6.33 | 214.01 | -62.62 | 98.75 | 0.8948 | -543.6 | 999999 | |
| 1.73 | -42.00 | 1.92 | -42.00 | -6.65 | 213.80 | -62.83 | 99.07 | 0.8967 | -151.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.98 | -11.08 | 212.31 | -64.32 | 103.71 | 0.9121 | -151.0 | -192.6 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -10.75 | 212.08 | -64.55 | 103.31 | 0.9133 | -185.0 | -201.0 | |
| 0.27 | 34.16 | 0.31 | 39.11 | -6.44 | 213.16 | -63.46 | 98.75 | 0.9013 | -297.7 | 112.4 | |
| 3.82 | -66.00 | 4.33 | -66.00 | -6.25 | 213.14 | -63.49 | 98.54 | 0.9013 | -352.2 | 999999 | |
| 0.64 | 2.00 | 0.73 | 2.29 | -6.94 | 212.97 | -63.66 | 99.28 | 0.9032 | -168.4 | -74.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
