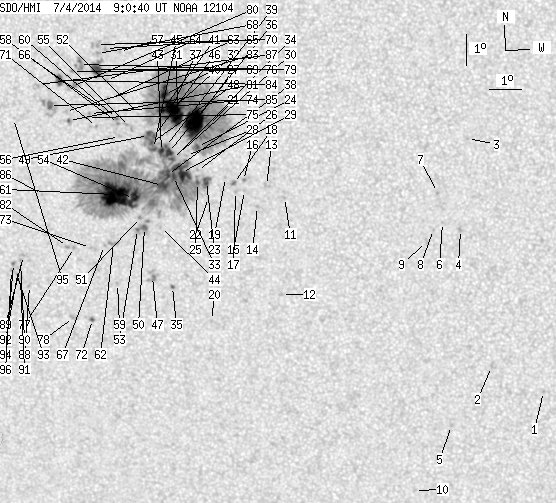

SDO HMI 2014-07-04 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 232.79 | 1259.92 | 120.29 | 652.18 | -11.57 | 268.47 | -7.61 | 152.99 | 0.2883 | 446.3 | 118.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.14 | 280.67 | 4.59 | 191.24 | 0.3894 | 825.0 | 613.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -18.31 | 278.97 | 2.89 | 187.44 | 0.3717 | 876.0 | 674.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -11.00 | 278.14 | 2.06 | 188.18 | 0.2492 | 874.0 | 773.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -13.88 | 277.94 | 1.86 | 186.12 | 0.2970 | 780.0 | 685.3 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -20.25 | 277.71 | 1.63 | 183.82 | 0.4009 | 764.0 | 616.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -13.65 | 277.38 | 1.30 | 184.33 | 0.2924 | 902.0 | 676.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.70 | 277.22 | 1.14 | 184.03 | 0.2762 | 742.0 | 635.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.87 | 277.09 | 1.01 | 183.34 | 0.2958 | 675.0 | 554.4 | |
| 0.00 | 2.64 | 0.00 | 1.37 | -14.26 | 276.87 | 0.79 | 182.56 | 0.3020 | 741.0 | 574.6 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -22.43 | 276.51 | 0.43 | 180.91 | 0.4348 | 732.0 | 524.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -12.86 | 272.43 | -3.65 | 167.37 | 0.2850 | 853.0 | 561.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.96 | 272.28 | -3.80 | 169.02 | 0.3361 | 787.0 | 570.6 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -12.48 | 271.87 | -4.21 | 165.17 | 0.2810 | 873.0 | 739.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.15 | 271.58 | -4.50 | 164.82 | 0.2931 | 834.0 | 626.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.64 | 271.18 | -4.90 | 163.03 | 0.2868 | 1045.0 | 830.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.32 | 271.16 | -4.92 | 162.61 | 0.2819 | 944.0 | 861.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.67 | 270.90 | -5.18 | 162.15 | 0.2888 | 844.0 | 509.8 | |
| 0.64 | 2.36 | 0.33 | 1.22 | -12.42 | 270.84 | -5.24 | 161.68 | 0.2850 | 1071.4 | 861.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.23 | 270.59 | -5.49 | 160.66 | 0.2834 | 923.0 | 758.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.81 | 270.02 | -6.06 | 163.56 | 0.3584 | 604.0 | 485.6 | |
| 1.27 | 453.13 | 0.65 | 232.33 | -10.59 | 270.10 | -5.98 | 156.76 | 0.2607 | 945.1 | 488.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -12.87 | 270.05 | -6.03 | 159.68 | 0.2965 | 619.0 | 392.7 | |
| 4.82 | 627.50 | 2.49 | 326.35 | -12.36 | 270.00 | -6.08 | 158.90 | 0.2889 | 1022.1 | -195.7 | |
| 2.00 | -21.00 | 1.03 | -21.00 | -11.26 | 269.74 | -6.34 | 156.55 | 0.2734 | 715.3 | 999999 | |
| 1.45 | -23.00 | 0.75 | -23.00 | -12.39 | 269.71 | -6.37 | 158.05 | 0.2911 | 795.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.01 | 269.72 | -6.36 | 157.57 | 0.2852 | 837.0 | 651.5 | |
| 39.89 | -21.00 | 20.47 | -21.00 | -10.50 | 269.66 | -6.42 | 155.12 | 0.2623 | 1440.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.54 | 269.39 | -6.69 | 155.84 | 0.2801 | 894.0 | 716.9 | |
| 17.17 | -23.00 | 8.88 | -23.00 | -12.08 | 269.22 | -6.86 | 156.09 | 0.2895 | 1079.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.48 | 269.14 | -6.94 | 154.95 | 0.2809 | 962.0 | 788.1 | |
| 10.45 | -21.00 | 5.37 | -21.00 | -10.38 | 269.14 | -6.94 | 153.14 | 0.2643 | 1282.7 | 999999 | |
| 24.35 | -21.00 | 12.49 | -21.00 | -10.03 | 269.02 | -7.06 | 152.13 | 0.2601 | 1531.1 | 999999 | |
| 3.54 | -23.00 | 1.84 | -23.00 | -12.21 | 268.96 | -7.12 | 155.49 | 0.2932 | 706.4 | 999999 | |
| 2.00 | -23.00 | 1.03 | -23.00 | -11.67 | 268.95 | -7.13 | 154.64 | 0.2852 | 994.1 | 999999 | |
| 0.55 | 2.00 | 0.29 | 1.06 | -15.72 | 268.82 | -7.26 | 159.42 | 0.3478 | 886.8 | 737.8 | |
| 4.54 | -23.00 | 2.35 | -23.00 | -11.45 | 268.83 | -7.25 | 153.92 | 0.2828 | 1235.4 | 999999 | |
| 2.54 | -21.00 | 1.31 | -21.00 | -10.35 | 268.82 | -7.26 | 152.06 | 0.2663 | 1011.9 | 999999 | |
| 4.00 | -23.00 | 2.07 | -23.00 | -12.14 | 268.78 | -7.30 | 154.84 | 0.2936 | 784.9 | 999999 | |
| 0.27 | -23.00 | 0.14 | -23.00 | -11.26 | 268.74 | -7.34 | 153.34 | 0.2806 | 1327.0 | 999999 | |
| 10.90 | -21.00 | 5.59 | -21.00 | -9.63 | 268.75 | -7.33 | 150.46 | 0.2563 | 1329.0 | 999999 | |
| 5.27 | -21.00 | 2.71 | -21.00 | -10.10 | 268.67 | -7.41 | 151.11 | 0.2638 | 1156.2 | 999999 | |
| 6.54 | -23.00 | 3.40 | -23.00 | -12.49 | 268.61 | -7.47 | 154.85 | 0.3000 | 48.8 | 999999 | |
| 2.82 | -23.00 | 1.45 | -23.00 | -11.42 | 268.61 | -7.47 | 153.20 | 0.2839 | 1015.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.83 | 268.50 | -7.58 | 156.38 | 0.3209 | -886.0 | -644.4 | |
| 2.54 | -23.00 | 1.31 | -23.00 | -11.33 | 268.36 | -7.72 | 152.29 | 0.2845 | 746.2 | 999999 | |
| 1.82 | -23.00 | 0.94 | -23.00 | -10.95 | 268.37 | -7.71 | 151.67 | 0.2788 | 1284.4 | 999999 | |
| 0.00 | 8.72 | 0.00 | 4.60 | -15.40 | 268.19 | -7.89 | 157.46 | 0.3467 | 911.0 | 693.3 | |
| 2.64 | -23.00 | 1.36 | -23.00 | -11.14 | 268.30 | -7.78 | 151.79 | 0.2821 | 957.4 | 999999 | |
| 4.27 | -23.00 | 2.20 | -23.00 | -10.92 | 268.21 | -7.87 | 151.14 | 0.2796 | 939.5 | 999999 | |
| 1.82 | 13.18 | 0.95 | 6.90 | -13.83 | 268.00 | -8.08 | 154.99 | 0.3244 | -1111.0 | -830.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -13.51 | 267.88 | -8.20 | 154.24 | 0.3205 | -1157.0 | -992.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -10.23 | 267.92 | -8.16 | 148.96 | 0.2721 | 376.0 | 291.2 | |
| 0.55 | -50.00 | 0.29 | -50.00 | -13.90 | 267.77 | -8.31 | 154.48 | 0.3270 | -1099.8 | 999999 | |
| 12.36 | -23.00 | 6.44 | -23.00 | -12.91 | 267.68 | -8.40 | 152.82 | 0.3131 | -1342.2 | 999999 | |
| 0.00 | 4.63 | 0.00 | 2.39 | -10.64 | 267.63 | -8.45 | 148.85 | 0.2805 | 721.0 | 668.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.96 | 267.30 | -8.78 | 148.49 | 0.2878 | 674.0 | 473.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.30 | 267.38 | -8.70 | 143.05 | 0.2502 | 888.0 | 679.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.55 | 267.29 | -8.79 | 147.66 | 0.2822 | 644.0 | 498.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.63 | 267.06 | -9.02 | 154.92 | 0.3577 | -962.0 | -734.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.39 | 267.23 | -8.85 | 147.18 | 0.2805 | 1016.0 | 827.9 | |
| 45.61 | -23.00 | 23.81 | -23.00 | -12.79 | 267.08 | -9.00 | 151.01 | 0.3160 | -1349.2 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.39 | -14.35 | 266.99 | -9.09 | 153.06 | 0.3394 | -959.0 | -818.4 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.80 | 266.99 | -9.09 | 145.29 | 0.2745 | 948.0 | 838.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.21 | 266.95 | -9.13 | 143.86 | 0.2668 | 894.0 | 650.7 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -8.21 | 266.94 | -9.14 | 141.48 | 0.2535 | 990.0 | 787.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.11 | 266.86 | -9.22 | 145.55 | 0.2801 | 924.0 | 661.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.42 | 266.70 | -9.38 | 152.43 | 0.3425 | -808.0 | -648.8 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -8.37 | 266.69 | -9.39 | 141.11 | 0.2583 | 938.0 | 834.7 | |
| 7.63 | 15.08 | 3.92 | 7.75 | -8.86 | 266.64 | -9.44 | 142.18 | 0.2653 | 1184.5 | 847.7 | |
| 0.00 | 5.63 | 0.00 | 2.89 | -8.09 | 266.66 | -9.42 | 140.34 | 0.2549 | 869.0 | 690.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.65 | 266.59 | -9.49 | 145.86 | 0.2900 | -764.0 | -566.5 | |
| 0.82 | 2.00 | 0.44 | 1.07 | -16.81 | 266.20 | -9.88 | 154.32 | 0.3808 | -993.2 | -786.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.49 | 266.25 | -9.83 | 151.41 | 0.3470 | -690.0 | -586.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.24 | 266.38 | -9.70 | 144.47 | 0.2864 | 901.0 | 739.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.37 | 266.32 | -9.76 | 144.54 | 0.2888 | 775.0 | 554.4 | |
| 0.00 | 8.18 | 0.00 | 4.20 | -8.71 | 266.12 | -9.96 | 140.30 | 0.2689 | 896.0 | 905.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.49 | 265.74 | -10.34 | 150.19 | 0.3511 | -966.0 | -772.5 | |
| 0.00 | 4.09 | 0.00 | 2.19 | -16.75 | 265.59 | -10.49 | 152.89 | 0.3843 | -780.0 | -675.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.93 | 265.89 | -10.19 | 140.20 | 0.2742 | 869.0 | 705.3 | |
| 0.00 | 5.72 | 0.00 | 2.95 | -9.40 | 265.85 | -10.23 | 141.16 | 0.2807 | 775.0 | 829.5 | |
| 0.64 | 2.54 | 0.33 | 1.32 | -10.47 | 265.72 | -10.36 | 143.12 | 0.2961 | 776.3 | 435.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -14.46 | 265.52 | -10.57 | 149.62 | 0.3525 | -868.0 | -714.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.19 | 265.63 | -10.45 | 142.30 | 0.2932 | 811.0 | 693.4 | |
| 4.63 | 6.72 | 2.39 | 3.47 | -9.22 | 265.47 | -10.61 | 139.74 | 0.2823 | 983.2 | 767.5 | |
| 2.45 | 16.08 | 1.27 | 8.34 | -10.00 | 265.13 | -10.95 | 140.61 | 0.2960 | 1133.6 | 737.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -12.81 | 264.80 | -11.28 | 145.26 | 0.3363 | -841.0 | -737.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -9.35 | 264.78 | -11.30 | 138.24 | 0.2916 | 873.0 | 736.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -15.73 | 264.22 | -11.86 | 148.56 | 0.3808 | -816.0 | -698.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.76 | 264.09 | -11.99 | 146.84 | 0.3690 | -910.0 | -719.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.92 | 263.98 | -12.10 | 146.86 | 0.3721 | -1076.0 | -867.2 | |
| 0.00 | 2.54 | 0.00 | 1.36 | -15.50 | 263.94 | -12.14 | 147.65 | 0.3802 | -711.0 | -633.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.21 | 263.90 | -12.18 | 147.12 | 0.3767 | -596.0 | -586.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.34 | 263.82 | -12.26 | 147.16 | 0.3791 | -688.0 | -527.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.02 | 263.75 | -12.33 | 146.51 | 0.3755 | -937.0 | -730.8 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.42 | 263.98 | -12.10 | 138.70 | 0.3137 | 597.0 | 495.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.25 | 263.67 | -12.41 | 146.69 | 0.3792 | -708.0 | -516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
