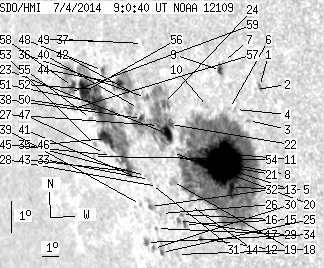

SDO HMI 2014-07-04 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 218.70 | 1103.70 | 206.30 | 1032.55 | -7.75 | 219.12 | -56.96 | 101.29 | 0.8479 | 216.9 | -32.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.64 | -5.74 | 223.99 | -52.09 | 99.70 | 0.7986 | 673.0 | 536.0 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -5.84 | 223.78 | -52.30 | 99.79 | 0.8010 | 421.0 | 330.0 | |
| 0.00 | 1.64 | 0.00 | 1.37 | -6.82 | 223.28 | -52.80 | 100.90 | 0.8076 | 680.0 | 572.8 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -6.51 | 222.66 | -53.42 | 100.40 | 0.8134 | 310.0 | 313.7 | |
| 5.09 | 627.32 | 4.43 | 551.67 | -8.96 | 221.98 | -54.10 | 103.22 | 0.8240 | 763.1 | 220.0 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -6.49 | 222.35 | -53.73 | 100.32 | 0.8164 | 346.0 | 298.5 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -5.05 | 222.24 | -53.84 | 98.55 | 0.8154 | -525.0 | -574.3 | |
| 111.12 | -5.00 | 97.18 | -5.00 | -8.22 | 221.66 | -54.42 | 102.28 | 0.8259 | 982.0 | 999999 | |
| 2.45 | 5.54 | 2.10 | 4.75 | -5.33 | 222.05 | -54.03 | 98.86 | 0.8178 | -595.9 | -419.9 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -6.48 | 221.18 | -54.90 | 100.10 | 0.8278 | 319.0 | 309.9 | |
| 1.54 | -5.00 | 1.39 | -5.00 | -7.90 | 220.54 | -55.54 | 101.68 | 0.8360 | 245.1 | 999999 | |
| 1.27 | 2.18 | 1.18 | 2.02 | -10.65 | 219.87 | -56.21 | 104.76 | 0.8467 | 477.6 | 385.1 | |
| 1.82 | -5.00 | 1.66 | -5.00 | -8.12 | 220.00 | -56.08 | 101.83 | 0.8414 | 269.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -9.63 | 219.58 | -56.50 | 103.51 | 0.8476 | -254.0 | -227.9 | |
| 1.36 | 3.27 | 1.29 | 3.08 | -10.25 | 219.07 | -57.01 | 104.13 | 0.8531 | 295.1 | 224.0 | |
| 0.45 | 1.45 | 0.43 | 1.37 | -9.94 | 218.99 | -57.09 | 103.75 | 0.8534 | 405.0 | 316.4 | |
| 1.09 | 2.54 | 1.04 | 2.42 | -10.14 | 218.76 | -57.32 | 103.94 | 0.8557 | 184.2 | 66.2 | |
| 0.00 | 1.91 | 0.00 | 1.85 | -11.22 | 218.37 | -57.71 | 105.10 | 0.8608 | -123.0 | -119.1 | |
| 0.00 | 6.00 | 0.00 | 5.67 | -8.92 | 218.74 | -57.34 | 102.53 | 0.8541 | -644.0 | -569.8 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -8.01 | 218.95 | -57.13 | 101.51 | 0.8508 | -428.0 | -382.6 | |
| 0.00 | 0.73 | 0.00 | 0.68 | -8.14 | 218.87 | -57.21 | 101.64 | 0.8518 | -468.0 | -403.4 | |
| 2.82 | 132.02 | 2.62 | 126.06 | -7.14 | 219.02 | -57.06 | 100.51 | 0.8490 | 732.2 | -149.3 | |
| 12.18 | -22.00 | 11.44 | -22.00 | -7.43 | 218.73 | -57.35 | 100.80 | 0.8520 | 461.6 | 999999 | |
| 2.27 | -22.00 | 2.13 | -22.00 | -6.50 | 218.74 | -57.34 | 99.72 | 0.8507 | 392.5 | 999999 | |
| 1.00 | 6.18 | 0.99 | 6.13 | -11.20 | 217.43 | -58.65 | 104.88 | 0.8688 | -660.7 | -462.0 | |
| 0.00 | 1.54 | 0.00 | 1.51 | -9.96 | 217.81 | -58.27 | 103.55 | 0.8637 | -237.0 | -177.2 | |
| 1.18 | -22.00 | 1.12 | -22.00 | -7.20 | 218.32 | -57.76 | 100.46 | 0.8554 | 174.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -9.12 | 217.81 | -58.27 | 102.58 | 0.8625 | -722.0 | -575.3 | |
| 0.00 | 1.27 | 0.00 | 1.26 | -10.45 | 217.37 | -58.71 | 104.02 | 0.8682 | 212.0 | 105.8 | |
| 0.00 | 1.82 | 0.00 | 1.83 | -11.10 | 216.98 | -59.10 | 104.68 | 0.8724 | -669.0 | -562.6 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -9.08 | 217.47 | -58.61 | 102.47 | 0.8654 | -608.0 | -591.0 | |
| 0.91 | 5.63 | 0.90 | 5.58 | -9.77 | 217.21 | -58.87 | 103.22 | 0.8685 | -617.2 | -480.3 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -8.92 | 217.39 | -58.69 | 102.28 | 0.8658 | -294.0 | -263.1 | |
| 1.27 | 3.54 | 1.29 | 3.60 | -10.93 | 216.61 | -59.47 | 104.41 | 0.8752 | -675.5 | -528.0 | |
| 0.00 | 0.82 | 0.00 | 0.81 | -8.81 | 217.18 | -58.90 | 102.11 | 0.8675 | -458.0 | -503.7 | |
| 0.00 | 3.73 | 0.00 | 3.59 | -6.37 | 217.72 | -58.36 | 99.40 | 0.8596 | -296.0 | -197.4 | |
| 0.00 | 1.18 | 0.00 | 1.13 | -4.70 | 217.81 | -58.27 | 97.48 | 0.8569 | -507.0 | -347.0 | |
| 2.18 | -22.00 | 2.13 | -22.00 | -7.03 | 217.35 | -58.73 | 100.11 | 0.8636 | 113.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.19 | -9.74 | 216.61 | -59.47 | 103.07 | 0.8735 | -531.0 | -457.5 | |
| 0.00 | 4.72 | 0.00 | 4.62 | -6.73 | 217.24 | -58.84 | 99.74 | 0.8643 | -473.0 | -329.5 | |
| 0.00 | 0.64 | 0.00 | 0.64 | -8.90 | 216.61 | -59.48 | 102.11 | 0.8724 | -508.0 | -481.9 | |
| 0.00 | 5.27 | 0.00 | 5.16 | -6.30 | 217.14 | -58.94 | 99.23 | 0.8646 | -513.0 | -479.0 | |
| 4.54 | 192.36 | 4.63 | 201.63 | -8.73 | 216.22 | -59.86 | 101.86 | 0.8754 | -673.4 | -541.5 | |
| 3.82 | 33.26 | 3.84 | 33.20 | -6.01 | 216.22 | -59.86 | 98.76 | 0.8722 | -839.2 | -576.6 | |
| 0.00 | 0.82 | 0.00 | 0.86 | -8.28 | 215.21 | -60.87 | 101.19 | 0.8831 | -353.0 | -326.2 | |
| 14.63 | -43.00 | 15.39 | -43.00 | -7.77 | 215.02 | -61.06 | 100.58 | 0.8840 | -727.1 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.68 | -8.24 | 214.77 | -61.31 | 101.07 | 0.8865 | -274.0 | -240.0 | |
| 1.54 | 3.36 | 1.60 | 3.48 | -5.65 | 215.22 | -60.86 | 98.22 | 0.8801 | -521.8 | -410.5 | |
| 0.00 | 0.45 | 0.00 | 0.47 | -4.75 | 215.37 | -60.71 | 97.22 | 0.8780 | -499.0 | -463.4 | |
| 7.91 | -43.00 | 8.33 | -43.00 | -6.91 | 214.84 | -61.24 | 99.58 | 0.8845 | -840.1 | 999999 | |
| 11.09 | -43.00 | 11.78 | -43.00 | -6.67 | 214.57 | -61.51 | 99.28 | 0.8864 | -755.2 | 999999 | |
| 2.45 | -43.00 | 2.59 | -43.00 | -6.27 | 214.66 | -61.42 | 98.84 | 0.8853 | -706.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.06 | -7.99 | 214.18 | -61.90 | 100.70 | 0.8909 | -366.0 | -276.3 | |
| 0.00 | 1.36 | 0.00 | 1.48 | -8.38 | 214.01 | -62.07 | 101.10 | 0.8926 | -201.0 | -177.6 | |
| 0.00 | 1.82 | 0.00 | 1.96 | -7.19 | 214.12 | -61.96 | 99.80 | 0.8905 | -360.0 | -286.1 | |
| 16.36 | -43.00 | 17.73 | -43.00 | -6.37 | 213.91 | -62.17 | 98.85 | 0.8913 | -516.9 | 999999 | |
| 0.82 | 1.91 | 0.92 | 2.14 | -6.94 | 213.04 | -63.04 | 99.36 | 0.8985 | -162.4 | -68.7 | |
| 5.09 | 33.16 | 5.66 | 37.18 | -6.25 | 213.13 | -62.95 | 98.62 | 0.8972 | -350.1 | 114.6 | |
| 0.45 | -58.00 | 0.51 | -58.00 | -6.45 | 212.88 | -63.20 | 98.80 | 0.8993 | -56.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
