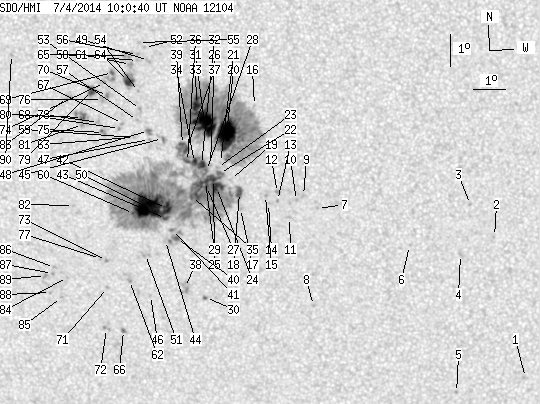

SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201.88 | 1259.08 | 104.13 | 650.72 | -11.54 | 268.38 | -7.15 | 154.41 | 0.2842 | 462.8 | 111.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.36 | -18.31 | 279.04 | 3.51 | 188.99 | 0.3731 | 709.0 | 660.0 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -13.75 | 277.99 | 2.46 | 188.12 | 0.2961 | 867.0 | 738.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.73 | 277.23 | 1.70 | 186.00 | 0.2776 | 880.0 | 655.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.32 | 276.92 | 1.39 | 184.47 | 0.3037 | 886.0 | 649.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.79 | 276.82 | 1.29 | 183.26 | 0.3771 | 842.0 | 672.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.03 | 275.32 | -0.21 | 179.31 | 0.2979 | 273.0 | 177.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.85 | 272.45 | -3.09 | 169.27 | 0.2830 | 880.0 | 754.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.96 | 272.27 | -3.26 | 170.55 | 0.3345 | 810.0 | 636.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -12.44 | 272.01 | -3.52 | 167.49 | 0.2777 | 889.0 | 728.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -12.60 | 271.79 | -3.74 | 166.86 | 0.2812 | 892.0 | 752.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -13.14 | 271.56 | -3.97 | 166.55 | 0.2909 | 892.0 | 583.4 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -12.35 | 271.20 | -4.33 | 164.63 | 0.2795 | 1075.0 | 918.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.60 | 271.20 | -4.33 | 164.86 | 0.2836 | 883.0 | 674.6 | |
| 0.00 | 0.55 | 0.00 | 0.28 | -12.70 | 270.91 | -4.62 | 164.02 | 0.2865 | 752.0 | 677.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.45 | 270.82 | -4.71 | 163.47 | 0.2828 | 971.0 | 846.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.62 | 270.53 | -5.00 | 158.85 | 0.2391 | 200.0 | 168.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.86 | 270.03 | -5.50 | 161.35 | 0.2935 | 577.0 | 491.6 | |
| 4.63 | 638.19 | 2.39 | 331.50 | -12.35 | 270.01 | -5.52 | 160.70 | 0.2855 | 1023.0 | -192.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.94 | 269.74 | -5.79 | 159.31 | 0.2807 | 729.0 | 625.7 | |
| 42.61 | 451.48 | 21.85 | 231.24 | -10.53 | 269.64 | -5.89 | 156.99 | 0.2591 | 1383.2 | 488.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -11.41 | 269.44 | -6.09 | 157.59 | 0.2742 | 748.0 | 622.2 | |
| 1.82 | -18.00 | 0.94 | -18.00 | -11.76 | 269.40 | -6.13 | 157.95 | 0.2798 | 1085.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.57 | 269.34 | -6.19 | 157.50 | 0.2772 | 945.0 | 740.9 | |
| 8.99 | -18.00 | 4.65 | -18.00 | -12.20 | 269.29 | -6.24 | 158.21 | 0.2873 | 1063.0 | 999999 | |
| 3.45 | -18.00 | 1.78 | -18.00 | -11.95 | 269.21 | -6.32 | 157.59 | 0.2840 | 1176.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.51 | 269.12 | -6.41 | 156.70 | 0.2777 | 933.0 | 733.2 | |
| 3.09 | -18.00 | 1.60 | -18.00 | -12.17 | 268.98 | -6.55 | 157.19 | 0.2889 | 770.7 | 999999 | |
| 0.64 | -18.00 | 0.33 | -18.00 | -11.66 | 268.99 | -6.54 | 156.51 | 0.2810 | 1083.7 | 999999 | |
| 2.45 | -18.00 | 1.27 | -18.00 | -12.01 | 268.95 | -6.58 | 156.88 | 0.2866 | 923.5 | 999999 | |
| 0.64 | 2.00 | 0.34 | 1.05 | -15.71 | 268.84 | -6.69 | 160.92 | 0.3445 | 837.1 | 642.0 | |
| 39.98 | -20.00 | 20.49 | -20.00 | -10.16 | 268.97 | -6.56 | 154.03 | 0.2581 | 1393.3 | 999999 | |
| 5.36 | -18.00 | 2.76 | -18.00 | -11.48 | 268.84 | -6.69 | 155.75 | 0.2791 | 1189.3 | 999999 | |
| 9.27 | -20.00 | 4.74 | -20.00 | -9.59 | 268.73 | -6.80 | 152.20 | 0.2515 | 1335.5 | 999999 | |
| 3.82 | -18.00 | 1.97 | -18.00 | -11.41 | 268.62 | -6.91 | 154.96 | 0.2797 | 997.8 | 999999 | |
| 1.45 | -18.00 | 0.75 | -18.00 | -12.49 | 268.50 | -7.03 | 156.16 | 0.2969 | 320.6 | 999999 | |
| 2.00 | -18.00 | 1.03 | -18.00 | -11.38 | 268.41 | -7.13 | 154.22 | 0.2808 | 774.2 | 999999 | |
| 2.82 | -18.00 | 1.45 | -18.00 | -11.01 | 268.38 | -7.15 | 153.54 | 0.2753 | 1177.3 | 999999 | |
| 0.00 | 8.81 | 0.00 | 4.65 | -15.39 | 268.18 | -7.35 | 158.86 | 0.3433 | 718.0 | 643.9 | |
| 2.09 | -18.00 | 1.08 | -18.00 | -10.85 | 268.26 | -7.27 | 152.89 | 0.2739 | 1040.8 | 999999 | |
| 1.54 | 9.27 | 0.81 | 4.84 | -13.83 | 267.99 | -7.55 | 156.46 | 0.3207 | -1141.6 | -902.2 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -13.54 | 267.87 | -7.66 | 155.76 | 0.3172 | -1179.0 | -906.1 | |
| 7.63 | -18.00 | 3.97 | -18.00 | -12.87 | 267.70 | -7.83 | 154.37 | 0.3083 | -1438.1 | 999999 | |
| 0.27 | -18.00 | 0.14 | -18.00 | -13.19 | 267.66 | -7.87 | 154.70 | 0.3134 | -1050.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.89 | 267.64 | -7.90 | 155.59 | 0.3241 | -620.0 | -467.7 | |
| 0.00 | 5.27 | 0.00 | 2.72 | -10.66 | 267.64 | -7.89 | 150.62 | 0.2761 | 945.0 | 635.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.66 | 267.09 | -8.44 | 156.37 | 0.3542 | -865.0 | -624.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.70 | 267.23 | -8.30 | 149.43 | 0.2800 | 830.0 | 639.8 | |
| 0.64 | 4.00 | 0.33 | 2.06 | -10.42 | 267.21 | -8.32 | 148.83 | 0.2762 | 1007.0 | 705.2 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -8.23 | 267.27 | -8.27 | 144.31 | 0.2449 | 878.0 | 722.0 | |
| 41.07 | -18.00 | 21.41 | -18.00 | -12.85 | 267.10 | -8.43 | 152.65 | 0.3124 | -1364.8 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.34 | -14.34 | 266.98 | -8.55 | 154.45 | 0.3354 | -902.0 | -721.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.83 | 267.15 | -8.38 | 142.93 | 0.2406 | 958.0 | 741.7 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.76 | 266.98 | -8.55 | 146.81 | 0.2690 | 980.0 | 767.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.20 | 266.93 | -8.60 | 145.47 | 0.2616 | 932.0 | 735.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.67 | 266.97 | -8.56 | 141.93 | 0.2404 | 853.0 | 679.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.05 | 266.93 | -8.60 | 142.76 | 0.2458 | 904.0 | 743.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.11 | 266.88 | -8.66 | 147.20 | 0.2748 | 960.0 | 647.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.23 | 266.92 | -8.61 | 143.20 | 0.2484 | 996.0 | 771.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.64 | 266.77 | -8.77 | 147.92 | 0.2833 | -751.0 | -567.0 | |
| 0.27 | -18.00 | 0.14 | -18.00 | -13.04 | 266.65 | -8.88 | 151.71 | 0.3187 | -858.0 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.86 | -8.36 | 266.70 | -8.83 | 142.81 | 0.2523 | 1057.0 | 808.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -15.18 | 266.44 | -9.09 | 154.17 | 0.3516 | -823.0 | -698.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.64 | 266.61 | -8.92 | 147.47 | 0.2847 | -724.0 | -551.0 | |
| 6.63 | 13.63 | 3.40 | 6.99 | -8.89 | 266.63 | -8.90 | 143.83 | 0.2603 | 1174.5 | 885.9 | |
| 0.00 | 4.09 | 0.00 | 2.09 | -8.08 | 266.65 | -8.88 | 141.95 | 0.2492 | 778.0 | 717.5 | |
| 0.73 | 2.27 | 0.39 | 1.21 | -16.80 | 266.17 | -9.36 | 155.49 | 0.3771 | -974.8 | -775.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.20 | 266.40 | -9.13 | 146.00 | 0.2805 | 787.0 | 580.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.36 | 266.30 | -9.23 | 146.04 | 0.2836 | 825.0 | 604.5 | |
| 1.09 | 6.81 | 0.56 | 3.50 | -8.61 | 266.13 | -9.40 | 141.70 | 0.2616 | 1015.6 | 842.6 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -9.33 | 265.96 | -9.57 | 142.85 | 0.2730 | 1313.0 | 993.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.41 | 265.72 | -9.81 | 152.74 | 0.3602 | -912.0 | -634.8 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -16.74 | 265.62 | -9.91 | 154.18 | 0.3800 | -864.0 | -776.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.55 | 265.73 | -9.80 | 151.58 | 0.3476 | -851.0 | -727.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.93 | 265.88 | -9.66 | 141.69 | 0.2685 | 920.0 | 730.9 | |
| 0.00 | 3.27 | 0.00 | 1.69 | -10.49 | 265.80 | -9.73 | 144.87 | 0.2902 | 469.0 | 364.1 | |
| 0.00 | 2.82 | 0.00 | 1.45 | -9.46 | 265.80 | -9.73 | 142.68 | 0.2763 | 805.0 | 610.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.48 | 265.54 | -9.99 | 151.03 | 0.3482 | -911.0 | -713.1 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -10.18 | 265.65 | -9.88 | 143.82 | 0.2874 | 787.0 | 715.3 | |
| 4.45 | 7.36 | 2.29 | 3.79 | -9.18 | 265.46 | -10.07 | 141.10 | 0.2761 | 986.4 | 737.2 | |
| 2.45 | 11.54 | 1.27 | 5.97 | -10.03 | 265.15 | -10.38 | 142.15 | 0.2904 | 1091.3 | 794.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.25 | 265.14 | -10.39 | 142.60 | 0.2934 | 725.0 | 624.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -12.80 | 264.76 | -10.77 | 146.48 | 0.3315 | -941.0 | -785.1 | |
| 0.00 | 3.54 | 0.00 | 1.83 | -9.41 | 264.70 | -10.83 | 139.58 | 0.2872 | 808.0 | 699.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.10 | 264.45 | -11.08 | 149.38 | 0.3658 | -650.0 | -539.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.75 | 264.22 | -11.31 | 149.79 | 0.3766 | -838.0 | -738.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.79 | 264.05 | -11.48 | 148.01 | 0.3648 | -769.0 | -677.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.98 | 263.98 | -11.56 | 148.14 | 0.3681 | -971.0 | -824.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.59 | 263.88 | -11.66 | 148.81 | 0.3773 | -702.0 | -609.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -15.05 | 263.75 | -11.78 | 147.73 | 0.3710 | -955.0 | -766.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.08 | 262.98 | -12.55 | 132.15 | 0.2915 | -820.0 | -681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
