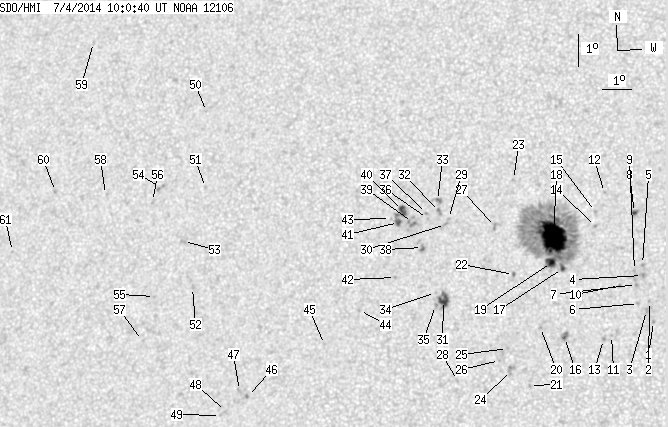

SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.32 | 407.60 | 43.60 | 214.38 | 15.26 | 260.45 | -15.08 | 49.40 | 0.3304 | -488.1 | -195.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.03 | 265.13 | -10.40 | 45.78 | 0.2465 | -976.0 | -768.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.65 | 264.98 | -10.55 | 44.39 | 0.2555 | -837.0 | -699.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 13.37 | 264.90 | -10.64 | 45.41 | 0.2533 | -884.0 | -740.6 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 14.45 | 264.72 | -10.81 | 42.88 | 0.2682 | -1002.0 | -845.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.79 | 264.70 | -10.83 | 42.04 | 0.2725 | -838.0 | -724.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.58 | 264.63 | -10.90 | 45.49 | 0.2589 | -857.0 | -627.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.17 | 264.54 | -10.99 | 44.09 | 0.2669 | -1024.0 | -854.4 | |
| 1.45 | 2.73 | 0.75 | 1.41 | 16.41 | 264.36 | -11.17 | 39.05 | 0.2964 | -868.4 | -610.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.60 | 264.45 | -11.08 | 43.16 | 0.2730 | -763.0 | -624.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.13 | 264.00 | -11.54 | 45.54 | 0.2729 | -804.0 | -716.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 12.58 | 263.81 | -11.72 | 50.44 | 0.2582 | -860.0 | -752.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.03 | 263.34 | -12.19 | 40.09 | 0.3148 | 775.0 | 558.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.46 | 263.56 | -11.97 | 51.40 | 0.2602 | -956.0 | -789.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 15.96 | 263.12 | -12.41 | 42.99 | 0.3044 | 782.0 | 581.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.43 | 263.09 | -12.44 | 41.98 | 0.3103 | -841.0 | -548.0 | |
| 0.64 | 4.72 | 0.33 | 2.44 | 12.50 | 262.31 | -13.22 | 53.91 | 0.2774 | -1131.1 | -800.4 | |
| 1.82 | 286.39 | 0.94 | 149.65 | 14.64 | 262.13 | -13.40 | 48.35 | 0.3014 | -1032.0 | -332.0 | |
| 59.42 | -17.00 | 31.02 | -17.00 | 15.63 | 261.77 | -13.76 | 46.62 | 0.3165 | -1393.4 | 999999 | |
| 6.54 | -17.00 | 3.41 | -17.00 | 14.82 | 261.76 | -13.77 | 48.63 | 0.3079 | -1102.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 12.80 | 261.53 | -14.00 | 54.55 | 0.2910 | -815.0 | -670.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.01 | 261.27 | -14.26 | 60.44 | 0.2793 | -786.0 | -625.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 14.44 | 260.55 | -14.98 | 51.90 | 0.3195 | -977.0 | -763.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 17.40 | 260.33 | -15.21 | 45.40 | 0.3530 | -550.0 | -386.2 | |
| 0.00 | 5.72 | 0.00 | 2.96 | 11.47 | 260.67 | -14.87 | 60.00 | 0.2916 | -536.0 | -720.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.14 | 260.50 | -15.03 | 58.25 | 0.2995 | -802.0 | -587.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 11.77 | 260.26 | -15.27 | 59.72 | 0.2998 | -784.0 | -601.1 | |
| 0.00 | 3.09 | 0.00 | 1.63 | 15.92 | 259.85 | -15.68 | 49.52 | 0.3431 | 744.0 | 650.9 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 11.13 | 258.94 | -16.59 | 63.46 | 0.3145 | -766.0 | -469.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 16.15 | 258.28 | -17.25 | 51.56 | 0.3653 | 612.0 | 515.9 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 15.96 | 258.20 | -17.34 | 52.11 | 0.3645 | 961.0 | 727.8 | |
| 6.91 | 12.45 | 3.64 | 6.56 | 13.60 | 258.32 | -17.21 | 57.60 | 0.3421 | -1105.7 | -817.3 | |
| 0.00 | 2.73 | 0.00 | 1.45 | 16.36 | 257.96 | -17.57 | 51.57 | 0.3714 | 757.0 | 670.8 | |
| 0.00 | 4.00 | 0.00 | 2.14 | 16.71 | 257.86 | -17.67 | 50.97 | 0.3759 | 793.0 | 656.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 13.84 | 258.04 | -17.49 | 57.39 | 0.3480 | -243.0 | -195.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.44 | 258.07 | -17.46 | 58.36 | 0.3443 | -662.0 | -593.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.14 | 257.58 | -17.95 | 52.63 | 0.3741 | 781.0 | 685.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.30 | 257.53 | -18.00 | 52.35 | 0.3762 | 688.0 | 630.2 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 15.23 | 257.50 | -18.04 | 54.80 | 0.3671 | 962.0 | 918.9 | |
| 0.00 | 6.45 | 0.00 | 3.45 | 16.01 | 257.09 | -18.44 | 53.62 | 0.3793 | 925.0 | 905.3 | |
| 4.54 | 13.45 | 2.44 | 7.22 | 16.38 | 256.72 | -18.81 | 53.32 | 0.3874 | 959.4 | 747.6 | |
| 2.00 | -40.00 | 1.07 | -40.00 | 16.00 | 256.62 | -18.91 | 54.28 | 0.3853 | 955.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 14.28 | 256.68 | -18.85 | 58.12 | 0.3703 | 829.0 | 685.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 16.12 | 256.34 | -19.19 | 54.39 | 0.3900 | 487.0 | 431.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 13.24 | 255.57 | -19.96 | 61.93 | 0.3782 | -725.0 | -568.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.17 | 254.49 | -21.04 | 65.60 | 0.3870 | 723.0 | 522.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 10.52 | 252.04 | -23.49 | 71.45 | 0.4152 | 929.0 | 756.6 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 10.70 | 251.75 | -23.78 | 71.22 | 0.4203 | 642.0 | 540.7 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 10.04 | 251.33 | -24.20 | 72.98 | 0.4239 | 706.0 | 654.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 9.92 | 251.17 | -24.36 | 73.36 | 0.4259 | 634.0 | 555.7 | |
| 0.00 | 0.55 | 0.00 | 0.31 | 19.36 | 249.53 | -26.01 | 55.60 | 0.5034 | 509.0 | 362.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 16.96 | 249.87 | -25.66 | 59.62 | 0.4821 | 725.0 | 403.9 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 13.84 | 249.82 | -25.71 | 65.77 | 0.4638 | 786.0 | 689.8 | |
| 0.00 | 2.82 | 0.00 | 1.59 | 15.26 | 249.33 | -26.20 | 63.32 | 0.4787 | 777.0 | 550.1 | |
| 0.00 | 3.27 | 0.00 | 1.87 | 16.93 | 248.27 | -27.26 | 61.00 | 0.5030 | 534.0 | 551.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.53 | 248.53 | -27.00 | 67.28 | 0.4805 | 762.0 | 648.5 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 16.48 | 248.05 | -27.48 | 61.99 | 0.5032 | 532.0 | 404.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 12.16 | 248.26 | -27.27 | 70.18 | 0.4780 | 612.0 | 535.8 | |
| 0.00 | 0.55 | 0.00 | 0.32 | 16.66 | 246.32 | -29.21 | 62.91 | 0.5272 | 446.0 | 533.0 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 21.46 | 244.92 | -30.61 | 55.96 | 0.5740 | 574.0 | 358.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 16.71 | 244.47 | -31.06 | 64.02 | 0.5518 | 774.0 | 554.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 14.79 | 243.20 | -32.33 | 68.00 | 0.5598 | 653.0 | 507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
