SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.66 | 757.48 | 74.96 | 429.63 | -19.20 | 257.05 | -18.48 | 141.79 | 0.4861 | 751.7 | 303.2 | |
|
previous
or next observation for the same group /

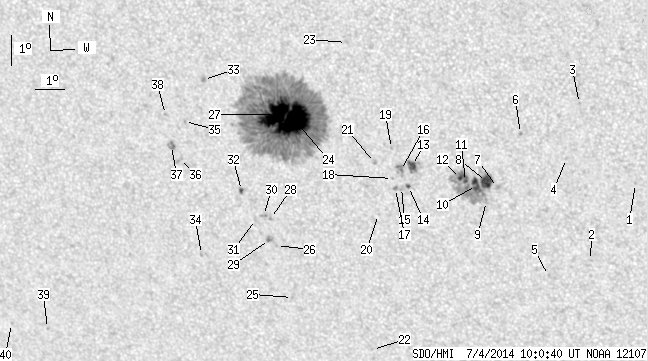

back to the solar disc SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.80 | 267.68 | -7.85 | 162.57 | 0.4280 | 820.0 | 683.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.41 | 266.02 | -9.51 | 161.28 | 0.4746 | 678.0 | 523.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -18.17 | 266.00 | -9.54 | 156.62 | 0.3983 | 835.0 | 637.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.99 | 265.46 | -10.07 | 157.32 | 0.4281 | 830.0 | 683.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -23.94 | 264.55 | -10.98 | 159.09 | 0.4897 | 605.0 | 472.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.17 | 264.00 | -11.53 | 153.58 | 0.4261 | 868.0 | 711.0 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -20.98 | 263.09 | -12.44 | 153.80 | 0.4574 | 200.0 | 254.1 | |
| 10.81 | 82.86 | 6.02 | 46.27 | -20.78 | 262.74 | -12.79 | 152.96 | 0.4572 | 1112.1 | 363.0 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -21.45 | 262.68 | -12.85 | 153.56 | 0.4667 | 539.0 | 415.2 | |
| 7.27 | -8.00 | 4.05 | -8.00 | -20.92 | 262.40 | -13.14 | 152.49 | 0.4615 | 942.2 | 999999 | |
| 1.09 | -8.00 | 0.61 | -8.00 | -20.79 | 262.04 | -13.49 | 151.72 | 0.4624 | 1002.2 | 999999 | |
| 1.73 | -8.00 | 0.96 | -8.00 | -20.69 | 261.88 | -13.65 | 151.34 | 0.4622 | 969.9 | 999999 | |
| 5.09 | 10.63 | 2.85 | 5.96 | -20.28 | 260.31 | -15.23 | 148.18 | 0.4691 | -1049.8 | -759.6 | |
| 1.00 | 2.18 | 0.56 | 1.23 | -20.98 | 260.10 | -15.43 | 148.67 | 0.4798 | -841.1 | -669.2 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -21.02 | 259.86 | -15.68 | 148.32 | 0.4822 | -629.0 | -580.8 | |
| 0.00 | 8.27 | 0.00 | 4.65 | -20.45 | 259.88 | -15.65 | 147.69 | 0.4748 | -1015.0 | -781.2 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -21.06 | 259.65 | -15.88 | 148.03 | 0.4843 | -761.0 | -675.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.72 | 259.58 | -15.95 | 147.53 | 0.4807 | -723.0 | -548.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.73 | 259.66 | -15.88 | 146.42 | 0.4675 | -863.0 | -637.4 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -21.94 | 258.96 | -16.57 | 147.99 | 0.5009 | -645.0 | -530.3 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -20.20 | 259.03 | -16.50 | 146.01 | 0.4788 | -757.0 | -665.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -26.60 | 258.10 | -17.43 | 151.59 | 0.5649 | -642.0 | -487.4 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -16.28 | 258.49 | -17.04 | 139.68 | 0.4366 | -729.0 | -556.2 | |
| 62.78 | 600.85 | 35.55 | 341.11 | -18.85 | 256.50 | -19.03 | 140.40 | 0.4860 | 1455.2 | 400.8 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -24.83 | 255.53 | -20.00 | 146.41 | 0.5631 | -690.0 | -603.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -23.06 | 255.26 | -20.27 | 144.05 | 0.5451 | -820.0 | -658.6 | |
| 41.89 | -24.00 | 23.78 | -24.00 | -18.67 | 255.84 | -19.69 | 139.20 | 0.4905 | 1279.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.14 | 255.19 | -20.34 | 142.86 | 0.5354 | -774.0 | -622.9 | |
| 0.00 | 3.91 | 0.00 | 2.30 | -22.86 | 255.04 | -20.49 | 143.53 | 0.5447 | -925.0 | -779.6 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -22.05 | 254.96 | -20.57 | 142.44 | 0.5364 | -643.0 | -609.0 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -22.19 | 254.65 | -20.88 | 142.22 | 0.5407 | -515.0 | -501.3 | |
| 1.00 | 2.63 | 0.58 | 1.54 | -21.22 | 254.31 | -21.22 | 140.57 | 0.5332 | 770.2 | 580.6 | |
| 0.00 | 2.63 | 0.00 | 1.51 | -17.57 | 253.51 | -22.03 | 134.48 | 0.5031 | -763.0 | -653.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -23.42 | 252.52 | -23.02 | 141.08 | 0.5732 | -648.0 | -581.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -18.96 | 252.65 | -22.88 | 135.45 | 0.5261 | -770.0 | -599.8 | |
| 0.00 | 3.63 | 0.00 | 2.14 | -20.23 | 252.28 | -23.25 | 136.75 | 0.5426 | -621.0 | -556.7 | |
| 0.00 | 5.54 | 0.00 | 3.26 | -19.77 | 252.07 | -23.46 | 135.88 | 0.5402 | -999.0 | -838.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -18.75 | 252.02 | -23.51 | 134.38 | 0.5307 | -833.0 | -641.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -26.13 | 246.12 | -29.41 | 137.65 | 0.6568 | -532.0 | -476.7 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -26.00 | 244.74 | -30.79 | 136.28 | 0.6680 | -630.0 | -469.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
