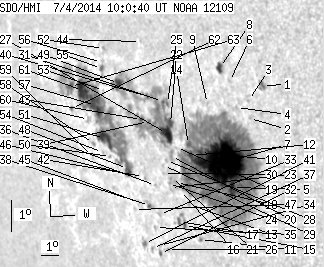

SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 250.49 | 1128.80 | 231.25 | 1041.14 | -7.73 | 219.09 | -56.44 | 101.35 | 0.8431 | 214.4 | -40.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 5.54 | 1.32 | 4.48 | -5.71 | 224.10 | -51.43 | 99.78 | 0.7917 | 657.9 | 499.6 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -6.76 | 223.30 | -52.23 | 100.94 | 0.8017 | 665.0 | 520.2 | |
| 0.00 | 1.18 | 0.00 | 0.97 | -6.20 | 223.33 | -52.20 | 100.26 | 0.8005 | -201.0 | -197.3 | |
| 0.00 | 1.54 | 0.00 | 1.29 | -6.45 | 222.69 | -52.85 | 100.44 | 0.8075 | 345.0 | 330.8 | |
| 7.27 | 628.10 | 6.24 | 544.24 | -8.96 | 222.02 | -53.51 | 103.35 | 0.8184 | 739.5 | 201.3 | |
| 0.00 | 1.73 | 0.00 | 1.45 | -5.66 | 222.44 | -53.09 | 99.42 | 0.8087 | -243.0 | -204.6 | |
| 127.57 | -5.00 | 109.96 | -5.00 | -8.20 | 221.70 | -53.83 | 102.37 | 0.8201 | 961.4 | 999999 | |
| 4.00 | 6.18 | 3.38 | 5.23 | -5.25 | 221.98 | -53.55 | 98.84 | 0.8128 | -583.5 | -460.9 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -6.39 | 221.19 | -54.35 | 100.09 | 0.8223 | 304.0 | 274.2 | |
| 2.27 | -5.00 | 2.01 | -5.00 | -7.94 | 220.53 | -55.00 | 101.83 | 0.8310 | 223.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.66 | -10.68 | 219.87 | -55.66 | 104.92 | 0.8418 | 588.0 | 480.9 | |
| 2.36 | -5.00 | 2.12 | -5.00 | -8.06 | 219.96 | -55.57 | 101.86 | 0.8366 | 288.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.41 | -9.60 | 219.55 | -55.98 | 103.59 | 0.8429 | -255.0 | -262.3 | |
| 2.63 | -5.00 | 2.37 | -5.00 | -7.72 | 219.92 | -55.61 | 101.45 | 0.8364 | -193.8 | 999999 | |
| 1.45 | 9.90 | 1.35 | 9.22 | -10.28 | 219.09 | -56.44 | 104.29 | 0.8482 | 340.1 | 213.0 | |
| 0.00 | 1.36 | 0.00 | 1.26 | -9.19 | 219.15 | -56.38 | 103.02 | 0.8458 | -209.0 | -291.9 | |
| 1.36 | -15.00 | 1.28 | -15.00 | -10.17 | 218.84 | -56.70 | 104.10 | 0.8503 | 187.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.43 | -8.94 | 218.98 | -56.55 | 102.71 | 0.8470 | -381.0 | -368.2 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -7.85 | 219.23 | -56.30 | 101.47 | 0.8430 | 224.0 | 185.7 | |
| 0.00 | 4.91 | 0.00 | 4.54 | -8.14 | 218.89 | -56.64 | 101.75 | 0.8466 | -501.0 | -429.4 | |
| 0.00 | 1.00 | 0.00 | 0.93 | -8.80 | 218.74 | -56.80 | 102.49 | 0.8490 | -495.0 | -534.0 | |
| 4.00 | 180.99 | 3.67 | 171.74 | -7.11 | 219.05 | -56.49 | 100.57 | 0.8437 | 668.5 | -233.4 | |
| 0.00 | 1.54 | 0.00 | 1.45 | -9.12 | 218.60 | -56.93 | 102.84 | 0.8507 | -384.0 | -377.3 | |
| 0.00 | 0.36 | 0.00 | 0.34 | -9.00 | 218.52 | -57.02 | 102.68 | 0.8513 | -785.0 | -711.2 | |
| 0.91 | -22.00 | 0.83 | -22.00 | -6.49 | 218.99 | -56.54 | 99.84 | 0.8434 | 639.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.14 | -11.09 | 217.87 | -57.66 | 104.96 | 0.8602 | -686.0 | -615.8 | |
| 12.90 | -22.00 | 11.94 | -22.00 | -7.43 | 218.76 | -56.78 | 100.90 | 0.8468 | 498.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.44 | -8.28 | 218.57 | -56.96 | 101.86 | 0.8497 | -487.0 | -490.0 | |
| 0.00 | 1.27 | 0.00 | 1.20 | -8.45 | 218.36 | -57.17 | 102.01 | 0.8518 | -287.0 | -290.7 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -8.70 | 218.30 | -57.23 | 102.29 | 0.8527 | -699.0 | -625.8 | |
| 1.09 | -22.00 | 1.01 | -22.00 | -6.45 | 218.72 | -56.81 | 99.74 | 0.8458 | 355.1 | 999999 | |
| 1.00 | 2.54 | 0.98 | 2.49 | -11.24 | 217.41 | -58.12 | 105.04 | 0.8644 | -615.0 | -558.8 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -10.00 | 217.73 | -57.80 | 103.69 | 0.8597 | -100.0 | -113.4 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -10.99 | 217.43 | -58.10 | 104.75 | 0.8638 | -516.0 | -417.8 | |
| 0.00 | 1.54 | 0.00 | 1.51 | -10.43 | 217.37 | -58.16 | 104.10 | 0.8635 | 309.0 | 161.9 | |
| 0.00 | 0.82 | 0.00 | 0.78 | -9.10 | 217.74 | -57.79 | 102.65 | 0.8583 | -698.0 | -598.9 | |
| 0.00 | 1.91 | 0.00 | 1.89 | -11.10 | 216.98 | -58.55 | 104.79 | 0.8678 | -709.0 | -588.4 | |
| 1.09 | 4.36 | 1.07 | 4.25 | -9.75 | 217.21 | -58.32 | 103.29 | 0.8638 | -604.9 | -431.1 | |
| 1.09 | -22.00 | 1.03 | -22.00 | -7.11 | 217.79 | -57.74 | 100.36 | 0.8551 | 333.8 | 999999 | |
| 1.09 | -22.00 | 1.03 | -22.00 | -6.33 | 217.88 | -57.65 | 99.47 | 0.8533 | 126.9 | 999999 | |
| 1.27 | 4.00 | 1.27 | 4.01 | -10.97 | 216.54 | -58.99 | 104.55 | 0.8713 | -644.6 | -478.3 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -8.85 | 217.10 | -58.43 | 102.24 | 0.8635 | -653.0 | -581.5 | |
| 1.73 | -22.00 | 1.66 | -22.00 | -7.07 | 217.39 | -58.14 | 100.24 | 0.8586 | 251.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -4.64 | 217.74 | -57.79 | 97.48 | 0.8526 | -463.0 | -435.0 | |
| 0.00 | 1.82 | 0.00 | 1.81 | -9.68 | 216.57 | -58.96 | 103.10 | 0.8691 | -559.0 | -445.0 | |
| 0.00 | 0.82 | 0.00 | 0.81 | -8.87 | 216.61 | -58.92 | 102.18 | 0.8677 | -564.0 | -515.7 | |
| 0.00 | 1.00 | 0.00 | 1.00 | -9.92 | 216.26 | -59.27 | 103.31 | 0.8721 | -469.0 | -342.0 | |
| 7.54 | 193.35 | 7.54 | 199.46 | -8.64 | 216.19 | -59.34 | 101.85 | 0.8709 | -585.4 | -527.2 | |
| 5.81 | -22.00 | 5.75 | -22.00 | -6.01 | 216.23 | -59.31 | 98.85 | 0.8675 | -816.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.22 | -8.32 | 215.22 | -60.31 | 101.32 | 0.8785 | -285.0 | -258.4 | |
| 14.99 | -48.00 | 15.50 | -48.00 | -7.77 | 214.98 | -60.55 | 100.66 | 0.8798 | -718.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.56 | -4.97 | 215.48 | -60.05 | 97.55 | 0.8727 | -654.0 | -606.4 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -6.27 | 215.25 | -60.28 | 99.01 | 0.8760 | -561.0 | -542.7 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -8.22 | 214.74 | -60.79 | 101.13 | 0.8823 | -290.0 | -251.4 | |
| 1.54 | 4.54 | 1.57 | 4.62 | -5.59 | 215.26 | -60.28 | 98.24 | 0.8752 | -438.2 | -418.4 | |
| 0.00 | 1.18 | 0.00 | 1.20 | -5.41 | 215.29 | -60.24 | 98.03 | 0.8748 | -541.0 | -482.8 | |
| 20.81 | -48.00 | 21.66 | -48.00 | -6.77 | 214.65 | -60.88 | 99.48 | 0.8815 | -808.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.83 | -7.96 | 214.23 | -61.30 | 100.76 | 0.8861 | -376.0 | -267.4 | |
| 0.00 | 1.54 | 0.00 | 1.65 | -8.38 | 214.06 | -61.48 | 101.19 | 0.8880 | -274.0 | -186.5 | |
| 0.00 | 2.73 | 0.00 | 2.89 | -7.23 | 214.09 | -61.44 | 99.91 | 0.8864 | -271.0 | -229.4 | |
| 17.90 | -48.00 | 19.05 | -48.00 | -6.34 | 213.90 | -61.63 | 98.89 | 0.8870 | -529.7 | 999999 | |
| 0.82 | 1.73 | 0.90 | 1.90 | -6.94 | 213.04 | -62.49 | 99.44 | 0.8944 | -57.0 | -83.5 | |
| 4.36 | 40.07 | 4.76 | 44.09 | -6.25 | 213.13 | -62.40 | 98.69 | 0.8930 | -339.1 | 92.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
