SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.45 | 43.54 | 10.03 | 31.15 | -15.93 | 233.09 | -42.44 | 115.86 | 0.7221 | -82.4 | 95.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

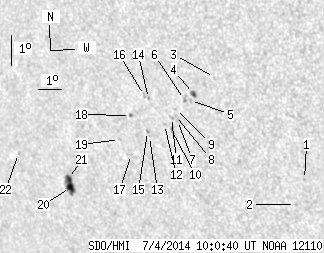

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.71 | -16.77 | 240.09 | -35.44 | 120.87 | 0.6491 | 637.0 | 511.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -17.59 | 239.55 | -35.98 | 121.65 | 0.6601 | 441.0 | 280.9 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -13.59 | 237.18 | -38.35 | 114.71 | 0.6661 | 348.0 | 355.8 | |
| 2.00 | 3.82 | 1.35 | 2.57 | -14.14 | 236.22 | -39.31 | 114.97 | 0.6799 | 793.9 | 574.3 | |
| 0.00 | 1.64 | 0.00 | 1.11 | -14.37 | 236.05 | -39.48 | 115.20 | 0.6830 | 546.0 | 395.8 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -14.34 | 235.81 | -39.72 | 115.04 | 0.6856 | 803.0 | 691.5 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -15.03 | 235.37 | -40.16 | 115.75 | 0.6938 | 682.0 | 578.9 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -14.87 | 235.32 | -40.21 | 115.51 | 0.6936 | 759.0 | 606.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -14.68 | 235.37 | -40.16 | 115.27 | 0.6923 | 663.0 | 556.6 | |
| 0.00 | 1.73 | 0.00 | 1.19 | -15.33 | 235.05 | -40.48 | 115.99 | 0.6988 | 568.0 | 462.7 | |
| 0.00 | 1.64 | 0.00 | 1.13 | -14.94 | 235.14 | -40.39 | 115.52 | 0.6960 | 483.0 | 403.7 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -15.18 | 234.79 | -40.74 | 115.66 | 0.7010 | -209.0 | -149.3 | |
| 0.00 | 0.55 | 0.00 | 0.38 | -15.59 | 234.06 | -41.47 | 115.85 | 0.7110 | -645.0 | -514.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -14.37 | 234.31 | -41.22 | 114.34 | 0.7029 | 650.0 | 493.5 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -15.43 | 234.02 | -41.51 | 115.61 | 0.7108 | -750.0 | -656.6 | |
| 0.00 | 2.00 | 0.00 | 1.39 | -14.28 | 234.17 | -41.37 | 114.15 | 0.7042 | 385.0 | 367.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -16.21 | 233.13 | -42.40 | 116.20 | 0.7239 | -538.0 | -520.8 | |
| 0.45 | 1.36 | 0.32 | 0.96 | -14.94 | 233.41 | -42.12 | 114.68 | 0.7154 | -587.8 | -533.0 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -15.74 | 232.74 | -42.79 | 115.41 | 0.7262 | -672.0 | -528.5 | |
| 7.27 | 15.90 | 5.53 | 12.08 | -17.40 | 230.07 | -45.46 | 116.30 | 0.7609 | -766.7 | -360.7 | |
| 3.73 | -20.00 | 2.83 | -20.00 | -17.10 | 230.08 | -45.45 | 115.94 | 0.7598 | -728.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -16.38 | 227.99 | -47.55 | 114.19 | 0.7783 | -535.0 | -392.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
