SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.25 | 230.56 | 22.21 | 115.85 | 11.67 | 278.55 | 3.57 | 337.06 | 0.1659 | -289.0 | -250.7 | |
|
previous
or next observation for the same group /

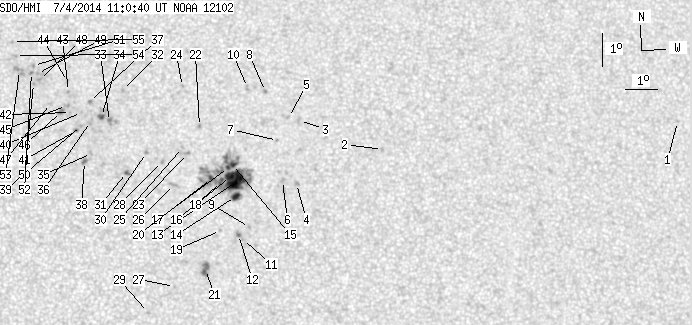

back to the solar disc SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.75 | 294.03 | 19.05 | 297.88 | 0.3617 | -738.0 | -598.7 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 12.02 | 284.48 | 9.50 | 313.61 | 0.2238 | -805.0 | -724.8 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 12.94 | 281.89 | 6.91 | 325.28 | 0.2067 | -722.0 | -675.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.00 | 281.74 | 6.76 | 319.57 | 0.1790 | -863.0 | -734.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.04 | 281.55 | 6.56 | 326.89 | 0.2048 | -762.0 | -639.2 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.10 | 281.31 | 6.33 | 321.77 | 0.1755 | -903.0 | -778.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.33 | 281.18 | 6.20 | 326.36 | 0.1913 | -832.0 | -645.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.85 | 280.84 | 5.86 | 331.76 | 0.2105 | -970.0 | -785.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.66 | 280.25 | 5.27 | 321.11 | 0.1449 | -948.0 | -744.4 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 13.98 | 280.28 | 5.30 | 334.37 | 0.2080 | -724.0 | -652.5 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 9.29 | 280.03 | 5.05 | 320.65 | 0.1376 | -930.0 | -772.9 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 9.45 | 279.91 | 4.93 | 322.04 | 0.1383 | -1259.0 | -1005.9 | |
| 21.71 | 126.92 | 10.90 | 63.70 | 11.07 | 279.87 | 4.89 | 328.54 | 0.1610 | -1233.6 | -650.6 | |
| 4.36 | -13.00 | 2.19 | -13.00 | 10.61 | 279.83 | 4.85 | 327.16 | 0.1540 | -990.0 | 999999 | |
| 3.36 | -13.00 | 1.69 | -13.00 | 11.60 | 279.76 | 4.78 | 330.78 | 0.1678 | -1006.1 | 999999 | |
| 6.63 | -13.00 | 3.33 | -13.00 | 11.23 | 279.69 | 4.71 | 330.00 | 0.1617 | -1261.5 | 999999 | |
| 1.73 | -13.00 | 0.87 | -13.00 | 11.51 | 279.63 | 4.65 | 331.15 | 0.1654 | -1127.2 | 999999 | |
| 2.09 | -13.00 | 1.05 | -13.00 | 11.08 | 279.41 | 4.42 | 331.04 | 0.1570 | -946.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.57 | 279.35 | 4.37 | 325.84 | 0.1344 | -874.0 | -596.6 | |
| 2.00 | -13.00 | 1.00 | -13.00 | 11.17 | 279.10 | 4.11 | 333.04 | 0.1559 | -1205.1 | 999999 | |
| 0.00 | 7.90 | 0.00 | 3.94 | 8.38 | 278.87 | 3.89 | 323.27 | 0.1128 | -1465.0 | -1049.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.78 | 278.75 | 3.76 | 338.91 | 0.1787 | -1060.0 | -835.1 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 11.94 | 278.36 | 3.38 | 339.20 | 0.1630 | -964.0 | -787.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.02 | 278.23 | 3.25 | 343.63 | 0.1961 | -902.0 | -777.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 12.13 | 278.21 | 3.22 | 340.46 | 0.1651 | -797.0 | -620.2 | |
| 0.00 | 3.91 | 0.00 | 1.96 | 10.99 | 277.94 | 2.96 | 339.45 | 0.1450 | -771.0 | -658.4 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.87 | 277.91 | 2.93 | 327.98 | 0.0959 | 791.0 | 703.3 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 11.70 | 277.58 | 2.59 | 343.27 | 0.1546 | -823.0 | -700.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.07 | 277.11 | 2.12 | 331.28 | 0.0769 | 860.0 | 704.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 11.98 | 277.08 | 2.10 | 346.76 | 0.1571 | -871.0 | -638.9 | |
| 0.73 | 2.63 | 0.36 | 1.32 | 11.37 | 276.45 | 1.47 | 349.92 | 0.1445 | 1042.5 | 804.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.90 | 276.35 | 1.36 | 352.89 | 0.1875 | -737.0 | -602.1 | |
| 0.00 | 3.09 | 0.00 | 1.55 | 12.94 | 275.93 | 0.95 | 354.53 | 0.1703 | 1014.0 | 855.6 | |
| 1.64 | 8.54 | 0.82 | 4.30 | 13.10 | 275.68 | 0.70 | 356.02 | 0.1726 | 1204.5 | 726.6 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 11.95 | 275.37 | 0.38 | 357.52 | 0.1526 | 801.0 | 710.6 | |
| 0.00 | 4.09 | 0.00 | 2.05 | 12.94 | 275.34 | 0.36 | 357.94 | 0.1696 | 844.0 | 748.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.56 | 275.31 | 0.33 | 358.23 | 0.1803 | 972.0 | 860.5 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 11.71 | 275.15 | 0.17 | 358.90 | 0.1482 | 1222.0 | 1018.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.82 | 275.06 | 0.07 | 359.56 | 0.1674 | 925.0 | 763.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.22 | 275.06 | 0.08 | 359.58 | 0.1743 | 923.0 | 782.0 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 12.66 | 274.90 | -0.08 | 0.49 | 0.1647 | 1033.0 | 815.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.22 | 274.71 | -0.27 | 1.51 | 0.1744 | 953.0 | 693.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.87 | 274.65 | -0.33 | 1.74 | 0.1856 | 925.0 | 815.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 14.18 | 274.62 | -0.36 | 1.85 | 0.1910 | 904.0 | 701.4 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 13.44 | 274.59 | -0.39 | 2.16 | 0.1782 | 858.0 | 817.0 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.25 | 274.43 | -0.55 | 3.08 | 0.1751 | 985.0 | 873.7 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 13.50 | 274.09 | -0.90 | 4.87 | 0.1798 | 828.0 | 470.8 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 14.24 | 273.74 | -1.24 | 6.28 | 0.1931 | 1074.0 | 881.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.43 | 273.67 | -1.31 | 6.49 | 0.1965 | 974.0 | 783.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.12 | 273.55 | -1.43 | 7.31 | 0.1914 | 937.0 | 745.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.68 | 273.55 | -1.43 | 6.95 | 0.2009 | 800.0 | 711.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 14.46 | 273.49 | -1.50 | 7.39 | 0.1974 | 1055.0 | 896.9 | |
| 0.00 | 6.27 | 0.00 | 3.17 | 14.52 | 273.11 | -1.87 | 9.18 | 0.1994 | 732.0 | 834.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.99 | 272.98 | -2.00 | 9.41 | 0.2076 | 800.0 | 654.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.43 | 272.88 | -2.10 | 9.50 | 0.2153 | 797.0 | 623.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
