SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.76 | 402.18 | 44.24 | 210.92 | 15.40 | 260.61 | -14.37 | 47.77 | 0.3226 | -518.0 | -186.8 | |
|
previous
or next observation for the same group /

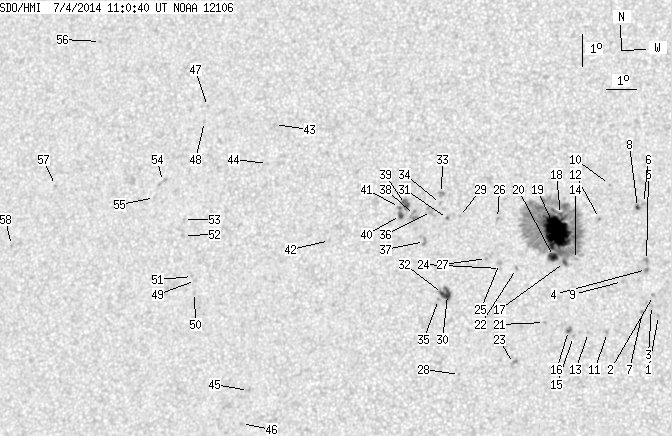

back to the solar disc SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.03 | 265.19 | -9.79 | 44.09 | 0.2393 | -975.0 | -724.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.65 | 265.00 | -9.98 | 42.81 | 0.2489 | -887.0 | -735.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.34 | 264.95 | -10.03 | 43.84 | 0.2457 | -921.0 | -711.6 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 14.45 | 264.75 | -10.24 | 41.34 | 0.2617 | -1010.0 | -856.5 | |
| 0.00 | 3.54 | 0.00 | 1.82 | 14.73 | 264.73 | -10.25 | 40.66 | 0.2653 | -896.0 | -712.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 16.51 | 264.55 | -10.43 | 36.97 | 0.2900 | -801.0 | -693.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.15 | 264.67 | -10.31 | 45.16 | 0.2468 | -843.0 | -704.6 | |
| 1.18 | 2.73 | 0.61 | 1.41 | 16.39 | 264.36 | -10.62 | 37.73 | 0.2903 | -785.2 | -545.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.08 | 264.00 | -10.99 | 44.33 | 0.2657 | -842.0 | -578.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.10 | 263.41 | -11.57 | 38.52 | 0.3092 | 603.0 | 420.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.49 | 263.59 | -11.39 | 49.96 | 0.2531 | -979.0 | -734.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.03 | 263.15 | -11.83 | 41.50 | 0.2987 | 734.0 | 558.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.49 | 262.98 | -12.00 | 51.39 | 0.2609 | -742.0 | -537.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.74 | 262.45 | -12.53 | 46.24 | 0.2918 | -201.0 | -190.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.36 | 262.51 | -12.47 | 52.82 | 0.2659 | -731.0 | -560.9 | |
| 0.82 | 3.09 | 0.42 | 1.59 | 12.54 | 262.34 | -12.64 | 52.62 | 0.2700 | -1107.4 | -822.6 | |
| 1.36 | 291.82 | 0.71 | 152.13 | 14.65 | 262.10 | -12.88 | 47.25 | 0.2950 | -1075.3 | -312.1 | |
| 0.82 | -17.00 | 0.43 | -17.00 | 16.14 | 261.88 | -13.11 | 44.08 | 0.3145 | -529.7 | 999999 | |
| 62.05 | -17.00 | 32.31 | -17.00 | 15.61 | 261.78 | -13.20 | 45.54 | 0.3095 | -1358.7 | 999999 | |
| 5.81 | -17.00 | 3.02 | -17.00 | 14.83 | 261.73 | -13.25 | 47.56 | 0.3015 | -1126.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.78 | 261.56 | -13.42 | 53.51 | 0.2828 | -869.0 | -785.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 14.44 | 260.56 | -14.43 | 50.88 | 0.3123 | -996.0 | -712.7 | |
| 0.00 | 3.36 | 0.00 | 1.74 | 11.50 | 260.63 | -14.35 | 59.05 | 0.2845 | -753.0 | -785.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.44 | 260.04 | -14.95 | 51.85 | 0.3190 | -981.0 | -597.4 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 14.59 | 259.99 | -14.99 | 51.53 | 0.3211 | -982.0 | -738.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.99 | 259.83 | -15.16 | 48.44 | 0.3373 | 887.0 | 733.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.74 | 259.56 | -15.42 | 51.92 | 0.3282 | -619.0 | -488.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.14 | 258.91 | -16.07 | 62.76 | 0.3069 | -688.0 | -549.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 16.04 | 258.57 | -16.41 | 50.49 | 0.3535 | 679.0 | 549.9 | |
| 4.91 | 11.27 | 2.58 | 5.92 | 13.61 | 258.36 | -16.62 | 56.72 | 0.3339 | -1110.3 | -783.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 15.97 | 258.18 | -16.80 | 51.28 | 0.3578 | 894.0 | 805.2 | |
| 1.64 | -30.00 | 0.86 | -30.00 | 13.63 | 258.20 | -16.78 | 56.90 | 0.3365 | -978.8 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.79 | 16.75 | 257.91 | -17.07 | 49.97 | 0.3687 | 826.0 | 693.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 16.43 | 257.91 | -17.08 | 50.66 | 0.3657 | 692.0 | 581.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.45 | 258.08 | -16.90 | 57.55 | 0.3365 | -735.0 | -624.4 | |
| 0.00 | 6.27 | 0.00 | 3.34 | 16.18 | 257.63 | -17.35 | 51.65 | 0.3668 | 743.0 | 641.5 | |
| 0.00 | 3.27 | 0.00 | 1.74 | 15.24 | 257.48 | -17.50 | 54.02 | 0.3601 | 905.0 | 864.0 | |
| 0.00 | 6.27 | 0.00 | 3.34 | 16.05 | 257.07 | -17.91 | 52.78 | 0.3727 | 912.0 | 921.5 | |
| 3.72 | 6.72 | 1.99 | 3.60 | 16.38 | 256.74 | -18.24 | 52.51 | 0.3801 | 1005.0 | 751.8 | |
| 2.09 | 5.72 | 1.12 | 3.06 | 16.04 | 256.61 | -18.37 | 53.46 | 0.3787 | 965.1 | 798.4 | |
| 0.36 | -40.00 | 0.19 | -40.00 | 16.29 | 256.55 | -18.43 | 52.99 | 0.3817 | 853.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 15.22 | 254.30 | -20.68 | 58.20 | 0.4026 | -637.0 | -477.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 18.82 | 251.97 | -23.01 | 53.57 | 0.4617 | 571.0 | 478.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 17.59 | 251.90 | -23.08 | 55.98 | 0.4528 | 790.0 | 694.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.53 | 252.00 | -22.99 | 71.09 | 0.4076 | 939.0 | 779.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 9.51 | 251.83 | -23.15 | 73.62 | 0.4058 | 634.0 | 509.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 19.34 | 249.52 | -25.46 | 55.13 | 0.4964 | 683.0 | 436.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 18.86 | 249.49 | -25.49 | 56.00 | 0.4932 | 500.0 | 455.6 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 13.88 | 249.86 | -25.12 | 65.24 | 0.4557 | 877.0 | 635.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 13.51 | 249.87 | -25.11 | 66.00 | 0.4536 | 673.0 | 516.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.00 | 249.74 | -25.24 | 65.08 | 0.4581 | 513.0 | 525.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 15.27 | 249.27 | -25.71 | 62.91 | 0.4720 | 743.0 | 624.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 15.77 | 249.21 | -25.78 | 61.99 | 0.4759 | 635.0 | 583.5 | |
| 0.00 | 3.63 | 0.00 | 2.07 | 16.94 | 248.29 | -26.69 | 60.53 | 0.4955 | 479.0 | 511.8 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 16.43 | 248.08 | -26.90 | 61.63 | 0.4951 | 585.0 | 504.0 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 21.32 | 245.21 | -29.78 | 55.55 | 0.5632 | 708.0 | 530.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 16.72 | 244.44 | -30.54 | 63.68 | 0.5451 | 772.0 | 693.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.80 | 243.14 | -31.85 | 67.73 | 0.5534 | 782.0 | 628.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
