SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 220.05 | 1125.60 | 200.15 | 1022.92 | -7.76 | 219.09 | -55.89 | 101.50 | 0.8381 | 220.7 | -31.8 | |
|
previous
or next observation for the same group /

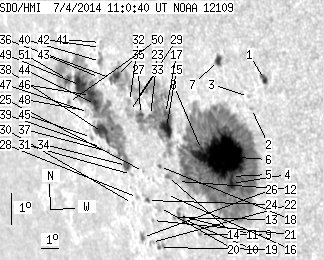

back to the solar disc SDO HMI 2014-07-04 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 5.63 | 2.60 | 4.48 | -5.71 | 224.19 | -50.79 | 99.91 | 0.7849 | 623.4 | 468.0 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -6.64 | 223.42 | -51.56 | 100.93 | 0.7946 | 491.0 | 477.0 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -6.27 | 223.33 | -51.66 | 100.45 | 0.7950 | -306.0 | -199.8 | |
| 3.72 | 633.97 | 3.16 | 542.23 | -9.03 | 221.98 | -53.01 | 103.55 | 0.8136 | 679.4 | 218.1 | |
| 1.18 | -4.00 | 1.00 | -4.00 | -8.81 | 222.02 | -52.96 | 103.30 | 0.8127 | 894.0 | 999999 | |
| 115.02 | -4.00 | 97.88 | -4.00 | -8.20 | 221.68 | -53.30 | 102.49 | 0.8150 | 930.4 | 999999 | |
| 4.00 | 6.27 | 3.34 | 5.24 | -5.22 | 221.95 | -53.03 | 98.90 | 0.8075 | -586.6 | -387.9 | |
| 1.18 | -4.00 | 1.03 | -4.00 | -8.04 | 220.61 | -54.37 | 102.06 | 0.8252 | 421.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -10.72 | 219.86 | -55.12 | 105.09 | 0.8369 | 574.0 | 434.2 | |
| 1.36 | 2.91 | 1.25 | 2.66 | -10.29 | 219.10 | -55.88 | 104.41 | 0.8431 | 285.5 | 239.5 | |
| 1.27 | 4.91 | 1.17 | 4.51 | -10.17 | 218.85 | -56.13 | 104.23 | 0.8452 | 227.5 | 172.6 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -9.10 | 219.07 | -55.91 | 103.02 | 0.8414 | -541.0 | -441.1 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -10.25 | 218.55 | -56.43 | 104.25 | 0.8480 | -36.0 | -49.4 | |
| 1.00 | 6.36 | 0.92 | 5.85 | -8.97 | 218.55 | -56.44 | 102.76 | 0.8460 | -697.5 | -481.8 | |
| 14.17 | 124.92 | 12.90 | 114.94 | -7.44 | 218.83 | -56.15 | 101.01 | 0.8411 | 541.4 | -95.1 | |
| 0.00 | 0.64 | 0.00 | 0.59 | -9.54 | 218.35 | -56.64 | 103.39 | 0.8487 | -204.0 | -235.4 | |
| 1.73 | -15.00 | 1.57 | -15.00 | -7.00 | 218.86 | -56.13 | 100.51 | 0.8402 | 525.7 | 999999 | |
| 0.64 | 1.73 | 0.59 | 1.61 | -8.68 | 218.16 | -56.82 | 102.35 | 0.8490 | -644.9 | -590.4 | |
| 0.64 | 5.72 | 0.61 | 5.50 | -11.24 | 217.45 | -57.53 | 105.16 | 0.8594 | -651.4 | -587.4 | |
| 0.00 | 4.72 | 0.00 | 4.47 | -9.97 | 217.83 | -57.15 | 103.78 | 0.8540 | -302.0 | -256.2 | |
| 0.00 | 1.18 | 0.00 | 1.14 | -10.40 | 217.30 | -57.68 | 104.17 | 0.8593 | 270.0 | 133.8 | |
| 0.00 | 3.00 | 0.00 | 2.92 | -11.11 | 217.03 | -57.96 | 104.92 | 0.8628 | -564.0 | -530.5 | |
| 0.27 | -15.00 | 0.25 | -15.00 | -7.10 | 217.99 | -56.99 | 100.48 | 0.8483 | 340.7 | 999999 | |
| 1.18 | 3.00 | 1.14 | 2.89 | -9.78 | 217.19 | -57.80 | 103.44 | 0.8593 | -567.9 | -565.6 | |
| 0.00 | 1.09 | 0.00 | 1.04 | -8.88 | 217.19 | -57.79 | 102.40 | 0.8579 | -445.0 | -450.3 | |
| 1.64 | 4.54 | 1.61 | 4.48 | -10.97 | 216.53 | -58.45 | 104.67 | 0.8667 | -634.6 | -484.8 | |
| 1.91 | -15.00 | 1.80 | -15.00 | -7.10 | 217.42 | -57.56 | 100.38 | 0.8535 | 295.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.33 | -9.72 | 216.62 | -58.37 | 103.25 | 0.8642 | -523.0 | -426.1 | |
| 0.00 | 3.18 | 0.00 | 3.01 | -6.64 | 217.28 | -57.70 | 99.82 | 0.8541 | -428.0 | -433.9 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -9.92 | 216.26 | -58.72 | 103.42 | 0.8675 | -491.0 | -362.8 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -9.01 | 216.45 | -58.53 | 102.41 | 0.8645 | -472.0 | -445.0 | |
| 0.00 | 3.00 | 0.00 | 2.88 | -6.72 | 216.86 | -58.13 | 99.85 | 0.8580 | -358.0 | -341.4 | |
| 0.00 | 6.18 | 0.00 | 5.94 | -7.04 | 216.79 | -58.19 | 100.20 | 0.8589 | -387.0 | -334.9 | |
| 5.45 | 199.88 | 5.36 | 202.88 | -8.74 | 216.22 | -58.76 | 102.06 | 0.8661 | -648.3 | -521.6 | |
| 6.18 | 39.98 | 6.01 | 38.51 | -5.98 | 216.23 | -58.76 | 98.90 | 0.8627 | -806.8 | -527.1 | |
| 1.54 | -35.00 | 1.52 | -35.00 | -6.06 | 215.91 | -59.07 | 98.94 | 0.8655 | -612.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.01 | -8.35 | 215.23 | -59.75 | 101.45 | 0.8740 | -334.0 | -305.2 | |
| 15.26 | -34.00 | 15.52 | -34.00 | -7.77 | 215.00 | -59.98 | 100.76 | 0.8752 | -725.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.93 | -8.25 | 214.82 | -60.16 | 101.26 | 0.8772 | -259.0 | -262.6 | |
| 1.45 | 6.09 | 1.45 | 6.07 | -5.56 | 215.33 | -59.65 | 98.29 | 0.8699 | -397.0 | -416.7 | |
| 0.00 | 0.73 | 0.00 | 0.72 | -4.97 | 215.43 | -59.55 | 97.63 | 0.8685 | -660.0 | -619.1 | |
| 0.00 | 0.91 | 0.00 | 0.90 | -5.13 | 215.41 | -59.58 | 97.80 | 0.8689 | -593.0 | -586.6 | |
| 0.00 | 1.27 | 0.00 | 1.28 | -6.06 | 215.18 | -59.80 | 98.84 | 0.8717 | -566.0 | -495.4 | |
| 6.00 | -34.00 | 6.12 | -34.00 | -6.92 | 214.76 | -60.22 | 99.75 | 0.8762 | -834.9 | 999999 | |
| 0.36 | 1.91 | 0.38 | 1.99 | -7.97 | 214.26 | -60.72 | 100.85 | 0.8815 | -317.8 | -244.4 | |
| 9.09 | -34.00 | 9.33 | -34.00 | -6.65 | 214.51 | -60.48 | 99.41 | 0.8780 | -808.5 | 999999 | |
| 0.00 | 2.91 | 0.00 | 3.02 | -7.19 | 214.26 | -60.72 | 99.98 | 0.8806 | -351.0 | -335.8 | |
| 0.00 | 1.18 | 0.00 | 1.23 | -7.14 | 214.08 | -60.90 | 99.89 | 0.8820 | -218.0 | -180.3 | |
| 14.90 | -34.00 | 15.59 | -34.00 | -6.37 | 213.93 | -61.05 | 99.01 | 0.8824 | -509.8 | 999999 | |
| 0.64 | 1.73 | 0.69 | 1.86 | -6.94 | 213.03 | -61.96 | 99.52 | 0.8902 | -171.3 | -93.9 | |
| 5.00 | 34.71 | 5.36 | 37.49 | -6.23 | 213.12 | -61.86 | 98.74 | 0.8888 | -344.7 | 124.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
