SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.27 | 0.00 | 11.93 | 6.01 | 265.24 | -9.19 | 127.66 | 0.2066 | 298.3 | 209.5 | |
|
previous
or next observation for the same group /

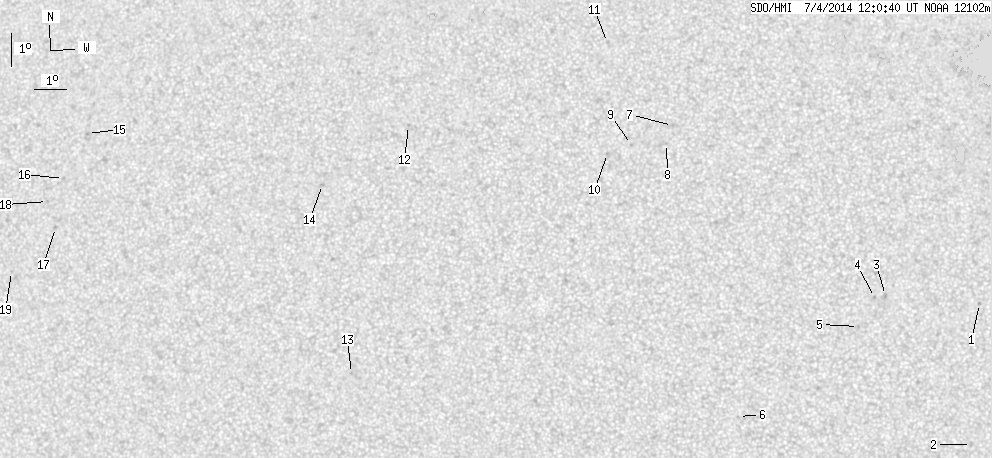

back to the solar disc SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.80 | 279.41 | 4.98 | 276.69 | 0.0876 | -887.0 | -626.8 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -0.50 | 279.15 | 4.72 | 231.78 | 0.1052 | -762.0 | -561.5 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 4.06 | 276.54 | 2.11 | 291.56 | 0.0396 | -916.0 | -763.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.00 | 276.20 | 1.77 | 293.55 | 0.0338 | -990.0 | -717.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 3.11 | 275.71 | 1.28 | 264.92 | 0.0225 | -875.0 | -688.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 0.37 | 272.05 | -2.38 | 140.12 | 0.0651 | -608.0 | -489.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 9.25 | 269.99 | -4.44 | 36.07 | 0.1305 | 1001.0 | 671.2 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.70 | 269.81 | -4.62 | 39.86 | 0.1249 | 890.0 | 548.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.66 | 268.72 | -5.71 | 46.00 | 0.1373 | 831.0 | 668.7 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.38 | 267.99 | -6.45 | 50.93 | 0.1437 | 883.0 | 640.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.79 | 267.92 | -6.51 | 36.65 | 0.1868 | 747.0 | 620.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.19 | 261.74 | -12.69 | 64.12 | 0.2422 | 864.0 | 705.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 1.60 | 260.10 | -14.33 | 96.15 | 0.2499 | 862.0 | 702.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 7.35 | 259.07 | -15.36 | 74.29 | 0.2741 | 1011.0 | 752.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 8.78 | 251.33 | -23.10 | 75.37 | 0.4024 | 917.0 | 704.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 7.39 | 250.61 | -23.82 | 79.08 | 0.4096 | 620.0 | 483.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 5.89 | 250.42 | -24.01 | 82.79 | 0.4098 | 735.0 | 548.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.67 | 250.11 | -24.32 | 80.96 | 0.4159 | 628.0 | 435.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 4.51 | 248.99 | -25.44 | 86.28 | 0.4310 | 717.0 | 609.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
