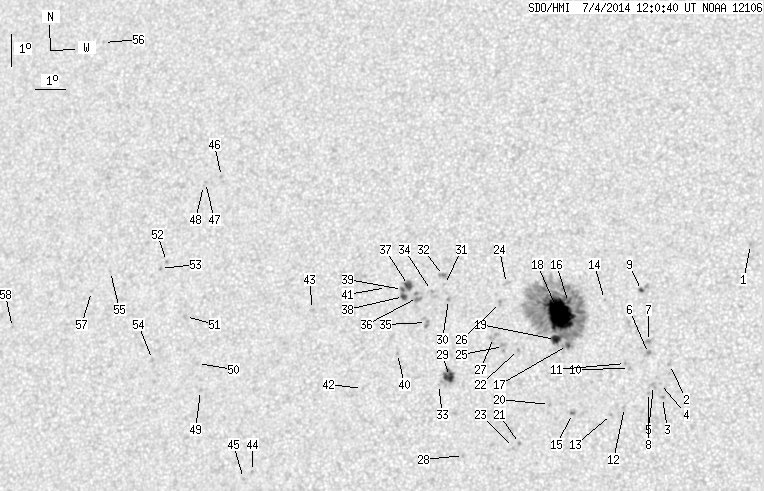

SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.03 | 412.87 | 42.73 | 215.82 | 15.35 | 260.70 | -13.73 | 46.65 | 0.3142 | -487.1 | -226.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.83 | 267.84 | -6.59 | 23.41 | 0.2763 | -878.0 | -729.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.06 | 265.39 | -9.04 | 38.94 | 0.2436 | -778.0 | -634.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.04 | 265.21 | -9.23 | 42.39 | 0.2327 | -927.0 | -776.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.47 | 265.13 | -9.31 | 41.37 | 0.2390 | -797.0 | -631.8 | |
| 0.00 | 4.91 | 0.00 | 2.50 | 13.41 | 264.91 | -9.53 | 42.21 | 0.2407 | -861.0 | -684.3 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 14.40 | 264.71 | -9.73 | 40.07 | 0.2553 | -1073.0 | -892.7 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 14.77 | 264.69 | -9.74 | 39.16 | 0.2602 | -839.0 | -729.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.19 | 264.76 | -9.68 | 43.28 | 0.2397 | -871.0 | -711.8 | |
| 1.27 | 4.81 | 0.66 | 2.49 | 16.36 | 264.39 | -10.04 | 36.27 | 0.2841 | -822.9 | -671.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.93 | 264.12 | -10.31 | 42.96 | 0.2560 | -889.0 | -751.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.08 | 263.99 | -10.45 | 42.91 | 0.2595 | -928.0 | -796.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.72 | 264.01 | -10.42 | 46.78 | 0.2432 | -782.0 | -546.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 12.50 | 263.61 | -10.82 | 48.52 | 0.2458 | -973.0 | -743.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.07 | 263.21 | -11.22 | 39.95 | 0.2925 | 630.0 | 490.2 | |
| 0.45 | 1.91 | 0.23 | 0.98 | 12.52 | 262.37 | -12.07 | 51.45 | 0.2621 | -1122.8 | -964.1 | |
| 1.91 | 292.43 | 0.99 | 152.09 | 15.96 | 262.05 | -12.38 | 42.92 | 0.3041 | -875.9 | -330.3 | |
| 1.54 | -16.00 | 0.80 | -16.00 | 14.62 | 262.10 | -12.33 | 46.11 | 0.2881 | -1056.5 | 999999 | |
| 56.96 | -16.00 | 29.60 | -16.00 | 15.59 | 261.78 | -12.65 | 44.41 | 0.3027 | -1369.8 | 999999 | |
| 6.27 | -16.00 | 3.25 | -16.00 | 14.80 | 261.70 | -12.73 | 46.53 | 0.2949 | -1109.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.79 | 261.62 | -12.82 | 52.26 | 0.2748 | -961.0 | -768.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.57 | 260.72 | -13.72 | 57.72 | 0.2760 | -1044.0 | -780.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.48 | 260.52 | -13.91 | 49.80 | 0.3061 | -918.0 | -726.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 11.45 | 260.53 | -13.90 | 58.45 | 0.2776 | -645.0 | -583.4 | |
| 0.00 | 2.91 | 0.00 | 1.53 | 16.53 | 259.99 | -14.44 | 45.88 | 0.3345 | 723.0 | 570.3 | |
| 0.00 | 4.81 | 0.00 | 2.51 | 14.57 | 260.03 | -14.40 | 50.52 | 0.3133 | -869.0 | -738.5 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 15.94 | 259.84 | -14.60 | 47.54 | 0.3299 | 855.0 | 723.8 | |
| 0.00 | 6.63 | 0.00 | 3.47 | 14.84 | 259.68 | -14.75 | 50.46 | 0.3205 | -690.0 | -561.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 11.18 | 258.94 | -15.50 | 61.83 | 0.2986 | -680.0 | -574.1 | |
| 6.72 | 14.81 | 3.52 | 7.76 | 13.61 | 258.33 | -16.10 | 55.91 | 0.3268 | -1078.7 | -706.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 16.01 | 258.12 | -16.31 | 50.40 | 0.3519 | 971.0 | 780.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.48 | 257.95 | -16.49 | 49.63 | 0.3587 | 539.0 | 463.8 | |
| 0.00 | 3.72 | 0.00 | 1.98 | 16.76 | 257.89 | -16.54 | 49.10 | 0.3622 | 853.0 | 704.0 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 13.36 | 257.99 | -16.44 | 57.10 | 0.3294 | -660.0 | -536.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 16.28 | 257.53 | -16.90 | 50.72 | 0.3620 | 780.0 | 635.1 | |
| 0.00 | 5.54 | 0.00 | 2.93 | 15.28 | 257.45 | -16.98 | 53.15 | 0.3536 | 871.0 | 771.8 | |
| 0.00 | 5.45 | 0.00 | 2.90 | 16.06 | 257.09 | -17.34 | 51.92 | 0.3655 | 1075.0 | 929.8 | |
| 4.09 | 6.18 | 2.18 | 3.30 | 16.43 | 256.75 | -17.68 | 51.60 | 0.3733 | 971.8 | 740.5 | |
| 2.09 | 5.90 | 1.11 | 3.15 | 16.08 | 256.62 | -17.81 | 52.56 | 0.3718 | 983.0 | 763.9 | |
| 0.73 | -38.00 | 0.39 | -38.00 | 16.30 | 256.57 | -17.87 | 52.16 | 0.3745 | 830.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.30 | 256.57 | -17.86 | 56.77 | 0.3568 | 867.0 | 678.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.35 | 256.03 | -18.41 | 52.82 | 0.3819 | 477.0 | 423.2 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 13.20 | 255.50 | -18.93 | 60.85 | 0.3631 | -674.0 | -413.0 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 15.62 | 253.61 | -20.82 | 57.49 | 0.4077 | 833.0 | 642.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 10.57 | 252.04 | -22.39 | 70.57 | 0.3987 | 967.0 | 766.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 10.35 | 251.76 | -22.67 | 71.30 | 0.4020 | 815.0 | 654.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 19.74 | 249.90 | -24.53 | 53.51 | 0.4880 | 709.0 | 560.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 19.54 | 249.36 | -25.07 | 54.40 | 0.4930 | 555.0 | 516.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 19.44 | 249.31 | -25.12 | 54.62 | 0.4930 | 632.0 | 440.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 13.03 | 250.06 | -24.37 | 66.46 | 0.4404 | 661.0 | 526.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 13.87 | 249.87 | -24.57 | 64.85 | 0.4478 | 753.0 | 653.8 | |
| 0.00 | 2.18 | 0.00 | 1.22 | 15.32 | 249.28 | -25.16 | 62.38 | 0.4646 | 720.0 | 626.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.02 | 248.37 | -26.06 | 59.87 | 0.4877 | 671.0 | 612.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 16.79 | 248.19 | -26.24 | 60.43 | 0.4886 | 781.0 | 618.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 13.95 | 248.29 | -26.14 | 65.85 | 0.4705 | 651.0 | 502.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 16.66 | 246.42 | -28.01 | 62.06 | 0.5113 | 610.0 | 447.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 23.94 | 244.68 | -29.76 | 51.52 | 0.5816 | 540.0 | 496.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 16.02 | 245.84 | -28.60 | 63.64 | 0.5155 | 542.0 | 469.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 14.82 | 243.14 | -31.29 | 67.42 | 0.5460 | 709.0 | 588.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
