SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.08 | 743.21 | 75.97 | 418.88 | -19.20 | 256.99 | -17.44 | 143.35 | 0.4764 | 709.0 | 317.8 | |
|
previous
or next observation for the same group /

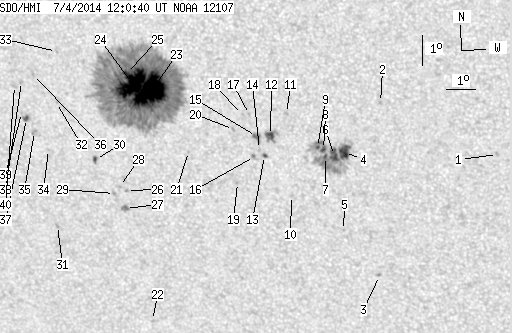

back to the solar disc SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.99 | -20.86 | 267.79 | -6.64 | 165.16 | 0.4236 | 747.0 | 647.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.16 | 264.05 | -10.38 | 155.87 | 0.4181 | 882.0 | 663.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -25.00 | 263.56 | -10.87 | 160.10 | 0.5041 | 739.0 | 585.8 | |
| 10.08 | 85.67 | 5.59 | 47.63 | -20.83 | 262.74 | -11.69 | 155.02 | 0.4504 | 1087.4 | 351.2 | |
| 0.00 | 0.55 | 0.00 | 0.31 | -23.47 | 262.48 | -11.96 | 157.02 | 0.4887 | -684.0 | -578.2 | |
| 6.81 | -4.00 | 3.79 | -4.00 | -20.94 | 262.40 | -12.03 | 154.50 | 0.4541 | 951.1 | 999999 | |
| 1.36 | -4.00 | 0.76 | -4.00 | -20.97 | 262.09 | -12.34 | 153.98 | 0.4567 | 710.4 | 999999 | |
| 2.00 | -4.00 | 1.11 | -4.00 | -20.74 | 262.05 | -12.39 | 153.65 | 0.4538 | 1039.3 | 999999 | |
| 1.00 | -4.00 | 0.56 | -4.00 | -20.68 | 261.85 | -12.58 | 153.23 | 0.4543 | 935.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.30 | 260.83 | -13.61 | 153.12 | 0.4834 | -670.0 | -585.9 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -19.56 | 260.92 | -13.52 | 150.28 | 0.4461 | -718.0 | -622.2 | |
| 4.45 | 11.36 | 2.48 | 6.33 | -20.30 | 260.31 | -14.12 | 150.08 | 0.4605 | -1028.8 | -706.5 | |
| 0.91 | 2.18 | 0.51 | 1.22 | -20.97 | 260.05 | -14.39 | 150.39 | 0.4714 | -854.1 | -654.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.77 | 259.90 | -14.53 | 149.91 | 0.4699 | -754.0 | -621.9 | |
| 1.82 | 6.00 | 1.02 | 3.35 | -20.33 | 259.84 | -14.59 | 149.31 | 0.4648 | -969.5 | -771.3 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -21.00 | 259.71 | -14.73 | 149.86 | 0.4745 | -864.0 | -714.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.61 | 259.68 | -14.76 | 148.16 | 0.4566 | -611.0 | -499.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -19.61 | 259.44 | -14.99 | 147.76 | 0.4586 | -649.0 | -438.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.89 | 259.03 | -15.40 | 149.75 | 0.4911 | -469.0 | -363.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.11 | 259.09 | -15.34 | 147.78 | 0.4680 | -713.0 | -686.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -20.87 | 257.48 | -16.95 | 146.14 | 0.4909 | -427.0 | -490.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -26.69 | 255.37 | -19.06 | 149.53 | 0.5777 | -600.0 | -546.1 | |
| 57.78 | 590.31 | 32.52 | 332.91 | -18.87 | 256.45 | -17.98 | 141.98 | 0.4761 | 1416.2 | 406.4 | |
| 42.24 | -23.00 | 23.82 | -23.00 | -18.65 | 255.83 | -18.60 | 140.74 | 0.4795 | 1256.9 | 999999 | |
| 2.45 | -23.00 | 1.38 | -23.00 | -18.32 | 255.67 | -18.76 | 140.04 | 0.4774 | 1103.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -22.22 | 255.16 | -19.27 | 144.40 | 0.5269 | -857.0 | -675.5 | |
| 1.00 | 4.63 | 0.58 | 2.71 | -22.83 | 255.04 | -19.39 | 144.96 | 0.5350 | -910.6 | -682.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.09 | 254.94 | -19.49 | 143.94 | 0.5273 | -517.0 | -497.3 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -22.33 | 254.73 | -19.70 | 143.94 | 0.5319 | -785.0 | -606.1 | |
| 1.45 | 2.82 | 0.84 | 1.64 | -21.20 | 254.23 | -20.20 | 141.88 | 0.5235 | 609.6 | 439.7 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -23.46 | 252.52 | -21.91 | 142.46 | 0.5638 | -706.0 | -599.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -19.32 | 253.14 | -21.29 | 137.95 | 0.5136 | -192.0 | -132.5 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -17.65 | 253.36 | -21.07 | 135.83 | 0.4937 | -581.0 | -561.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.89 | 252.63 | -21.80 | 139.41 | 0.5353 | -596.0 | -510.3 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -20.30 | 252.23 | -22.20 | 138.12 | 0.5330 | -889.0 | -666.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -18.42 | 252.47 | -21.97 | 135.80 | 0.5111 | -691.0 | -568.8 | |
| 1.73 | 3.54 | 1.01 | 2.07 | -19.88 | 252.01 | -22.42 | 137.28 | 0.5307 | -874.3 | -649.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -18.66 | 252.02 | -22.42 | 135.58 | 0.5182 | -345.0 | -416.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -19.68 | 251.87 | -22.56 | 136.83 | 0.5302 | -571.0 | -505.9 | |
| 0.00 | 3.27 | 0.00 | 1.90 | -18.79 | 251.75 | -22.68 | 135.45 | 0.5224 | -719.0 | -535.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
