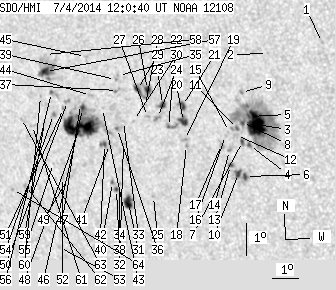

SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.93 | 409.53 | 72.12 | 255.52 | -7.62 | 238.59 | -35.84 | 107.13 | 0.6085 | -39.5 | 0.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | -4.92 | 244.74 | -29.69 | 105.23 | 0.5135 | 734.0 | 574.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -5.32 | 242.76 | -31.67 | 105.01 | 0.5434 | 669.0 | 566.1 | |
| 29.25 | 139.90 | 17.47 | 83.48 | -7.53 | 242.20 | -32.23 | 108.61 | 0.5600 | 1093.0 | 420.4 | |
| 1.00 | 2.18 | 0.60 | 1.31 | -8.19 | 241.89 | -32.55 | 109.56 | 0.5672 | 685.9 | 556.4 | |
| 0.82 | -3.00 | 0.49 | -3.00 | -7.29 | 241.93 | -32.50 | 108.05 | 0.5627 | 562.2 | 999999 | |
| 2.00 | 12.26 | 1.21 | 7.43 | -9.16 | 241.64 | -32.79 | 111.04 | 0.5750 | 882.1 | 518.8 | |
| 1.36 | 3.18 | 0.82 | 1.91 | -8.07 | 241.64 | -32.79 | 109.23 | 0.5700 | 690.8 | 512.1 | |
| 1.45 | -3.00 | 0.87 | -3.00 | -7.48 | 241.69 | -32.74 | 108.26 | 0.5668 | 714.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -6.55 | 241.73 | -32.70 | 106.69 | 0.5624 | 659.0 | 493.2 | |
| 3.00 | -6.00 | 1.82 | -6.00 | -9.07 | 241.39 | -33.04 | 110.76 | 0.5779 | 777.3 | 999999 | |
| 0.64 | 4.09 | 0.38 | 2.46 | -7.67 | 241.49 | -32.94 | 108.48 | 0.5703 | 685.0 | 506.9 | |
| 0.00 | 3.18 | 0.00 | 1.92 | -7.89 | 241.44 | -32.99 | 108.82 | 0.5720 | 685.0 | 573.0 | |
| 1.18 | 2.63 | 0.72 | 1.60 | -8.83 | 241.12 | -33.31 | 110.22 | 0.5804 | 694.4 | 559.9 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -8.37 | 241.13 | -33.30 | 109.45 | 0.5782 | 688.0 | 554.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -7.77 | 241.19 | -33.24 | 108.50 | 0.5749 | 99.0 | 287.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -7.90 | 241.03 | -33.40 | 108.63 | 0.5776 | 507.0 | 444.2 | |
| 0.00 | 4.18 | 0.00 | 2.54 | -8.19 | 240.86 | -33.58 | 109.01 | 0.5812 | 491.0 | 414.5 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -8.26 | 239.54 | -34.89 | 108.48 | 0.5990 | -780.0 | -716.2 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -8.08 | 239.49 | -34.95 | 108.15 | 0.5990 | -828.0 | -731.0 | |
| 4.81 | 12.99 | 2.97 | 8.02 | -7.52 | 239.50 | -34.93 | 107.26 | 0.5966 | 696.6 | 474.6 | |
| 3.09 | 5.00 | 1.90 | 3.07 | -7.02 | 239.51 | -34.92 | 106.46 | 0.5946 | 899.5 | 685.1 | |
| 0.64 | -20.00 | 0.39 | -20.00 | -7.69 | 238.92 | -35.51 | 107.28 | 0.6051 | 605.3 | 999999 | |
| 2.82 | 5.36 | 1.75 | 3.33 | -7.01 | 238.76 | -35.68 | 106.12 | 0.6047 | 800.6 | 511.2 | |
| 0.00 | 4.18 | 0.00 | 2.61 | -7.42 | 238.53 | -35.90 | 106.68 | 0.6093 | 673.0 | 339.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -9.90 | 238.09 | -36.34 | 110.33 | 0.6247 | -761.0 | -665.8 | |
| 3.27 | 18.26 | 2.04 | 11.42 | -6.57 | 238.23 | -36.21 | 105.19 | 0.6103 | 525.9 | 53.7 | |
| 0.00 | 1.82 | 0.00 | 1.14 | -7.41 | 238.15 | -36.28 | 106.49 | 0.6142 | 303.0 | 210.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -7.04 | 238.11 | -36.32 | 105.89 | 0.6135 | 642.0 | 463.9 | |
| 2.82 | -26.00 | 1.77 | -26.00 | -6.58 | 237.84 | -36.59 | 105.06 | 0.6154 | 263.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -7.55 | 237.60 | -36.83 | 106.48 | 0.6220 | 389.0 | 208.0 | |
| 7.36 | 9.54 | 4.73 | 6.13 | -10.12 | 237.10 | -37.34 | 110.18 | 0.6384 | -851.9 | -595.3 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -8.28 | 237.13 | -37.30 | 107.41 | 0.6307 | -454.0 | -524.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -7.59 | 237.21 | -37.23 | 106.39 | 0.6273 | -254.0 | -214.4 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -9.53 | 236.82 | -37.61 | 109.18 | 0.6395 | 676.0 | 472.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -6.17 | 237.15 | -37.29 | 104.15 | 0.6234 | 412.0 | 387.0 | |
| 0.45 | 3.54 | 0.29 | 2.26 | -7.82 | 236.95 | -37.48 | 106.63 | 0.6314 | -731.0 | -502.3 | |
| 0.00 | 2.63 | 0.00 | 1.67 | -6.64 | 237.07 | -37.37 | 104.85 | 0.6259 | 255.0 | 186.7 | |
| 1.00 | 2.00 | 0.64 | 1.29 | -9.73 | 236.68 | -37.75 | 109.40 | 0.6421 | 491.0 | 267.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -6.30 | 237.02 | -37.41 | 104.31 | 0.6254 | 579.0 | 424.8 | |
| 0.64 | 2.27 | 0.41 | 1.47 | -9.51 | 236.55 | -37.88 | 109.03 | 0.6428 | 557.4 | 455.1 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -8.33 | 236.58 | -37.85 | 107.26 | 0.6380 | -798.0 | -725.0 | |
| 1.18 | 4.81 | 0.76 | 3.10 | -8.33 | 236.38 | -38.05 | 107.19 | 0.6406 | -817.8 | -581.9 | |
| 0.00 | 0.55 | 0.00 | 0.35 | -7.22 | 236.43 | -38.00 | 105.50 | 0.6362 | -659.0 | -536.8 | |
| 0.00 | 2.18 | 0.00 | 1.40 | -6.83 | 236.00 | -38.44 | 104.75 | 0.6405 | -239.0 | -245.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -5.63 | 235.91 | -38.53 | 102.88 | 0.6381 | 566.0 | 470.6 | |
| 2.09 | 88.48 | 1.35 | 57.42 | -7.24 | 235.64 | -38.79 | 105.25 | 0.6465 | -668.5 | -621.8 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -7.12 | 235.57 | -38.86 | 105.04 | 0.6469 | -508.0 | -578.0 | |
| 37.06 | -46.00 | 24.13 | -46.00 | -7.84 | 235.45 | -38.98 | 106.07 | 0.6507 | -950.9 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -9.42 | 234.82 | -39.62 | 108.15 | 0.6643 | -743.0 | -710.2 | |
| 0.00 | 2.54 | 0.00 | 1.66 | -7.05 | 235.06 | -39.37 | 104.75 | 0.6532 | -787.0 | -686.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -7.27 | 234.88 | -39.55 | 105.01 | 0.6562 | -712.0 | -561.5 | |
| 0.00 | 2.27 | 0.00 | 1.51 | -9.43 | 234.57 | -39.86 | 108.06 | 0.6673 | -633.0 | -513.3 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -11.64 | 234.10 | -40.33 | 111.01 | 0.6814 | -554.0 | -480.2 | |
| 0.55 | 1.91 | 0.36 | 1.26 | -7.47 | 234.46 | -39.97 | 105.16 | 0.6622 | -800.2 | -684.1 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -9.00 | 234.27 | -40.16 | 107.32 | 0.6696 | -580.0 | -514.9 | |
| 0.73 | 5.36 | 0.48 | 3.52 | -6.79 | 234.45 | -39.98 | 104.15 | 0.6603 | -725.2 | -686.3 | |
| 5.72 | 27.16 | 3.77 | 17.86 | -6.15 | 234.27 | -40.16 | 103.14 | 0.6607 | -885.2 | -576.9 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -5.62 | 234.32 | -40.11 | 102.37 | 0.6587 | -230.0 | -175.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -7.73 | 234.06 | -40.37 | 105.41 | 0.6680 | -560.0 | -476.8 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -6.93 | 233.99 | -40.44 | 104.21 | 0.6665 | -481.0 | -366.9 | |
| 0.00 | 2.09 | 0.00 | 1.40 | -7.84 | 233.56 | -40.87 | 105.39 | 0.6746 | -629.0 | -545.8 | |
| 0.00 | 1.91 | 0.00 | 1.30 | -9.73 | 233.01 | -41.42 | 107.89 | 0.6874 | -568.0 | -476.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -7.64 | 233.14 | -41.30 | 104.96 | 0.6793 | -535.0 | -501.4 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -9.88 | 232.45 | -41.98 | 107.88 | 0.6947 | -573.0 | -478.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
