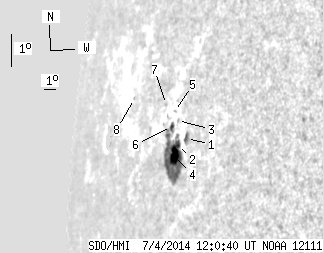

SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.63 | 78.85 | 20.40 | 118.55 | 5.94 | 203.57 | -70.86 | 84.83 | 0.9449 | -350.0 | -62.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.81 | 0.00 | 6.87 | 6.33 | 204.53 | -69.90 | 84.44 | 0.9393 | -604.0 | -533.5 | |
| 1.18 | 65.41 | 1.75 | 98.29 | 6.08 | 203.78 | -70.65 | 84.69 | 0.9437 | -497.6 | -35.7 | |
| 0.00 | 0.55 | 0.00 | 0.81 | 6.84 | 203.54 | -70.90 | 83.88 | 0.9450 | -396.0 | -350.8 | |
| 10.72 | -2.00 | 16.01 | -2.00 | 5.76 | 203.59 | -70.84 | 85.02 | 0.9448 | -443.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.38 | 7.09 | 203.16 | -71.28 | 83.60 | 0.9471 | -271.0 | -225.9 | |
| 1.73 | 5.81 | 2.64 | 8.92 | 6.63 | 203.03 | -71.40 | 84.10 | 0.9479 | -14.3 | 96.8 | |
| 0.00 | 1.09 | 0.00 | 1.74 | 7.26 | 202.30 | -72.14 | 83.41 | 0.9518 | 172.0 | 161.1 | |
| 0.00 | 0.27 | 0.00 | 0.54 | 7.26 | 198.68 | -75.75 | 83.34 | 0.9691 | 215.0 | 221.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
