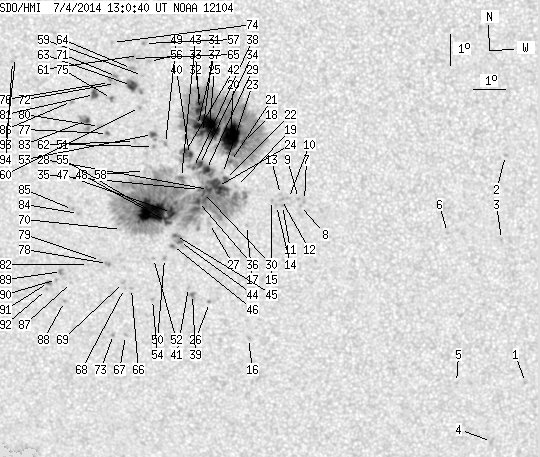

SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 205.77 | 1180.60 | 105.84 | 608.30 | -11.56 | 268.40 | -5.48 | 159.86 | 0.2738 | 404.6 | 104.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.38 | 278.97 | 5.09 | 192.88 | 0.3792 | 784.0 | 488.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.09 | 278.18 | 4.30 | 196.58 | 0.2591 | 936.0 | 625.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.75 | 278.10 | 4.22 | 193.75 | 0.3019 | 844.0 | 644.5 | |
| 0.00 | 3.54 | 0.00 | 1.92 | -20.32 | 277.92 | 4.04 | 189.38 | 0.4066 | 84.0 | 168.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.37 | 276.75 | 2.86 | 187.34 | 0.3726 | 619.0 | 460.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.52 | 276.40 | 2.52 | 188.44 | 0.2926 | 822.0 | 642.3 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -12.50 | 271.93 | -1.95 | 173.00 | 0.2743 | 930.0 | 753.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.66 | 271.80 | -2.08 | 172.62 | 0.2772 | 906.0 | 750.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.44 | 271.74 | -2.14 | 172.30 | 0.2736 | 996.0 | 822.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -12.44 | 271.43 | -2.45 | 171.20 | 0.2744 | 907.0 | 764.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -12.66 | 271.24 | -2.64 | 170.66 | 0.2786 | 929.0 | 822.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.47 | 271.21 | -2.67 | 170.45 | 0.2755 | 997.0 | 877.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -12.31 | 271.18 | -2.70 | 170.24 | 0.2730 | 1028.0 | 753.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -12.66 | 271.05 | -2.83 | 170.01 | 0.2791 | 806.0 | 717.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.50 | 270.90 | -2.99 | 169.37 | 0.2770 | 1052.0 | 839.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -16.93 | 270.09 | -3.79 | 169.61 | 0.3517 | 696.0 | 599.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -13.30 | 270.10 | -3.78 | 167.28 | 0.2928 | 600.0 | 396.0 | |
| 2.36 | 433.92 | 1.21 | 221.65 | -10.67 | 270.05 | -3.83 | 164.70 | 0.2501 | 928.1 | 500.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -12.06 | 269.81 | -4.07 | 165.24 | 0.2738 | 805.0 | 644.9 | |
| 39.06 | -18.00 | 19.97 | -18.00 | -10.49 | 269.65 | -4.23 | 162.96 | 0.2489 | 1389.2 | 999999 | |
| 1.18 | -18.00 | 0.61 | -18.00 | -11.27 | 269.63 | -4.25 | 163.82 | 0.2617 | 831.2 | 999999 | |
| 2.36 | 591.16 | 1.22 | 306.05 | -11.84 | 269.47 | -4.41 | 163.84 | 0.2717 | 1084.6 | -194.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -11.65 | 269.38 | -4.50 | 163.32 | 0.2691 | 960.0 | 696.0 | |
| 15.53 | -22.00 | 8.00 | -22.00 | -12.06 | 269.21 | -4.67 | 163.20 | 0.2765 | 1085.1 | 999999 | |
| 32.43 | -18.00 | 16.58 | -18.00 | -10.14 | 269.00 | -4.88 | 160.07 | 0.2469 | 1420.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -15.77 | 268.88 | -5.00 | 165.54 | 0.3374 | 776.0 | 682.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -13.24 | 268.94 | -4.94 | 163.51 | 0.2967 | -264.0 | -214.3 | |
| 3.00 | -22.00 | 1.55 | -22.00 | -12.16 | 268.93 | -4.95 | 162.35 | 0.2795 | 802.0 | 999999 | |
| 4.63 | -22.00 | 2.38 | -22.00 | -11.53 | 268.88 | -5.00 | 161.45 | 0.2696 | 1195.8 | 999999 | |
| 2.27 | -22.00 | 1.17 | -22.00 | -12.25 | 268.77 | -5.11 | 161.93 | 0.2818 | 749.8 | 999999 | |
| 3.00 | -18.00 | 1.53 | -18.00 | -10.36 | 268.78 | -5.10 | 159.56 | 0.2517 | 895.8 | 999999 | |
| 2.73 | -18.00 | 1.39 | -18.00 | -9.46 | 268.73 | -5.15 | 158.02 | 0.2376 | 1307.3 | 999999 | |
| 5.36 | -18.00 | 2.74 | -18.00 | -9.64 | 268.70 | -5.18 | 158.19 | 0.2408 | 1331.3 | 999999 | |
| 3.82 | -22.00 | 1.96 | -22.00 | -11.37 | 268.67 | -5.22 | 160.51 | 0.2683 | 1082.3 | 999999 | |
| 1.09 | -22.00 | 0.56 | -22.00 | -12.16 | 268.65 | -5.23 | 161.42 | 0.2810 | 687.3 | 999999 | |
| 2.82 | -22.00 | 1.46 | -22.00 | -12.54 | 268.61 | -5.27 | 161.72 | 0.2872 | 486.7 | 999999 | |
| 4.72 | -18.00 | 2.42 | -18.00 | -10.15 | 268.63 | -5.25 | 158.69 | 0.2492 | 1078.3 | 999999 | |
| 0.91 | -22.00 | 0.47 | -22.00 | -11.47 | 268.48 | -5.40 | 159.99 | 0.2709 | 778.2 | 999999 | |
| 0.82 | 4.09 | 0.43 | 2.15 | -15.51 | 268.35 | -5.53 | 163.85 | 0.3356 | 1010.7 | 792.1 | |
| 3.27 | -22.00 | 1.68 | -22.00 | -11.06 | 268.36 | -5.52 | 159.04 | 0.2651 | 1134.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.28 | 268.23 | -5.66 | 163.32 | 0.3326 | 853.0 | 685.9 | |
| 3.45 | -22.00 | 1.77 | -22.00 | -10.96 | 268.24 | -5.64 | 158.48 | 0.2644 | 979.8 | 999999 | |
| 1.00 | -22.00 | 0.52 | -22.00 | -11.78 | 268.09 | -5.79 | 159.12 | 0.2782 | 489.0 | 999999 | |
| 1.27 | 15.35 | 0.66 | 8.00 | -13.81 | 267.98 | -5.90 | 161.18 | 0.3107 | -1136.5 | -852.1 | |
| 0.82 | -44.00 | 0.43 | -44.00 | -13.62 | 267.86 | -6.02 | 160.61 | 0.3084 | -1183.4 | 999999 | |
| 0.55 | -44.00 | 0.28 | -44.00 | -13.94 | 267.76 | -6.12 | 160.66 | 0.3139 | -1104.0 | 999999 | |
| 7.27 | -22.00 | 3.77 | -22.00 | -12.89 | 267.75 | -6.13 | 159.44 | 0.2975 | -1405.7 | 999999 | |
| 1.73 | -22.00 | 0.90 | -22.00 | -13.18 | 267.59 | -6.29 | 159.28 | 0.3030 | -995.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -10.71 | 267.62 | -6.26 | 155.99 | 0.2646 | 918.0 | 729.0 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -14.36 | 267.49 | -6.39 | 160.35 | 0.3219 | -933.0 | -757.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.81 | 267.24 | -6.64 | 154.88 | 0.2687 | 694.0 | 565.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.36 | 267.14 | -6.74 | 159.37 | 0.3239 | -865.0 | -724.3 | |
| 2.09 | 5.36 | 1.07 | 2.75 | -10.43 | 267.22 | -6.66 | 154.18 | 0.2632 | 1032.3 | 713.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.68 | 267.07 | -6.81 | 160.56 | 0.3447 | -832.0 | -627.1 | |
| 41.78 | -22.00 | 21.70 | -22.00 | -12.86 | 267.13 | -6.76 | 157.50 | 0.3009 | -1366.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.16 | 267.17 | -6.71 | 149.59 | 0.2295 | 1045.0 | 857.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -7.60 | 267.03 | -6.85 | 147.75 | 0.2226 | 941.0 | 767.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.57 | 266.94 | -6.94 | 155.10 | 0.2824 | -149.0 | -238.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.59 | 266.95 | -6.93 | 149.72 | 0.2378 | 946.0 | 707.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.59 | 266.83 | -7.05 | 151.35 | 0.2535 | 981.0 | 857.9 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.97 | 266.83 | -7.05 | 147.92 | 0.2298 | 622.0 | 705.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.66 | 266.65 | -7.23 | 152.70 | 0.2708 | -716.0 | -613.3 | |
| 6.81 | 12.99 | 3.48 | 6.64 | -8.91 | 266.60 | -7.28 | 149.16 | 0.2454 | 1168.8 | 812.4 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -8.38 | 266.61 | -7.27 | 148.04 | 0.2376 | 950.0 | 775.4 | |
| 0.00 | 4.81 | 0.00 | 2.45 | -8.07 | 266.62 | -7.27 | 147.35 | 0.2331 | 758.0 | 705.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.33 | 266.41 | -7.47 | 158.47 | 0.3431 | -765.0 | -601.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.85 | 266.16 | -7.72 | 159.43 | 0.3677 | -970.0 | -761.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.33 | 266.19 | -7.69 | 157.89 | 0.3445 | -784.0 | -578.1 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -15.14 | 266.16 | -7.72 | 157.60 | 0.3417 | -882.0 | -681.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.44 | 266.16 | -7.72 | 155.48 | 0.3161 | -75.0 | -70.5 | |
| 0.00 | 3.09 | 0.00 | 1.58 | -8.63 | 266.14 | -7.74 | 146.98 | 0.2455 | 1085.0 | 814.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.85 | 266.10 | -7.78 | 147.35 | 0.2490 | 916.0 | 743.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.82 | 265.77 | -8.11 | 158.47 | 0.3695 | -837.0 | -730.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.57 | 266.04 | -7.85 | 144.10 | 0.2318 | 906.0 | 732.8 | |
| 0.55 | 3.54 | 0.28 | 1.82 | -9.32 | 265.97 | -7.91 | 147.91 | 0.2569 | 1096.2 | 660.7 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -8.82 | 265.92 | -7.96 | 146.66 | 0.2503 | 614.0 | 688.5 | |
| 0.64 | 2.00 | 0.33 | 1.03 | -10.41 | 265.81 | -8.07 | 149.60 | 0.2740 | 825.1 | 565.4 | |
| 0.00 | 2.82 | 0.00 | 1.48 | -14.53 | 265.68 | -8.20 | 155.60 | 0.3358 | -896.0 | -799.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.44 | 265.46 | -8.42 | 154.90 | 0.3359 | -742.0 | -611.0 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -10.19 | 265.57 | -8.31 | 148.43 | 0.2730 | 904.0 | 754.9 | |
| 3.36 | 5.90 | 1.72 | 3.03 | -9.19 | 265.44 | -8.44 | 145.96 | 0.2600 | 996.6 | 812.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.57 | 265.07 | -8.81 | 154.08 | 0.3406 | -607.0 | -476.0 | |
| 2.45 | 11.45 | 1.26 | 5.90 | -10.01 | 265.17 | -8.71 | 146.84 | 0.2740 | 1066.0 | 830.3 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.94 | 264.82 | -9.06 | 151.08 | 0.3188 | -906.0 | -727.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.82 | 264.63 | -9.25 | 150.39 | 0.3185 | -917.0 | -794.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -9.42 | 264.71 | -9.17 | 144.24 | 0.2701 | 1015.0 | 863.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.15 | 264.50 | -9.38 | 153.43 | 0.3532 | -581.0 | -478.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.76 | 264.25 | -9.63 | 153.62 | 0.3640 | -782.0 | -649.6 | |
| 0.00 | 3.18 | 0.00 | 1.68 | -14.80 | 264.20 | -9.68 | 152.22 | 0.3504 | -868.0 | -763.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.06 | 264.03 | -9.85 | 152.16 | 0.3554 | -695.0 | -552.5 | |
| 0.64 | 2.73 | 0.34 | 1.45 | -15.15 | 263.77 | -10.12 | 151.68 | 0.3588 | -867.6 | -681.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.38 | 263.69 | -10.19 | 151.81 | 0.3626 | -761.0 | -628.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.06 | 263.00 | -10.88 | 136.19 | 0.2712 | -911.0 | -592.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.19 | 262.90 | -10.98 | 136.25 | 0.2738 | -860.0 | -715.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
