SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.12 | 401.61 | 43.74 | 209.47 | 15.38 | 260.70 | -13.18 | 45.35 | 0.3085 | -449.0 | -229.5 | |
|
previous
or next observation for the same group /

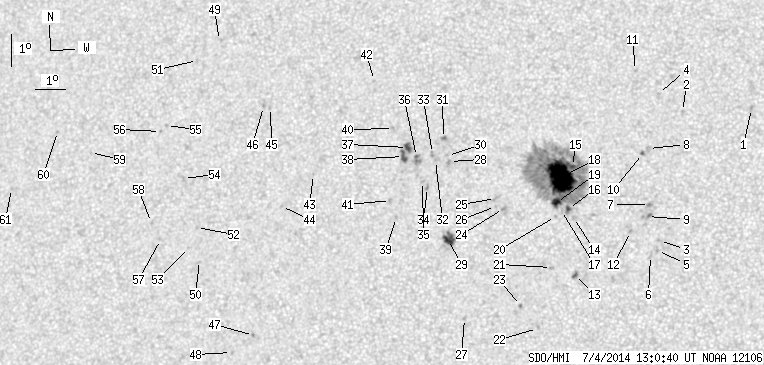

back to the solar disc SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.12 | 17.80 | 267.84 | -6.04 | 21.70 | 0.2722 | -907.0 | -686.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.69 | 265.62 | -8.26 | 28.68 | 0.2865 | -778.0 | -686.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.66 | 265.05 | -8.83 | 39.40 | 0.2362 | -947.0 | -606.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.25 | 264.81 | -9.07 | 29.94 | 0.3012 | -715.0 | -572.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.35 | 265.00 | -8.89 | 40.43 | 0.2327 | -964.0 | -714.9 | |
| 0.00 | 3.18 | 0.00 | 1.62 | 13.19 | 264.78 | -9.10 | 41.56 | 0.2332 | -810.0 | -607.5 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 14.77 | 264.69 | -9.19 | 37.57 | 0.2545 | -945.0 | -786.6 | |
| 0.00 | 3.45 | 0.00 | 1.78 | 16.52 | 264.58 | -9.30 | 33.91 | 0.2791 | -632.0 | -597.5 | |
| 0.00 | 3.82 | 0.00 | 1.95 | 14.40 | 264.64 | -9.24 | 38.66 | 0.2501 | -1022.0 | -871.5 | |
| 0.55 | 1.82 | 0.28 | 0.94 | 16.36 | 264.39 | -9.49 | 34.76 | 0.2787 | -964.0 | -781.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.97 | 264.02 | -9.86 | 30.75 | 0.3180 | -799.0 | -620.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 13.93 | 264.12 | -9.77 | 41.44 | 0.2499 | -923.0 | -759.2 | |
| 1.09 | 3.82 | 0.56 | 1.95 | 12.55 | 262.39 | -11.49 | 50.01 | 0.2549 | -1050.0 | -737.9 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 14.35 | 262.27 | -11.61 | 45.14 | 0.2762 | -835.0 | -605.6 | |
| 1.27 | 284.68 | 0.66 | 147.75 | 15.94 | 262.15 | -11.73 | 41.47 | 0.2964 | -876.7 | -338.8 | |
| 1.64 | -15.00 | 0.84 | -15.00 | 14.63 | 262.10 | -11.78 | 44.83 | 0.2815 | -1005.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 14.56 | 261.88 | -12.01 | 45.52 | 0.2834 | -323.0 | -329.8 | |
| 58.32 | -15.00 | 30.24 | -15.00 | 15.59 | 261.79 | -12.10 | 43.16 | 0.2964 | -1346.7 | 999999 | |
| 5.45 | -15.00 | 2.82 | -15.00 | 14.81 | 261.70 | -12.18 | 45.28 | 0.2883 | -1065.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.37 | 261.69 | -12.19 | 46.43 | 0.2835 | -763.0 | -592.3 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 12.79 | 261.65 | -12.24 | 50.99 | 0.2671 | -947.0 | -719.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 10.91 | 261.28 | -12.60 | 57.78 | 0.2543 | -641.0 | -559.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.61 | 260.71 | -13.17 | 56.59 | 0.2685 | -953.0 | -814.9 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 14.60 | 260.00 | -13.88 | 49.43 | 0.3070 | -1014.0 | -773.3 | |
| 0.00 | 3.45 | 0.00 | 1.80 | 14.91 | 259.72 | -14.16 | 49.19 | 0.3137 | -758.0 | -588.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 14.66 | 259.73 | -14.15 | 49.79 | 0.3110 | -642.0 | -444.6 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 11.19 | 258.94 | -14.94 | 60.98 | 0.2906 | -753.0 | -543.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 16.05 | 258.13 | -15.75 | 49.37 | 0.3453 | 843.0 | 717.9 | |
| 8.36 | 12.90 | 4.37 | 6.74 | 13.62 | 258.27 | -15.61 | 55.10 | 0.3202 | -1010.1 | -662.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.23 | 258.05 | -15.83 | 49.08 | 0.3482 | 513.0 | 414.5 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 16.76 | 257.87 | -16.01 | 48.20 | 0.3557 | 867.0 | 776.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.07 | 257.67 | -16.22 | 50.09 | 0.3513 | 889.0 | 742.5 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 16.29 | 257.55 | -16.33 | 49.80 | 0.3549 | 727.0 | 664.5 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 15.23 | 257.47 | -16.41 | 52.38 | 0.3456 | 960.0 | 823.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 15.41 | 257.29 | -16.59 | 52.23 | 0.3497 | 859.0 | 623.5 | |
| 0.45 | 7.36 | 0.24 | 3.90 | 16.19 | 257.03 | -16.85 | 50.87 | 0.3605 | 966.0 | 884.8 | |
| 3.54 | 12.90 | 1.89 | 6.86 | 16.46 | 256.70 | -17.18 | 50.76 | 0.3673 | 969.1 | 733.2 | |
| 3.45 | -37.00 | 1.84 | -37.00 | 16.18 | 256.60 | -17.29 | 51.55 | 0.3659 | 906.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.28 | 256.52 | -17.36 | 56.12 | 0.3497 | 912.0 | 761.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 17.05 | 256.18 | -17.70 | 50.28 | 0.3795 | 595.0 | 513.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 14.80 | 256.28 | -17.60 | 55.20 | 0.3575 | 793.0 | 694.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.55 | 255.38 | -18.50 | 48.40 | 0.4039 | -699.0 | -534.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 15.57 | 253.64 | -20.24 | 56.92 | 0.3994 | 680.0 | 584.2 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 14.55 | 252.66 | -21.22 | 60.27 | 0.4051 | 698.0 | 623.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.64 | 251.94 | -21.94 | 54.64 | 0.4385 | 674.0 | 618.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.67 | 251.69 | -22.19 | 54.86 | 0.4419 | 703.0 | 515.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 10.55 | 252.07 | -21.81 | 70.21 | 0.3899 | 919.0 | 734.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 10.02 | 251.37 | -22.51 | 72.01 | 0.3981 | 815.0 | 662.7 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 19.72 | 249.86 | -24.02 | 53.03 | 0.4816 | 477.0 | 552.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 12.83 | 250.05 | -23.83 | 66.49 | 0.4314 | 595.0 | 507.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 19.07 | 249.18 | -24.70 | 54.88 | 0.4848 | 434.0 | 372.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 13.84 | 249.84 | -24.04 | 64.47 | 0.4402 | 776.0 | 599.7 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 13.22 | 249.63 | -24.25 | 65.96 | 0.4396 | 609.0 | 562.3 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 15.36 | 249.21 | -24.67 | 61.88 | 0.4582 | 720.0 | 648.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.00 | 248.39 | -25.49 | 59.41 | 0.4800 | 646.0 | 523.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 16.81 | 248.21 | -25.67 | 59.93 | 0.4811 | 661.0 | 532.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 13.45 | 248.64 | -25.24 | 66.24 | 0.4550 | 685.0 | 524.6 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 13.97 | 248.27 | -25.61 | 65.45 | 0.4631 | 663.0 | 477.4 | |
| 0.00 | 0.55 | 0.00 | 0.31 | 16.09 | 245.82 | -28.06 | 63.13 | 0.5087 | 689.0 | 445.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 16.72 | 244.52 | -29.36 | 62.91 | 0.5295 | 738.0 | 526.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 14.90 | 243.13 | -30.75 | 66.98 | 0.5389 | 888.0 | 634.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
