SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.63 | 723.97 | 73.23 | 407.02 | -19.27 | 256.94 | -16.94 | 144.22 | 0.4727 | 635.2 | 323.8 | |
|
previous
or next observation for the same group /

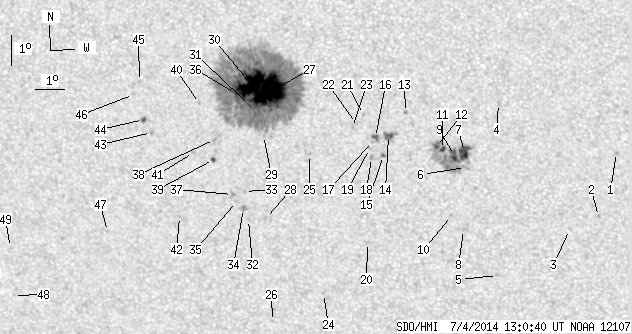

back to the solar disc SDO HMI 2014-07-04 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.94 | -20.79 | 267.78 | -6.11 | 166.26 | 0.4204 | 691.0 | 561.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.95 | 267.08 | -6.80 | 166.10 | 0.4559 | 717.0 | 549.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -23.40 | 266.08 | -7.80 | 164.46 | 0.4666 | 660.0 | 583.6 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -19.19 | 263.99 | -9.89 | 156.92 | 0.4154 | 825.0 | 604.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -25.00 | 263.53 | -10.35 | 160.97 | 0.5014 | 861.0 | 619.2 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -21.33 | 262.75 | -11.13 | 156.56 | 0.4538 | 589.0 | 448.9 | |
| 10.45 | 70.85 | 5.78 | 39.31 | -20.83 | 262.76 | -11.12 | 156.09 | 0.4466 | 1077.5 | 351.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.43 | 262.51 | -11.37 | 157.99 | 0.4847 | -751.0 | -610.9 | |
| 6.72 | -7.00 | 3.73 | -7.00 | -20.93 | 262.42 | -11.46 | 155.55 | 0.4503 | 939.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.95 | 262.15 | -11.74 | 156.95 | 0.4803 | -860.0 | -654.5 | |
| 2.09 | -7.00 | 1.16 | -7.00 | -20.73 | 262.03 | -11.85 | 154.63 | 0.4501 | 970.0 | 999999 | |
| 1.54 | -7.00 | 0.86 | -7.00 | -20.63 | 261.84 | -12.04 | 154.18 | 0.4500 | 907.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.52 | 260.90 | -12.98 | 151.22 | 0.4414 | -855.0 | -696.3 | |
| 3.54 | 8.08 | 1.97 | 4.50 | -20.29 | 260.27 | -13.61 | 150.96 | 0.4566 | -1034.5 | -813.5 | |
| 0.64 | 2.00 | 0.36 | 1.12 | -20.96 | 260.04 | -13.84 | 151.31 | 0.4672 | -842.7 | -669.5 | |
| 1.73 | 4.00 | 0.96 | 2.23 | -20.36 | 259.83 | -14.05 | 150.27 | 0.4609 | -970.1 | -814.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.49 | 259.71 | -14.17 | 150.23 | 0.4635 | -746.0 | -558.8 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -21.03 | 259.63 | -14.25 | 150.68 | 0.4713 | -765.0 | -629.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -20.73 | 259.59 | -14.29 | 150.28 | 0.4676 | -703.0 | -524.9 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -23.91 | 259.18 | -14.70 | 152.96 | 0.5123 | -498.0 | -434.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.60 | 259.50 | -14.38 | 148.80 | 0.4535 | -471.0 | -425.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.90 | 259.23 | -14.65 | 148.71 | 0.4596 | -682.0 | -592.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.04 | 259.09 | -14.79 | 148.62 | 0.4625 | -726.0 | -607.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -25.70 | 257.41 | -16.47 | 152.06 | 0.5473 | -114.0 | -108.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.96 | 257.54 | -16.34 | 147.19 | 0.4869 | -670.0 | -508.7 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -26.72 | 255.43 | -18.45 | 150.35 | 0.5735 | -631.0 | -422.2 | |
| 59.77 | 581.71 | 33.53 | 326.98 | -18.89 | 256.45 | -17.44 | 142.84 | 0.4713 | 1396.9 | 412.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -23.15 | 255.74 | -18.14 | 147.05 | 0.5284 | -712.0 | -545.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.35 | 256.04 | -17.84 | 144.14 | 0.4924 | -14.0 | 10.8 | |
| 39.70 | -27.00 | 22.32 | -27.00 | -18.67 | 255.83 | -18.05 | 141.59 | 0.4745 | 1256.1 | 999999 | |
| 1.00 | -27.00 | 0.57 | -27.00 | -19.36 | 255.68 | -18.20 | 142.32 | 0.4840 | 650.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -23.19 | 255.14 | -18.74 | 146.26 | 0.5338 | -637.0 | -464.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.24 | 255.14 | -18.74 | 145.16 | 0.5227 | -938.0 | -772.0 | |
| 0.00 | 4.18 | 0.00 | 2.44 | -22.82 | 255.02 | -18.86 | 145.67 | 0.5305 | -898.0 | -742.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.59 | 254.81 | -19.07 | 145.11 | 0.5295 | -624.0 | -496.8 | |
| 0.82 | -27.00 | 0.46 | -27.00 | -18.97 | 255.25 | -18.63 | 141.15 | 0.4836 | 883.6 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.90 | -22.35 | 254.70 | -19.18 | 144.69 | 0.5277 | -756.0 | -589.3 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -20.51 | 254.33 | -19.55 | 141.90 | 0.5098 | -192.0 | -125.3 | |
| 1.27 | 2.18 | 0.74 | 1.26 | -21.18 | 254.21 | -19.67 | 142.58 | 0.5186 | 768.6 | 606.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.33 | 253.97 | -19.91 | 139.82 | 0.4999 | 523.0 | 402.2 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -20.96 | 253.54 | -20.34 | 141.40 | 0.5222 | -463.0 | -329.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -23.14 | 252.71 | -21.17 | 143.00 | 0.5538 | -692.0 | -546.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -20.32 | 252.17 | -21.71 | 138.77 | 0.5284 | -821.0 | -735.4 | |
| 1.36 | 2.73 | 0.79 | 1.59 | -19.90 | 251.95 | -21.93 | 137.92 | 0.5260 | -905.3 | -718.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -18.64 | 251.99 | -21.89 | 136.23 | 0.5126 | -491.0 | -379.3 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -19.08 | 251.72 | -22.16 | 136.50 | 0.5198 | -656.0 | -380.2 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -23.71 | 250.02 | -23.86 | 140.45 | 0.5839 | -563.0 | -427.4 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -26.02 | 245.98 | -27.91 | 138.93 | 0.6425 | -553.0 | -490.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -24.35 | 246.28 | -27.60 | 137.28 | 0.6244 | -636.0 | -584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
