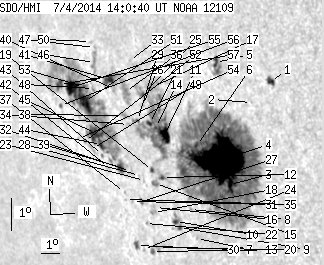

SDO HMI 2014-07-04 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 224.16 | 1210.63 | 195.53 | 1051.66 | -7.78 | 219.29 | -54.04 | 101.88 | 0.8206 | 170.9 | -14.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 5.90 | 2.64 | 4.51 | -5.66 | 224.46 | -48.87 | 100.23 | 0.7639 | 678.4 | 476.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -6.35 | 223.48 | -49.85 | 100.91 | 0.7759 | -123.0 | -80.7 | |
| 2.18 | 811.17 | 1.78 | 673.49 | -8.95 | 221.97 | -51.36 | 103.84 | 0.7969 | 726.0 | 182.6 | |
| 117.35 | -3.00 | 95.99 | -3.00 | -8.19 | 221.72 | -51.61 | 102.84 | 0.7979 | 925.1 | 999999 | |
| 3.09 | 11.99 | 2.49 | 9.66 | -5.18 | 221.87 | -51.45 | 99.13 | 0.7911 | -581.6 | -493.4 | |
| 2.27 | -3.00 | 1.91 | -3.00 | -7.81 | 220.53 | -52.80 | 102.11 | 0.8093 | 246.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -10.73 | 219.88 | -53.45 | 105.50 | 0.8212 | 440.0 | 277.3 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -9.83 | 219.79 | -53.54 | 104.40 | 0.8203 | -556.0 | -460.4 | |
| 1.27 | 10.45 | 1.12 | 9.19 | -10.43 | 219.06 | -54.27 | 104.94 | 0.8285 | 375.9 | 276.3 | |
| 2.00 | -9.00 | 1.76 | -9.00 | -10.25 | 218.89 | -54.44 | 104.69 | 0.8297 | 261.9 | 999999 | |
| 13.53 | -3.00 | 11.80 | -3.00 | -7.54 | 218.91 | -54.42 | 101.46 | 0.8248 | 563.3 | 999999 | |
| 1.73 | 6.18 | 1.53 | 5.47 | -8.89 | 218.52 | -54.81 | 103.00 | 0.8308 | -749.8 | -500.1 | |
| 0.00 | 5.63 | 0.00 | 5.14 | -11.12 | 217.73 | -55.60 | 105.45 | 0.8421 | -659.0 | -491.2 | |
| 1.00 | -3.00 | 0.88 | -3.00 | -7.34 | 218.46 | -54.87 | 101.14 | 0.8288 | 190.1 | 999999 | |
| 0.00 | 4.72 | 0.00 | 4.23 | -9.10 | 218.09 | -55.24 | 103.16 | 0.8352 | -832.0 | -683.1 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -9.86 | 217.91 | -55.42 | 104.01 | 0.8382 | -360.0 | -380.1 | |
| 0.00 | 11.44 | 0.00 | 10.01 | -6.07 | 218.57 | -54.76 | 99.64 | 0.8259 | -87.0 | -164.0 | |
| 0.00 | 3.36 | 0.00 | 3.05 | -10.02 | 217.75 | -55.58 | 104.17 | 0.8399 | -234.0 | -252.0 | |
| 1.36 | 2.18 | 1.22 | 1.95 | -8.70 | 218.02 | -55.31 | 102.67 | 0.8352 | -684.9 | -647.3 | |
| 1.36 | 2.82 | 1.26 | 2.60 | -11.26 | 217.35 | -55.98 | 105.53 | 0.8458 | -689.1 | -597.4 | |
| 2.18 | -3.00 | 1.93 | -3.00 | -7.23 | 218.16 | -55.17 | 100.96 | 0.8316 | 177.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -10.39 | 217.21 | -56.12 | 104.48 | 0.8455 | 131.0 | 133.2 | |
| 0.00 | 0.82 | 0.00 | 0.74 | -9.03 | 217.50 | -55.83 | 102.96 | 0.8405 | -248.0 | -299.9 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -11.22 | 216.85 | -56.47 | 105.37 | 0.8501 | -616.0 | -495.5 | |
| 1.45 | 9.17 | 1.29 | 8.18 | -6.35 | 217.93 | -55.39 | 99.86 | 0.8324 | 52.4 | -137.7 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -6.69 | 217.88 | -55.45 | 100.26 | 0.8334 | -301.0 | -245.2 | |
| 0.00 | 2.63 | 0.00 | 2.42 | -9.70 | 217.17 | -56.16 | 103.68 | 0.8447 | -673.0 | -556.7 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -8.89 | 217.26 | -56.07 | 102.74 | 0.8425 | -256.0 | -379.0 | |
| 0.82 | -3.00 | 0.74 | -3.00 | -7.17 | 217.52 | -55.81 | 100.76 | 0.8375 | 291.2 | 999999 | |
| 2.09 | 4.09 | 1.97 | 3.85 | -11.11 | 216.49 | -56.84 | 105.17 | 0.8531 | -595.0 | -479.1 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -9.73 | 216.66 | -56.67 | 103.60 | 0.8493 | -460.0 | -412.7 | |
| 0.00 | 2.54 | 0.00 | 2.35 | -8.79 | 216.78 | -56.55 | 102.53 | 0.8467 | -555.0 | -491.8 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -5.32 | 217.38 | -55.95 | 98.55 | 0.8363 | -561.0 | -443.1 | |
| 0.00 | 1.91 | 0.00 | 1.75 | -7.32 | 216.99 | -56.34 | 100.85 | 0.8427 | -259.0 | -314.1 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -9.68 | 216.27 | -57.06 | 103.47 | 0.8527 | -454.0 | -394.9 | |
| 0.00 | 16.26 | 0.00 | 14.81 | -6.30 | 217.01 | -56.32 | 99.65 | 0.8411 | -567.0 | -536.5 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -9.46 | 216.27 | -57.06 | 103.22 | 0.8524 | -431.0 | -380.0 | |
| 0.00 | 2.91 | 0.00 | 2.67 | -7.05 | 216.76 | -56.57 | 100.49 | 0.8444 | -351.0 | -314.9 | |
| 5.27 | 246.77 | 4.95 | 240.67 | -8.69 | 216.24 | -57.09 | 102.31 | 0.8515 | -653.4 | -401.7 | |
| 0.00 | 2.82 | 0.00 | 2.61 | -6.26 | 216.40 | -56.93 | 99.51 | 0.8467 | -361.0 | -422.9 | |
| 7.08 | 12.35 | 6.60 | 11.48 | -5.97 | 216.10 | -57.22 | 99.12 | 0.8490 | -772.7 | -594.7 | |
| 0.00 | 1.09 | 0.00 | 1.04 | -8.72 | 215.53 | -57.79 | 102.22 | 0.8578 | 126.0 | 89.4 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -8.36 | 215.27 | -58.06 | 101.75 | 0.8596 | -287.0 | -256.7 | |
| 4.72 | -39.00 | 4.54 | -39.00 | -8.02 | 215.29 | -58.03 | 101.36 | 0.8589 | -612.9 | 999999 | |
| 13.44 | -39.00 | 13.00 | -39.00 | -7.69 | 215.02 | -58.31 | 100.94 | 0.8609 | -797.7 | 999999 | |
| 0.00 | 10.17 | 0.00 | 9.66 | -5.48 | 215.38 | -57.95 | 98.44 | 0.8550 | -391.0 | -504.6 | |
| 0.00 | 1.36 | 0.00 | 1.29 | -5.01 | 215.45 | -57.88 | 97.90 | 0.8538 | -619.0 | -590.3 | |
| 0.00 | 2.27 | 0.00 | 2.18 | -6.29 | 215.18 | -58.15 | 99.35 | 0.8577 | -723.0 | -616.3 | |
| 0.00 | 2.91 | 0.00 | 2.84 | -8.17 | 214.73 | -58.60 | 101.44 | 0.8640 | -265.0 | -256.7 | |
| 0.00 | 0.64 | 0.00 | 0.60 | -4.84 | 215.24 | -58.09 | 97.67 | 0.8555 | -572.0 | -539.1 | |
| 17.08 | -39.00 | 16.66 | -39.00 | -6.72 | 214.57 | -58.76 | 99.75 | 0.8636 | -815.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.53 | -7.97 | 214.29 | -59.03 | 101.14 | 0.8675 | -311.0 | -266.1 | |
| 0.27 | -39.00 | 0.27 | -39.00 | -6.26 | 214.60 | -58.73 | 99.22 | 0.8628 | -719.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.91 | -7.90 | 213.95 | -59.38 | 101.00 | 0.8703 | -157.0 | -114.3 | |
| 13.08 | -39.00 | 13.01 | -39.00 | -6.32 | 213.86 | -59.47 | 99.19 | 0.8692 | -514.4 | 999999 | |
| 0.82 | 1.73 | 0.83 | 1.76 | -6.92 | 213.06 | -60.27 | 99.74 | 0.8766 | -178.2 | -126.5 | |
| 5.27 | -39.00 | 5.36 | -39.00 | -6.27 | 213.13 | -60.19 | 99.01 | 0.8753 | -328.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
