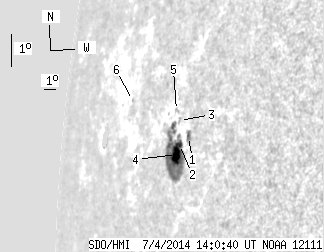

SDO HMI 2014-07-04 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.62 | 83.56 | 20.61 | 119.14 | 5.94 | 203.63 | -69.70 | 84.86 | 0.9380 | -436.1 | -68.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 5.63 | 2.10 | 7.65 | 6.39 | 204.50 | -68.83 | 84.40 | 0.9327 | -626.1 | -511.0 | |
| 2.18 | 73.66 | 3.06 | 105.12 | 6.11 | 203.79 | -69.54 | 84.69 | 0.9371 | -512.8 | -29.3 | |
| 0.00 | 1.63 | 0.00 | 2.32 | 6.83 | 203.57 | -69.76 | 83.91 | 0.9384 | -404.0 | -352.8 | |
| 10.90 | -2.00 | 15.45 | -2.00 | 5.79 | 203.61 | -69.72 | 85.02 | 0.9382 | -447.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 2.87 | 7.12 | 203.20 | -70.13 | 83.60 | 0.9405 | -375.0 | -292.1 | |
| 0.00 | 0.64 | 0.00 | 1.18 | 7.19 | 198.63 | -74.70 | 83.43 | 0.9645 | 278.0 | 283.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
