SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.08 | 93.91 | 6.04 | 56.71 | 10.60 | 307.10 | 34.32 | 284.03 | 0.5736 | 142.2 | 191.2 | |
|
previous
or next observation for the same group /

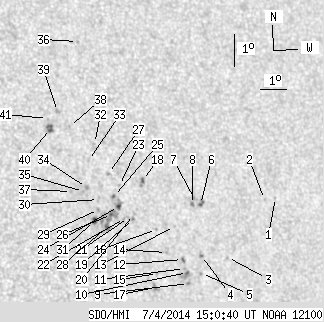

back to the solar disc SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.35 | 10.84 | 312.70 | 39.93 | 282.97 | 0.6492 | -657.0 | -539.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 10.79 | 312.25 | 39.48 | 283.00 | 0.6432 | -509.0 | -528.7 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 9.07 | 310.54 | 37.76 | 280.61 | 0.6175 | -644.0 | -503.1 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 9.16 | 309.54 | 36.76 | 280.96 | 0.6040 | -860.0 | -705.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 8.61 | 309.47 | 36.70 | 280.06 | 0.6023 | -812.0 | -657.7 | |
| 0.64 | 3.36 | 0.40 | 2.10 | 10.73 | 309.71 | 36.93 | 283.48 | 0.6093 | -872.0 | -667.6 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 10.92 | 309.50 | 36.73 | 283.85 | 0.6070 | -729.0 | -597.4 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 10.74 | 309.40 | 36.62 | 283.58 | 0.6052 | -863.0 | -761.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 8.32 | 308.94 | 36.17 | 279.67 | 0.5945 | -715.0 | -554.3 | |
| 0.36 | 5.54 | 0.22 | 3.40 | 8.66 | 308.94 | 36.17 | 280.24 | 0.5950 | -797.8 | -470.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 8.79 | 308.84 | 36.07 | 280.47 | 0.5938 | -818.0 | -663.6 | |
| 0.54 | 2.27 | 0.33 | 1.40 | 9.07 | 308.80 | 36.02 | 280.94 | 0.5937 | -759.5 | -672.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 10.09 | 308.62 | 35.84 | 282.69 | 0.5931 | -409.0 | -373.8 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 9.30 | 308.21 | 35.44 | 281.46 | 0.5860 | -740.0 | -526.8 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 8.67 | 307.80 | 35.03 | 280.47 | 0.5792 | 569.0 | 364.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 10.02 | 307.92 | 35.15 | 282.75 | 0.5834 | -636.0 | -566.2 | |
| 0.00 | 4.27 | 0.00 | 2.58 | 8.24 | 307.68 | 34.91 | 279.76 | 0.5768 | 817.0 | 545.3 | |
| 0.73 | 4.27 | 0.44 | 2.60 | 11.54 | 307.60 | 34.82 | 285.42 | 0.5825 | -824.2 | -740.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 10.38 | 307.10 | 34.32 | 283.59 | 0.5728 | 630.0 | 477.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.50 | 307.12 | 34.34 | 283.80 | 0.5733 | 420.0 | 395.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.42 | 306.92 | 34.14 | 283.71 | 0.5703 | 654.0 | 539.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 10.39 | 306.76 | 33.99 | 283.71 | 0.5681 | 703.0 | 526.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.41 | 306.71 | 33.94 | 285.49 | 0.5700 | 544.0 | 394.5 | |
| 1.36 | 5.09 | 0.82 | 3.05 | 10.77 | 306.59 | 33.81 | 284.41 | 0.5666 | 744.7 | 501.1 | |
| 0.36 | 2.09 | 0.22 | 1.25 | 11.08 | 306.44 | 33.67 | 285.01 | 0.5654 | 757.5 | 533.6 | |
| 0.64 | 19.89 | 0.38 | 11.87 | 10.53 | 306.30 | 33.52 | 284.09 | 0.5619 | 984.1 | 695.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 11.79 | 306.35 | 33.58 | 286.28 | 0.5661 | 578.0 | 375.9 | |
| 1.27 | -26.00 | 0.76 | -26.00 | 10.14 | 306.06 | 33.29 | 283.46 | 0.5576 | 749.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 10.70 | 305.83 | 33.06 | 284.53 | 0.5558 | 820.0 | 708.5 | |
| 0.00 | 2.36 | 0.00 | 1.41 | 11.01 | 305.87 | 33.10 | 285.06 | 0.5572 | 740.0 | 608.4 | |
| 1.82 | 3.18 | 1.08 | 1.89 | 10.37 | 305.64 | 32.87 | 284.00 | 0.5523 | 981.8 | 801.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 12.73 | 305.96 | 33.19 | 288.05 | 0.5637 | 697.0 | 472.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 12.22 | 305.66 | 32.89 | 287.27 | 0.5579 | 637.0 | 506.9 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 11.39 | 305.48 | 32.70 | 285.88 | 0.5527 | 797.0 | 659.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 11.27 | 305.35 | 32.58 | 285.71 | 0.5506 | 813.0 | 693.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 15.92 | 305.86 | 33.09 | 293.51 | 0.5746 | 544.0 | 421.1 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 11.28 | 304.91 | 32.13 | 285.89 | 0.5444 | 923.0 | 689.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 13.29 | 305.12 | 32.34 | 289.38 | 0.5540 | 669.0 | 611.9 | |
| 0.00 | 2.54 | 0.00 | 1.51 | 13.76 | 304.74 | 31.97 | 290.38 | 0.5507 | 856.0 | 605.3 | |
| 2.36 | 5.09 | 1.39 | 3.00 | 13.25 | 304.41 | 31.63 | 289.63 | 0.5441 | 943.5 | 793.0 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 13.56 | 304.34 | 31.57 | 290.21 | 0.5444 | 659.0 | 589.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
