SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.33 | 0.00 | 8.40 | 4.88 | 262.61 | -10.17 | 117.90 | 0.2294 | 346.9 | 357.6 | |
|
previous
or next observation for the same group /

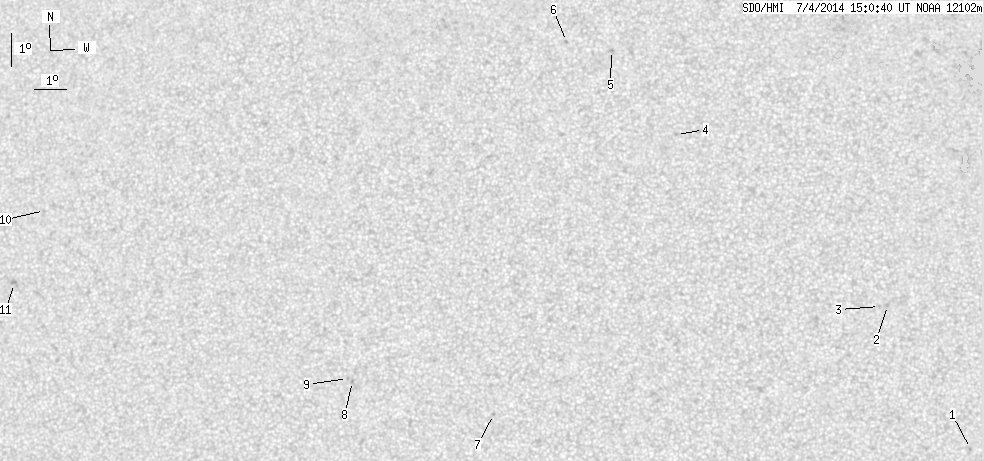

back to the solar disc SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.63 | -0.35 | 279.09 | 6.31 | 240.52 | 0.1269 | -908.0 | -738.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.02 | 276.57 | 3.79 | 281.91 | 0.0677 | -994.0 | -778.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.99 | 276.32 | 3.55 | 282.24 | 0.0634 | -908.0 | -659.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.25 | 270.10 | -2.68 | 23.73 | 0.1152 | 893.0 | 640.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.83 | 268.05 | -4.73 | 28.31 | 0.1708 | 892.0 | 723.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 12.10 | 266.64 | -6.14 | 34.09 | 0.1874 | 905.0 | 755.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 0.69 | 264.52 | -8.26 | 106.96 | 0.1508 | 846.0 | 642.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 1.66 | 260.14 | -12.63 | 96.82 | 0.2211 | 917.0 | 768.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 1.75 | 259.99 | -12.79 | 96.33 | 0.2236 | 821.0 | 661.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 6.71 | 250.13 | -22.64 | 80.35 | 0.3895 | 597.0 | 436.4 | |
| 0.00 | 3.81 | 0.00 | 2.06 | 4.47 | 249.22 | -23.55 | 86.24 | 0.4009 | 755.0 | 704.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
