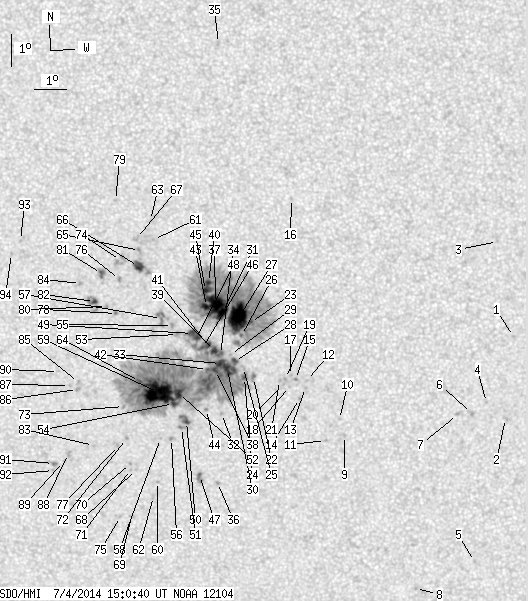

SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.70 | 1194.40 | 102.06 | 614.25 | -11.56 | 268.38 | -4.39 | 163.69 | 0.2682 | 365.6 | 118.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.13 | 278.20 | 5.42 | 200.52 | 0.2657 | 920.0 | 704.5 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -13.72 | 278.00 | 5.22 | 196.89 | 0.3058 | 780.0 | 707.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -8.15 | 277.66 | 4.89 | 203.14 | 0.2154 | 849.0 | 651.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.21 | 277.39 | 4.62 | 195.48 | 0.2948 | 859.0 | 628.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.33 | 277.12 | 4.34 | 191.07 | 0.3760 | 840.0 | 670.8 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -13.56 | 276.93 | 4.15 | 193.70 | 0.2985 | 973.0 | 803.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.58 | 276.49 | 3.71 | 192.27 | 0.2973 | 813.0 | 690.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.21 | 275.23 | 2.46 | 186.05 | 0.3856 | 781.0 | 590.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.24 | 272.94 | 0.17 | 180.54 | 0.3016 | 120.0 | 102.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.73 | 272.79 | 0.01 | 180.03 | 0.2931 | 780.0 | 563.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.40 | 272.34 | -0.43 | 178.62 | 0.3044 | 752.0 | 609.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.49 | 271.76 | -1.02 | 176.34 | 0.2728 | 802.0 | 731.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -12.71 | 271.72 | -1.05 | 176.27 | 0.2766 | 922.0 | 781.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -13.06 | 271.53 | -1.24 | 175.70 | 0.2826 | 848.0 | 636.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.46 | 271.41 | -1.36 | 175.10 | 0.2727 | 1100.0 | 923.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.80 | 271.32 | -1.45 | 171.77 | 0.1768 | 775.0 | 638.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -12.33 | 271.26 | -1.52 | 174.50 | 0.2708 | 947.0 | 780.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -12.68 | 271.22 | -1.55 | 174.50 | 0.2767 | 807.0 | 634.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -12.43 | 271.10 | -1.67 | 173.97 | 0.2727 | 968.0 | 845.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.62 | 271.04 | -1.74 | 173.82 | 0.2760 | 944.0 | 741.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -12.49 | 270.91 | -1.86 | 173.33 | 0.2741 | 969.0 | 809.3 | |
| 0.00 | 4.72 | 0.00 | 2.43 | -12.40 | 270.10 | -2.67 | 170.41 | 0.2744 | 958.0 | 802.9 | |
| 1.45 | 435.10 | 0.74 | 221.95 | -10.67 | 270.03 | -2.75 | 168.90 | 0.2458 | 938.2 | 495.7 | |
| 1.91 | 596.85 | 0.98 | 308.41 | -12.40 | 269.82 | -2.95 | 169.42 | 0.2753 | 951.4 | -186.0 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -12.08 | 269.79 | -2.98 | 169.10 | 0.2701 | 820.0 | 706.6 | |
| 0.73 | -23.00 | 0.37 | -23.00 | -11.07 | 269.74 | -3.03 | 168.14 | 0.2536 | 831.5 | 999999 | |
| 38.05 | -23.00 | 19.44 | -23.00 | -10.51 | 269.66 | -3.12 | 167.31 | 0.2445 | 1385.4 | 999999 | |
| 2.54 | -24.00 | 1.31 | -24.00 | -11.89 | 269.52 | -3.26 | 167.96 | 0.2679 | 1080.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.67 | 269.39 | -3.38 | 167.34 | 0.2647 | 963.0 | 851.6 | |
| 6.99 | -24.00 | 3.60 | -24.00 | -12.15 | 269.29 | -3.48 | 167.38 | 0.2729 | 1075.6 | 999999 | |
| 10.53 | -23.00 | 5.38 | -23.00 | -10.35 | 269.16 | -3.61 | 165.21 | 0.2439 | 1329.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.54 | 269.08 | -3.69 | 167.76 | 0.2965 | -995.0 | -722.7 | |
| 5.27 | -24.00 | 2.71 | -24.00 | -11.96 | 269.08 | -3.70 | 166.46 | 0.2706 | 1055.6 | 999999 | |
| 2.18 | -24.00 | 1.12 | -24.00 | -11.67 | 269.08 | -3.69 | 166.22 | 0.2659 | 1120.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -2.04 | 269.11 | -3.67 | 145.13 | 0.1123 | 820.0 | 693.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.75 | 268.92 | -3.86 | 168.74 | 0.3331 | 939.0 | 760.9 | |
| 27.70 | -23.00 | 14.13 | -23.00 | -10.07 | 268.95 | -3.83 | 164.06 | 0.2403 | 1401.8 | 999999 | |
| 2.36 | -24.00 | 1.22 | -24.00 | -12.18 | 268.92 | -3.86 | 166.10 | 0.2749 | 781.4 | 999999 | |
| 4.27 | -24.00 | 2.19 | -24.00 | -11.55 | 268.90 | -3.88 | 165.44 | 0.2647 | 1254.5 | 999999 | |
| 2.36 | -23.00 | 1.20 | -23.00 | -9.42 | 268.74 | -4.03 | 162.40 | 0.2306 | 1332.7 | 999999 | |
| 2.72 | -24.00 | 1.40 | -24.00 | -11.39 | 268.71 | -4.06 | 164.61 | 0.2629 | 1186.6 | 999999 | |
| 1.09 | -24.00 | 0.56 | -24.00 | -12.15 | 268.67 | -4.11 | 165.21 | 0.2754 | 738.9 | 999999 | |
| 5.18 | -23.00 | 2.64 | -23.00 | -10.17 | 268.67 | -4.11 | 163.07 | 0.2432 | 1149.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -13.42 | 268.62 | -4.16 | 166.16 | 0.2963 | -976.0 | -834.8 | |
| 2.72 | -23.00 | 1.39 | -23.00 | -9.67 | 268.64 | -4.13 | 162.35 | 0.2352 | 1360.2 | 999999 | |
| 1.18 | -24.00 | 0.61 | -24.00 | -11.46 | 268.52 | -4.25 | 164.01 | 0.2648 | 838.5 | 999999 | |
| 1.00 | 4.90 | 0.52 | 2.58 | -15.53 | 268.35 | -4.42 | 166.98 | 0.3314 | 1030.4 | 764.7 | |
| 4.09 | -24.00 | 2.10 | -24.00 | -11.14 | 268.34 | -4.43 | 163.01 | 0.2606 | 1101.8 | 999999 | |
| 4.63 | -24.00 | 2.37 | -24.00 | -11.02 | 268.22 | -4.55 | 162.42 | 0.2592 | 1011.3 | 999999 | |
| 1.73 | 7.54 | 0.90 | 3.92 | -13.80 | 267.98 | -4.80 | 164.50 | 0.3052 | -1130.3 | -1015.4 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -13.99 | 267.82 | -4.96 | 164.18 | 0.3090 | -1127.0 | -889.6 | |
| 8.36 | -24.00 | 4.33 | -24.00 | -12.91 | 267.75 | -5.03 | 162.91 | 0.2920 | -1378.8 | 999999 | |
| 0.00 | 3.81 | 0.00 | 1.96 | -11.05 | 267.75 | -5.02 | 160.78 | 0.2622 | 483.0 | 202.5 | |
| 2.54 | -24.00 | 1.32 | -24.00 | -13.23 | 267.58 | -5.19 | 162.72 | 0.2979 | -972.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -10.77 | 267.60 | -5.17 | 159.87 | 0.2586 | 883.0 | 638.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -14.35 | 267.49 | -5.28 | 163.54 | 0.3161 | -1047.0 | -790.4 | |
| 0.00 | 10.72 | 0.00 | 5.49 | -10.55 | 267.26 | -5.51 | 158.36 | 0.2571 | 881.0 | 757.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -14.35 | 267.15 | -5.63 | 162.52 | 0.3178 | -797.0 | -658.0 | |
| 44.77 | -24.00 | 23.21 | -24.00 | -12.88 | 267.12 | -5.66 | 160.89 | 0.2948 | -1350.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.73 | 267.01 | -5.76 | 163.42 | 0.3402 | -806.0 | -642.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.08 | 267.06 | -5.72 | 153.28 | 0.2203 | 961.0 | 829.5 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -16.21 | 266.87 | -5.91 | 163.46 | 0.3485 | -773.0 | -609.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.49 | 266.97 | -5.80 | 151.67 | 0.2121 | 781.0 | 674.2 | |
| 1.54 | -24.00 | 0.80 | -24.00 | -12.54 | 266.53 | -6.24 | 158.64 | 0.2928 | -823.1 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -8.43 | 266.62 | -6.16 | 152.27 | 0.2290 | 1024.0 | 849.4 | |
| 6.81 | 13.80 | 3.47 | 7.04 | -8.93 | 266.58 | -6.20 | 153.12 | 0.2368 | 1168.3 | 845.3 | |
| 0.00 | 3.81 | 0.00 | 1.94 | -8.05 | 266.53 | -6.24 | 151.15 | 0.2241 | 787.0 | 659.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.35 | 266.36 | -6.42 | 161.28 | 0.3375 | -658.0 | -563.5 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -16.87 | 266.14 | -6.63 | 162.15 | 0.3622 | -918.0 | -603.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.15 | 266.17 | -6.60 | 160.59 | 0.3355 | -952.0 | -813.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.35 | 266.16 | -6.61 | 160.77 | 0.3385 | -584.0 | -556.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.35 | 266.07 | -6.71 | 159.45 | 0.3237 | -946.0 | -789.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.33 | 266.01 | -6.77 | 158.06 | 0.3083 | -703.0 | -530.4 | |
| 0.00 | 7.27 | 0.00 | 3.71 | -8.74 | 266.02 | -6.75 | 150.71 | 0.2385 | 369.0 | 759.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.87 | 265.79 | -6.98 | 161.27 | 0.3640 | -873.0 | -700.1 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.33 | 265.98 | -6.79 | 151.74 | 0.2477 | 1142.0 | 785.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.58 | 265.81 | -6.97 | 158.98 | 0.3287 | -772.0 | -704.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.40 | 265.86 | -6.91 | 153.30 | 0.2645 | 905.0 | 771.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.88 | 265.90 | -6.87 | 145.86 | 0.2126 | 868.0 | 734.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.18 | 265.56 | -7.22 | 151.89 | 0.2637 | 966.0 | 732.9 | |
| 2.00 | 6.54 | 1.02 | 3.34 | -9.15 | 265.43 | -7.35 | 149.45 | 0.2496 | 1031.4 | 825.3 | |
| 2.00 | 10.81 | 1.03 | 5.55 | -10.03 | 265.19 | -7.59 | 150.40 | 0.2644 | 973.1 | 774.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.58 | 265.01 | -7.76 | 156.84 | 0.3337 | -678.0 | -645.6 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.47 | 264.76 | -8.01 | 147.92 | 0.2600 | 1034.0 | 725.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.58 | 264.61 | -8.16 | 152.99 | 0.3066 | -788.0 | -697.7 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -12.80 | 264.57 | -8.20 | 153.22 | 0.3102 | -887.0 | -769.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.68 | 264.32 | -8.45 | 152.34 | 0.3102 | -744.0 | -537.8 | |
| 0.00 | 2.72 | 0.00 | 1.44 | -14.85 | 264.21 | -8.57 | 155.07 | 0.3430 | -879.0 | -748.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -15.10 | 264.04 | -8.74 | 154.96 | 0.3480 | -788.0 | -627.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.24 | 263.99 | -8.78 | 150.71 | 0.3064 | -669.0 | -467.5 | |
| 0.00 | 3.72 | 0.00 | 1.97 | -15.17 | 263.72 | -9.06 | 154.25 | 0.3513 | -901.0 | -578.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.40 | 263.71 | -9.07 | 154.51 | 0.3547 | -769.0 | -544.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.14 | 262.92 | -9.85 | 139.23 | 0.2605 | -796.0 | -681.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.55 | 262.63 | -10.14 | 139.42 | 0.2689 | -814.0 | -636.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
