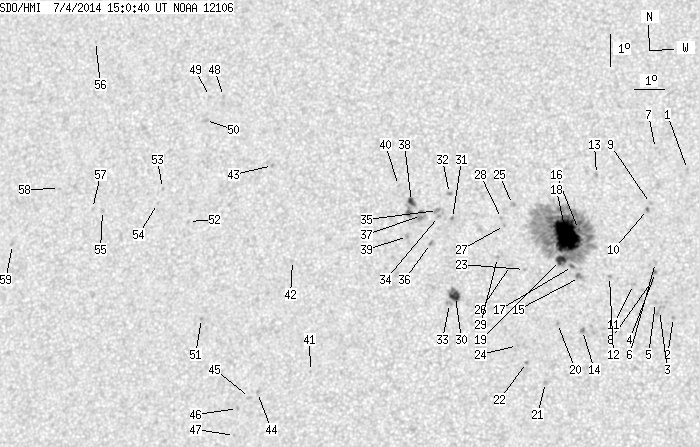

SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.84 | 400.48 | 40.77 | 208.22 | 15.34 | 260.52 | -12.25 | 43.26 | 0.2972 | -456.3 | -184.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.64 | 265.61 | -7.16 | 25.49 | 0.2773 | -822.0 | -601.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.02 | 265.32 | -7.45 | 36.54 | 0.2131 | -936.0 | -744.6 | |
| 0.00 | 5.09 | 0.00 | 2.58 | 13.24 | 264.88 | -7.90 | 37.52 | 0.2206 | -722.0 | -685.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 14.41 | 264.71 | -8.07 | 34.95 | 0.2383 | -1031.0 | -889.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.48 | 264.74 | -8.03 | 37.29 | 0.2253 | -842.0 | -540.1 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 14.72 | 264.70 | -8.08 | 34.23 | 0.2427 | -682.0 | -441.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 18.29 | 264.55 | -8.22 | 27.55 | 0.2950 | -672.0 | -488.4 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.13 | 264.59 | -8.18 | 36.05 | 0.2356 | -799.0 | -656.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.56 | 264.47 | -8.31 | 30.93 | 0.2706 | -705.0 | -578.4 | |
| 0.36 | 1.36 | 0.19 | 0.70 | 16.37 | 264.38 | -8.40 | 31.58 | 0.2687 | -964.5 | -834.3 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 14.04 | 264.02 | -8.75 | 38.13 | 0.2401 | -853.0 | -613.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.28 | 263.25 | -9.52 | 39.82 | 0.2515 | 870.0 | 678.9 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.46 | 262.68 | -10.10 | 34.14 | 0.2993 | 984.0 | 637.5 | |
| 0.00 | 2.72 | 0.00 | 1.39 | 12.60 | 262.46 | -10.32 | 46.88 | 0.2405 | -1196.0 | -857.3 | |
| 0.00 | 4.72 | 0.00 | 2.42 | 14.24 | 262.29 | -10.48 | 42.59 | 0.2617 | -843.0 | -718.9 | |
| 0.82 | 280.17 | 0.42 | 144.80 | 15.73 | 262.19 | -10.59 | 39.13 | 0.2814 | -934.4 | -340.1 | |
| 0.64 | 2.36 | 0.33 | 1.21 | 14.58 | 262.05 | -10.72 | 42.33 | 0.2686 | -1031.0 | -789.7 | |
| 61.57 | -16.00 | 31.80 | -16.00 | 15.54 | 261.81 | -10.96 | 40.55 | 0.2831 | -1331.1 | 999999 | |
| 6.18 | -16.00 | 3.18 | -16.00 | 14.76 | 261.66 | -11.11 | 42.86 | 0.2753 | -1055.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.81 | 261.66 | -11.12 | 48.33 | 0.2529 | -927.0 | -783.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 10.99 | 261.35 | -11.43 | 55.03 | 0.2384 | -991.0 | -682.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.60 | 260.72 | -12.05 | 54.36 | 0.2528 | -911.0 | -776.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.47 | 260.52 | -12.26 | 46.35 | 0.2854 | -839.0 | -569.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.12 | 260.41 | -12.36 | 53.36 | 0.2620 | -862.0 | -738.3 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 16.49 | 260.01 | -12.77 | 42.57 | 0.3146 | 817.0 | 753.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 14.59 | 260.06 | -12.72 | 47.06 | 0.2923 | -824.0 | -741.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 15.83 | 259.79 | -12.99 | 44.56 | 0.3095 | 801.0 | 676.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.05 | 259.68 | -13.10 | 44.29 | 0.3132 | 811.0 | 624.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.83 | 259.62 | -13.15 | 47.36 | 0.3003 | -718.0 | -569.9 | |
| 6.36 | 11.62 | 3.31 | 6.05 | 13.61 | 258.34 | -14.44 | 53.12 | 0.3042 | -1066.2 | -700.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 16.03 | 258.08 | -14.70 | 47.52 | 0.3321 | 913.0 | 824.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 16.81 | 257.92 | -14.86 | 46.05 | 0.3424 | 867.0 | 664.2 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 13.39 | 258.16 | -14.62 | 54.04 | 0.3046 | -839.0 | -744.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 16.09 | 257.61 | -15.16 | 48.24 | 0.3383 | 879.0 | 778.4 | |
| 0.00 | 3.81 | 0.00 | 2.01 | 16.28 | 257.57 | -15.21 | 47.90 | 0.3409 | 729.0 | 649.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 15.24 | 257.42 | -15.36 | 50.59 | 0.3322 | 989.0 | 804.5 | |
| 0.00 | 7.81 | 0.00 | 4.12 | 16.11 | 257.05 | -15.72 | 49.17 | 0.3455 | 1051.0 | 894.8 | |
| 2.91 | 12.26 | 1.54 | 6.49 | 16.55 | 256.69 | -16.09 | 48.82 | 0.3545 | 954.4 | 777.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.45 | 256.64 | -16.13 | 51.40 | 0.3441 | 957.0 | 800.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 17.04 | 256.21 | -16.56 | 48.53 | 0.3653 | 707.0 | 577.2 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 11.22 | 253.77 | -19.01 | 66.03 | 0.3511 | 779.0 | 621.0 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 14.64 | 252.90 | -19.88 | 58.57 | 0.3872 | 500.0 | 400.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 17.60 | 251.90 | -20.87 | 53.46 | 0.4244 | 791.0 | 640.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 10.55 | 252.06 | -20.71 | 69.37 | 0.3731 | 907.0 | 657.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 10.39 | 251.81 | -20.97 | 69.98 | 0.3762 | 851.0 | 710.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 10.04 | 251.43 | -21.34 | 71.14 | 0.3803 | 944.0 | 722.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 9.21 | 251.39 | -21.39 | 73.29 | 0.3774 | 715.0 | 588.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 19.75 | 249.91 | -22.86 | 51.74 | 0.4676 | 581.0 | 584.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 19.74 | 249.42 | -23.35 | 52.29 | 0.4735 | 591.0 | 433.8 | |
| 0.00 | 2.63 | 0.00 | 1.47 | 18.97 | 249.40 | -23.38 | 53.70 | 0.4675 | 626.0 | 546.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 12.79 | 250.00 | -22.77 | 65.72 | 0.4158 | 854.0 | 722.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 15.79 | 249.23 | -23.54 | 60.00 | 0.4456 | 661.0 | 527.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 16.80 | 248.20 | -24.58 | 58.97 | 0.4665 | 689.0 | 511.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 16.33 | 248.09 | -24.69 | 59.99 | 0.4648 | 551.0 | 483.7 | |
| 0.00 | 2.27 | 0.00 | 1.29 | 16.07 | 246.19 | -26.59 | 62.09 | 0.4887 | 733.0 | 546.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 21.40 | 245.01 | -27.77 | 53.77 | 0.5398 | 638.0 | 428.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.12 | 245.82 | -26.95 | 62.27 | 0.4939 | 653.0 | 556.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.72 | 244.55 | -28.23 | 62.12 | 0.5145 | 691.0 | 480.5 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 14.93 | 243.12 | -29.65 | 66.30 | 0.5241 | 778.0 | 600.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
