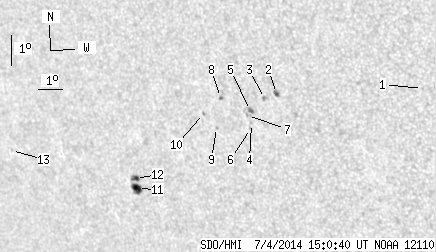

SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.79 | 31.24 | 9.07 | 21.60 | -16.04 | 232.58 | -40.19 | 117.14 | 0.6977 | -76.5 | 28.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.60 | -13.85 | 242.03 | -30.74 | 119.96 | 0.5750 | 547.0 | 421.8 | |
| 1.63 | 3.45 | 1.06 | 2.23 | -14.18 | 236.46 | -36.31 | 116.69 | 0.6449 | 774.9 | 525.2 | |
| 0.00 | 1.91 | 0.00 | 1.24 | -14.36 | 235.96 | -36.82 | 116.65 | 0.6518 | 805.0 | 650.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -15.18 | 235.27 | -37.50 | 117.41 | 0.6641 | 636.0 | 456.7 | |
| 1.27 | 2.91 | 0.84 | 1.91 | -14.76 | 235.32 | -37.45 | 116.85 | 0.6614 | 789.1 | 621.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -15.35 | 235.20 | -37.58 | 117.59 | 0.6658 | 444.0 | 347.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -14.93 | 235.17 | -37.61 | 117.00 | 0.6640 | 441.0 | 374.3 | |
| 0.36 | 1.36 | 0.24 | 0.91 | -14.39 | 234.20 | -38.58 | 115.71 | 0.6727 | 596.2 | 504.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -15.36 | 233.82 | -38.95 | 116.84 | 0.6817 | -721.0 | -653.9 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -14.93 | 233.39 | -39.39 | 116.02 | 0.6846 | -563.0 | -498.1 | |
| 6.99 | 9.99 | 5.09 | 7.27 | -17.48 | 229.94 | -42.83 | 117.62 | 0.7341 | -672.0 | -406.4 | |
| 2.54 | 4.99 | 1.84 | 3.62 | -17.15 | 229.95 | -42.82 | 117.21 | 0.7326 | -745.6 | -563.0 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -16.47 | 224.50 | -48.27 | 114.03 | 0.7858 | -402.0 | -369.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
