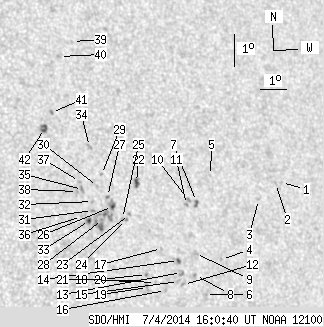

SDO HMI 2014-07-04 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.36 | 96.50 | 4.45 | 58.88 | 10.51 | 307.34 | 35.12 | 283.67 | 0.5844 | 102.4 | 185.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.48 | 11.29 | 313.34 | 41.11 | 283.41 | 0.6652 | -533.0 | -473.2 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 11.27 | 313.08 | 40.86 | 283.43 | 0.6620 | -458.0 | -475.4 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 10.80 | 312.31 | 40.09 | 282.89 | 0.6512 | -673.0 | -501.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 9.02 | 310.57 | 38.35 | 280.43 | 0.6253 | -709.0 | -547.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 11.61 | 310.51 | 38.29 | 284.55 | 0.6293 | -628.0 | -555.3 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 7.97 | 309.82 | 37.60 | 278.86 | 0.6137 | -585.0 | -410.6 | |
| 0.36 | 3.09 | 0.23 | 1.94 | 10.83 | 309.84 | 37.61 | 283.48 | 0.6187 | -664.8 | -714.5 | |
| 0.00 | 1.82 | 0.00 | 1.13 | 8.57 | 309.50 | 37.27 | 279.88 | 0.6101 | -776.0 | -669.3 | |
| 0.00 | 3.00 | 0.00 | 1.87 | 9.24 | 309.58 | 37.36 | 280.96 | 0.6122 | -869.0 | -612.8 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 10.90 | 309.53 | 37.31 | 283.67 | 0.6148 | -616.0 | -559.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 10.75 | 309.43 | 37.21 | 283.45 | 0.6131 | -946.0 | -745.4 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 8.31 | 309.00 | 36.78 | 279.53 | 0.6030 | -742.0 | -599.7 | |
| 0.00 | 3.63 | 0.00 | 2.25 | 8.68 | 308.97 | 36.75 | 280.15 | 0.6030 | -648.0 | -724.1 | |
| 0.73 | 2.54 | 0.45 | 1.57 | 9.05 | 308.89 | 36.67 | 280.78 | 0.6026 | -848.0 | -709.5 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 8.41 | 308.82 | 36.60 | 279.73 | 0.6006 | -210.0 | -214.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 8.15 | 308.29 | 36.07 | 279.38 | 0.5930 | 219.0 | 118.9 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 9.44 | 308.29 | 36.07 | 281.55 | 0.5950 | -686.0 | -550.2 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 8.40 | 307.94 | 35.72 | 279.88 | 0.5884 | 268.0 | 217.7 | |
| 0.00 | 3.45 | 0.00 | 2.10 | 8.26 | 307.62 | 35.40 | 279.69 | 0.5838 | 762.0 | 540.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 8.66 | 307.63 | 35.41 | 280.37 | 0.5844 | 607.0 | 471.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 8.48 | 307.38 | 35.16 | 280.12 | 0.5807 | 633.0 | 469.9 | |
| 1.82 | 3.90 | 1.11 | 2.39 | 11.49 | 307.61 | 35.39 | 285.16 | 0.5902 | -904.7 | -720.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 10.52 | 307.21 | 34.99 | 283.64 | 0.5823 | 529.0 | 462.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.37 | 307.07 | 34.85 | 283.42 | 0.5801 | 629.0 | 514.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 10.40 | 306.93 | 34.71 | 283.52 | 0.5781 | 674.0 | 590.2 | |
| 1.00 | 5.81 | 0.60 | 3.51 | 10.78 | 306.60 | 34.38 | 284.27 | 0.5745 | 711.0 | 536.4 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 11.10 | 306.45 | 34.23 | 284.85 | 0.5733 | 688.0 | 577.1 | |
| 0.00 | 18.89 | 0.00 | 11.35 | 10.40 | 306.17 | 33.95 | 283.72 | 0.5676 | 749.0 | 686.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 11.78 | 306.32 | 34.10 | 286.07 | 0.5733 | 568.0 | 382.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 11.42 | 306.12 | 33.90 | 285.51 | 0.5695 | 634.0 | 523.9 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 10.69 | 305.84 | 33.62 | 284.33 | 0.5636 | 863.0 | 726.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 10.96 | 305.87 | 33.65 | 284.80 | 0.5648 | 810.0 | 669.6 | |
| 1.18 | 2.54 | 0.71 | 1.52 | 10.38 | 305.69 | 33.47 | 283.84 | 0.5608 | 1009.5 | 872.3 | |
| 0.00 | 2.63 | 0.00 | 1.59 | 12.66 | 306.00 | 33.78 | 287.69 | 0.5715 | 559.0 | 482.3 | |
| 0.00 | 2.72 | 0.00 | 1.63 | 11.34 | 305.55 | 33.33 | 285.57 | 0.5614 | 720.0 | 580.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 10.51 | 305.41 | 33.19 | 284.16 | 0.5571 | 743.0 | 566.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 11.59 | 305.47 | 33.25 | 286.03 | 0.5610 | 626.0 | 482.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 11.29 | 305.36 | 33.14 | 285.54 | 0.5585 | 815.0 | 625.6 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 15.93 | 305.92 | 33.70 | 293.22 | 0.5827 | 566.0 | 486.6 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 15.48 | 305.34 | 33.12 | 292.76 | 0.5732 | 745.0 | 624.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 13.75 | 304.75 | 32.53 | 290.10 | 0.5583 | 735.0 | 648.8 | |
| 2.27 | 5.09 | 1.35 | 3.02 | 13.26 | 304.41 | 32.19 | 289.40 | 0.5518 | 881.6 | 769.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
