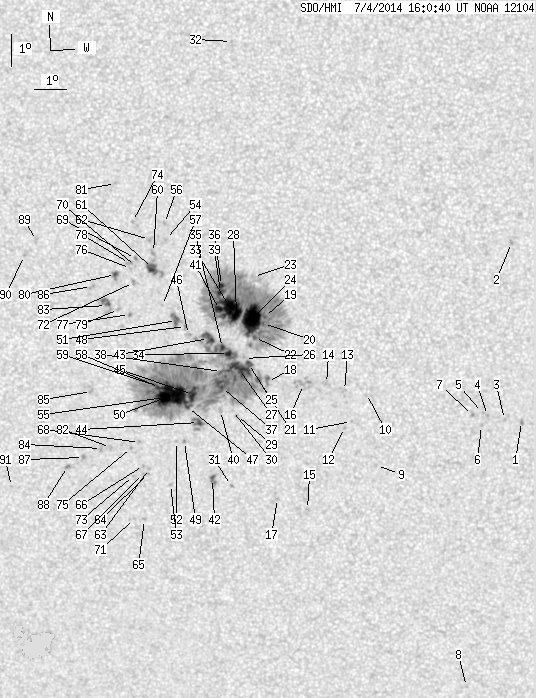

SDO HMI 2014-07-04 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216.38 | 1206.11 | 111.08 | 619.94 | -11.60 | 268.43 | -3.80 | 165.86 | 0.2665 | 363.3 | 129.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.04 | -13.75 | 278.08 | 5.86 | 198.76 | 0.3096 | 930.0 | 719.5 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -8.12 | 277.67 | 5.44 | 205.53 | 0.2189 | 851.0 | 668.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.68 | 277.54 | 5.32 | 197.21 | 0.3058 | 698.0 | 505.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.55 | 277.00 | 4.78 | 195.68 | 0.3012 | 1033.0 | 818.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.46 | 276.84 | 4.62 | 195.28 | 0.2989 | 738.0 | 595.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.87 | 276.82 | 4.60 | 194.83 | 0.3055 | 806.0 | 643.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.55 | 276.53 | 4.31 | 194.21 | 0.2991 | 941.0 | 777.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -22.42 | 276.55 | 4.33 | 189.15 | 0.4403 | 658.0 | 609.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.14 | 273.53 | 1.31 | 183.99 | 0.3173 | 900.0 | 662.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -12.84 | 273.20 | 0.98 | 183.46 | 0.2786 | 204.0 | 282.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.73 | 272.74 | 0.52 | 181.71 | 0.2932 | 739.0 | 580.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.92 | 272.52 | 0.30 | 180.97 | 0.2963 | 747.0 | 653.0 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -12.74 | 272.52 | 0.30 | 181.05 | 0.2765 | 797.0 | 687.7 | |
| 0.00 | 4.45 | 0.00 | 2.29 | -12.52 | 271.95 | -0.27 | 179.04 | 0.2728 | 896.0 | 571.4 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -16.55 | 271.34 | -0.88 | 177.51 | 0.3403 | 830.0 | 622.3 | |
| 0.00 | 14.17 | 0.00 | 7.29 | -12.55 | 271.24 | -0.98 | 176.47 | 0.2738 | 956.0 | 763.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -16.20 | 270.39 | -1.83 | 174.73 | 0.3355 | 748.0 | 607.6 | |
| 0.00 | 5.18 | 0.00 | 2.67 | -12.46 | 270.11 | -2.11 | 172.44 | 0.2740 | 821.0 | 731.6 | |
| 1.00 | 432.97 | 0.51 | 220.77 | -10.41 | 270.04 | -2.18 | 170.98 | 0.2399 | 1084.1 | 474.6 | |
| 2.00 | -19.00 | 1.02 | -19.00 | -10.63 | 270.01 | -2.22 | 170.99 | 0.2437 | 981.7 | 999999 | |
| 2.36 | 595.70 | 1.22 | 307.58 | -12.39 | 269.83 | -2.39 | 171.41 | 0.2736 | 883.1 | -161.8 | |
| 1.27 | -19.00 | 0.65 | -19.00 | -11.07 | 269.72 | -2.50 | 170.17 | 0.2518 | 826.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.16 | 269.71 | -2.51 | 168.60 | 0.2199 | 313.0 | 376.5 | |
| 39.96 | -19.00 | 20.40 | -19.00 | -10.47 | 269.67 | -2.56 | 169.52 | 0.2420 | 1396.4 | 999999 | |
| 3.09 | -21.00 | 1.59 | -21.00 | -11.89 | 269.53 | -2.69 | 170.00 | 0.2660 | 1043.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -11.73 | 269.40 | -2.82 | 169.44 | 0.2638 | 916.0 | 733.2 | |
| 19.34 | -21.00 | 9.95 | -21.00 | -12.08 | 269.24 | -2.98 | 169.11 | 0.2701 | 1036.7 | 999999 | |
| 11.53 | -19.00 | 5.89 | -19.00 | -10.35 | 269.17 | -3.05 | 167.43 | 0.2416 | 1366.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.54 | 269.13 | -3.09 | 169.70 | 0.2945 | -921.0 | -706.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -13.38 | 269.01 | -3.21 | 169.20 | 0.2923 | -659.0 | -524.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.78 | 268.94 | -3.28 | 170.39 | 0.3318 | 790.0 | 694.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -1.91 | 269.08 | -3.14 | 148.54 | 0.1055 | 927.0 | 720.9 | |
| 27.24 | -19.00 | 13.89 | -19.00 | -10.10 | 268.96 | -3.26 | 166.33 | 0.2383 | 1381.0 | 999999 | |
| 3.72 | -21.00 | 1.91 | -21.00 | -11.57 | 268.91 | -3.31 | 167.50 | 0.2629 | 1223.2 | 999999 | |
| 2.54 | -21.00 | 1.30 | -21.00 | -11.39 | 268.72 | -3.50 | 166.66 | 0.2605 | 1222.6 | 999999 | |
| 2.54 | -19.00 | 1.29 | -19.00 | -9.44 | 268.72 | -3.50 | 164.63 | 0.2285 | 1341.9 | 999999 | |
| 2.18 | -21.00 | 1.12 | -21.00 | -12.65 | 268.67 | -3.55 | 167.56 | 0.2814 | 339.2 | 999999 | |
| 1.45 | -21.00 | 0.75 | -21.00 | -12.14 | 268.68 | -3.54 | 167.17 | 0.2731 | 682.6 | 999999 | |
| 4.09 | -19.00 | 2.08 | -19.00 | -9.66 | 268.68 | -3.54 | 164.74 | 0.2323 | 1356.4 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -13.38 | 268.63 | -3.59 | 167.97 | 0.2935 | -894.0 | -805.9 | |
| 6.63 | -19.00 | 3.38 | -19.00 | -10.19 | 268.65 | -3.58 | 165.19 | 0.2412 | 1146.1 | 999999 | |
| 1.54 | 6.27 | 0.81 | 3.29 | -15.56 | 268.34 | -3.88 | 168.55 | 0.3300 | 933.8 | 668.1 | |
| 7.17 | -21.00 | 3.68 | -21.00 | -11.10 | 268.29 | -3.93 | 164.80 | 0.2576 | 1100.0 | 999999 | |
| 3.09 | 11.62 | 1.60 | 6.04 | -13.76 | 267.93 | -4.29 | 166.04 | 0.3024 | -1118.1 | -920.0 | |
| 8.90 | -21.00 | 4.60 | -21.00 | -12.87 | 267.76 | -4.46 | 164.71 | 0.2887 | -1382.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -10.98 | 267.67 | -4.55 | 162.39 | 0.2586 | 417.0 | 325.1 | |
| 1.27 | -21.00 | 0.66 | -21.00 | -13.29 | 267.60 | -4.62 | 164.57 | 0.2961 | -937.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.73 | 267.58 | -4.64 | 161.76 | 0.2550 | 891.0 | 690.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -14.37 | 267.48 | -4.74 | 165.16 | 0.3141 | -968.0 | -804.4 | |
| 29.51 | -21.00 | 15.28 | -21.00 | -12.84 | 267.26 | -4.96 | 163.06 | 0.2906 | -1442.5 | 999999 | |
| 3.09 | 10.62 | 1.58 | 5.44 | -10.54 | 267.30 | -4.92 | 160.50 | 0.2535 | 921.7 | 687.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -14.37 | 267.23 | -5.00 | 164.41 | 0.3152 | -920.0 | -704.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.75 | 267.00 | -5.22 | 164.93 | 0.3382 | -804.0 | -549.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -8.01 | 267.00 | -5.22 | 155.20 | 0.2156 | 940.0 | 874.6 | |
| 19.43 | -21.00 | 10.07 | -21.00 | -12.97 | 266.88 | -5.34 | 161.99 | 0.2946 | -1221.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.52 | 266.98 | -5.24 | 154.08 | 0.2081 | 942.0 | 737.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.07 | 266.88 | -5.34 | 158.26 | 0.2487 | 842.0 | 600.6 | |
| 2.63 | -21.00 | 1.36 | -21.00 | -12.66 | 266.73 | -5.49 | 161.16 | 0.2903 | -1029.2 | 999999 | |
| 0.27 | -21.00 | 0.14 | -21.00 | -12.59 | 266.58 | -5.65 | 160.59 | 0.2902 | -956.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.52 | -8.42 | 266.63 | -5.59 | 154.45 | 0.2246 | 984.0 | 828.6 | |
| 6.81 | 16.89 | 3.47 | 8.60 | -8.92 | 266.59 | -5.63 | 155.24 | 0.2326 | 1172.3 | 819.5 | |
| 0.00 | 3.63 | 0.00 | 1.84 | -8.02 | 266.51 | -5.71 | 153.17 | 0.2193 | 828.0 | 689.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.24 | 266.35 | -5.87 | 162.68 | 0.3331 | -801.0 | -636.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.40 | 266.31 | -5.91 | 162.73 | 0.3358 | -693.0 | -521.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.89 | 266.14 | -6.08 | 163.56 | 0.3600 | -900.0 | -670.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.15 | 266.16 | -6.06 | 162.07 | 0.3326 | -941.0 | -781.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.40 | 266.15 | -6.07 | 162.30 | 0.3366 | -604.0 | -557.7 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -14.41 | 266.06 | -6.17 | 161.04 | 0.3216 | -831.0 | -695.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.61 | 266.07 | -6.16 | 152.65 | 0.2318 | 918.0 | 796.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.86 | 266.06 | -6.16 | 153.12 | 0.2356 | 940.0 | 756.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -16.86 | 265.82 | -6.40 | 162.73 | 0.3610 | -832.0 | -666.8 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -9.36 | 265.99 | -6.23 | 153.80 | 0.2437 | 1071.0 | 835.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.47 | 265.83 | -6.39 | 161.49 | 0.3393 | -368.0 | -407.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.46 | 265.99 | -6.23 | 149.85 | 0.2152 | 797.0 | 675.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.57 | 265.80 | -6.42 | 160.48 | 0.3255 | -907.0 | -743.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.92 | 265.90 | -6.32 | 152.66 | 0.2377 | 761.0 | 638.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.36 | 265.84 | -6.38 | 155.04 | 0.2600 | 917.0 | 758.8 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -8.77 | 265.88 | -6.34 | 152.25 | 0.2356 | 779.0 | 696.5 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -10.20 | 265.51 | -6.72 | 153.62 | 0.2602 | 829.0 | 646.7 | |
| 1.73 | 5.27 | 0.88 | 2.69 | -9.11 | 265.44 | -6.79 | 151.34 | 0.2443 | 1059.8 | 868.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.29 | 265.48 | -6.74 | 144.76 | 0.2030 | 880.0 | 616.7 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -14.57 | 265.13 | -7.09 | 158.64 | 0.3294 | -877.0 | -600.1 | |
| 0.00 | 10.17 | 0.00 | 5.22 | -10.08 | 265.13 | -7.09 | 152.15 | 0.2612 | 958.0 | 824.3 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -14.61 | 264.84 | -7.38 | 157.90 | 0.3317 | -857.0 | -712.5 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -12.79 | 264.59 | -7.63 | 154.83 | 0.3059 | -951.0 | -793.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -9.49 | 264.68 | -7.54 | 149.51 | 0.2562 | 725.0 | 728.9 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -14.90 | 264.26 | -7.96 | 156.70 | 0.3398 | -906.0 | -798.9 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -15.19 | 263.74 | -8.48 | 155.72 | 0.3477 | -941.0 | -795.2 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -8.07 | 263.00 | -9.22 | 140.91 | 0.2527 | -648.0 | -654.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.54 | 262.61 | -9.61 | 140.93 | 0.2630 | -872.0 | -587.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -15.85 | 261.91 | -10.31 | 152.18 | 0.3704 | -724.0 | -567.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
