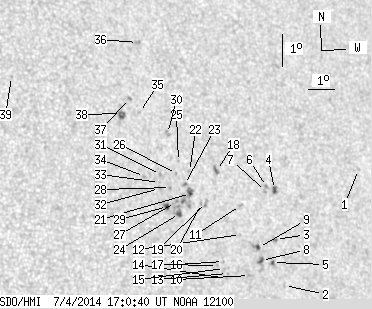

SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 95.07 | 5.55 | 58.20 | 10.74 | 307.09 | 35.43 | 283.96 | 0.5892 | 205.1 | 211.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.97 | 11.27 | 313.35 | 41.69 | 283.26 | 0.6724 | -510.0 | -418.2 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 7.83 | 309.87 | 38.20 | 278.54 | 0.6218 | -693.0 | -572.2 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 9.25 | 309.68 | 38.02 | 280.85 | 0.6212 | -864.0 | -714.0 | |
| 1.63 | 3.54 | 1.04 | 2.25 | 10.78 | 309.86 | 38.19 | 283.26 | 0.6263 | -770.9 | -604.3 | |
| 0.82 | 2.36 | 0.51 | 1.48 | 8.55 | 309.48 | 37.81 | 279.76 | 0.6174 | -701.9 | -573.9 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 10.88 | 309.56 | 37.89 | 283.49 | 0.6225 | -681.0 | -581.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 10.73 | 309.50 | 37.83 | 283.27 | 0.6214 | -991.0 | -826.2 | |
| 1.36 | 5.72 | 0.85 | 3.57 | 8.63 | 309.06 | 37.39 | 279.95 | 0.6118 | -930.0 | -646.2 | |
| 1.18 | 4.45 | 0.74 | 2.78 | 9.03 | 308.99 | 37.32 | 280.62 | 0.6115 | -802.9 | -650.1 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 8.18 | 308.54 | 36.88 | 279.31 | 0.6041 | 14.0 | -101.6 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 10.34 | 308.46 | 36.80 | 282.87 | 0.6067 | -804.0 | -653.8 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 9.45 | 308.35 | 36.68 | 281.44 | 0.6034 | -757.0 | -612.4 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 8.27 | 307.71 | 36.04 | 279.60 | 0.5927 | 382.0 | 314.4 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 8.12 | 307.65 | 35.99 | 279.35 | 0.5918 | 680.0 | 563.6 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 8.43 | 307.61 | 35.95 | 279.88 | 0.5916 | 612.0 | 540.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 8.64 | 307.60 | 35.93 | 280.24 | 0.5917 | 549.0 | 451.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 8.53 | 307.36 | 35.69 | 280.09 | 0.5882 | 824.0 | 654.0 | |
| 0.00 | 3.63 | 0.00 | 2.24 | 11.44 | 307.69 | 36.03 | 284.89 | 0.5987 | -944.0 | -758.8 | |
| 0.00 | 3.00 | 0.00 | 1.83 | 10.47 | 307.17 | 35.51 | 283.42 | 0.5893 | 567.0 | 462.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 10.45 | 306.98 | 35.31 | 283.43 | 0.5866 | 637.0 | 460.1 | |
| 1.00 | 14.07 | 0.61 | 8.55 | 10.77 | 306.60 | 34.94 | 284.07 | 0.5822 | 749.3 | 594.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 11.44 | 306.66 | 35.00 | 285.20 | 0.5847 | 425.0 | 371.0 | |
| 0.00 | 1.82 | 0.00 | 1.10 | 11.05 | 306.42 | 34.75 | 284.61 | 0.5803 | 771.0 | 565.4 | |
| 1.36 | 8.72 | 0.82 | 5.26 | 10.17 | 306.11 | 34.45 | 283.18 | 0.5740 | 717.9 | 668.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 11.77 | 306.29 | 34.62 | 285.86 | 0.5804 | 573.0 | 415.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 11.40 | 306.16 | 34.50 | 285.28 | 0.5777 | 628.0 | 470.3 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 10.51 | 306.00 | 34.34 | 283.80 | 0.5733 | 753.0 | 738.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.98 | 305.88 | 34.21 | 284.64 | 0.5726 | 843.0 | 706.4 | |
| 1.63 | 2.81 | 0.98 | 1.69 | 10.40 | 305.69 | 34.02 | 283.70 | 0.5686 | 1006.8 | 801.2 | |
| 0.00 | 3.09 | 0.00 | 1.87 | 12.64 | 306.00 | 34.34 | 287.45 | 0.5791 | 605.0 | 443.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 11.39 | 305.56 | 33.89 | 285.46 | 0.5693 | 707.0 | 614.5 | |
| 0.00 | 2.18 | 0.00 | 1.31 | 10.96 | 305.46 | 33.80 | 284.74 | 0.5668 | 633.0 | 516.6 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 11.14 | 305.49 | 33.82 | 285.06 | 0.5677 | 719.0 | 626.1 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 11.35 | 304.95 | 33.29 | 285.59 | 0.5608 | 916.0 | 694.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 13.32 | 305.05 | 33.39 | 288.98 | 0.5684 | 719.0 | 571.8 | |
| 0.00 | 2.63 | 0.00 | 1.60 | 15.49 | 305.35 | 33.69 | 292.50 | 0.5807 | 777.0 | 617.9 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 13.77 | 304.75 | 33.08 | 289.87 | 0.5659 | 827.0 | 609.5 | |
| 0.00 | 6.27 | 0.00 | 3.74 | 13.31 | 304.38 | 32.71 | 289.25 | 0.5592 | 862.0 | 739.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 14.58 | 300.54 | 28.87 | 293.52 | 0.5117 | -567.0 | -471.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
