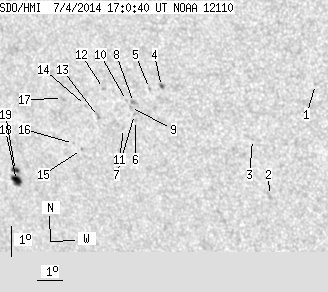

SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.44 | 38.32 | 7.39 | 25.81 | -16.07 | 233.41 | -38.26 | 118.31 | 0.6765 | -116.1 | 18.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.87 | -13.99 | 242.29 | -29.38 | 121.28 | 0.5591 | 594.0 | 412.2 | |
| 0.00 | 2.91 | 0.00 | 1.82 | -17.64 | 239.97 | -31.69 | 124.83 | 0.6121 | 112.0 | 206.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -15.83 | 239.68 | -31.99 | 122.00 | 0.6032 | 556.0 | 474.3 | |
| 0.91 | 1.82 | 0.58 | 1.16 | -14.23 | 236.51 | -35.15 | 117.48 | 0.6313 | 838.0 | 703.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -14.31 | 236.03 | -35.63 | 117.30 | 0.6375 | 709.0 | 611.8 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -15.36 | 235.28 | -36.38 | 118.33 | 0.6521 | 352.0 | 291.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -15.17 | 235.28 | -36.38 | 118.06 | 0.6510 | 482.0 | 408.5 | |
| 0.00 | 2.91 | 0.00 | 1.89 | -14.78 | 235.32 | -36.35 | 117.54 | 0.6485 | 864.0 | 718.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -14.95 | 235.17 | -36.50 | 117.68 | 0.6512 | 471.0 | 431.0 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -14.73 | 235.06 | -36.61 | 117.30 | 0.6513 | 511.0 | 411.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -15.64 | 234.75 | -36.92 | 118.39 | 0.6598 | -201.0 | -135.7 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -14.37 | 234.22 | -37.45 | 116.32 | 0.6594 | 655.0 | 515.9 | |
| 0.00 | 2.45 | 0.00 | 1.63 | -15.28 | 233.83 | -37.84 | 117.36 | 0.6686 | -863.0 | -744.7 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -14.95 | 233.38 | -38.29 | 116.64 | 0.6721 | -537.0 | -462.1 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -16.38 | 232.89 | -38.77 | 118.32 | 0.6848 | -871.0 | -644.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -16.20 | 232.61 | -39.06 | 117.92 | 0.6871 | -743.0 | -647.8 | |
| 0.00 | 2.09 | 0.00 | 1.41 | -14.75 | 232.49 | -39.18 | 115.90 | 0.6814 | -175.0 | -135.7 | |
| 6.72 | 9.44 | 4.80 | 6.75 | -17.49 | 229.88 | -41.79 | 118.17 | 0.7232 | -711.3 | -435.5 | |
| 2.81 | 4.54 | 2.01 | 3.24 | -17.17 | 229.93 | -41.74 | 117.77 | 0.7212 | -848.1 | -662.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
