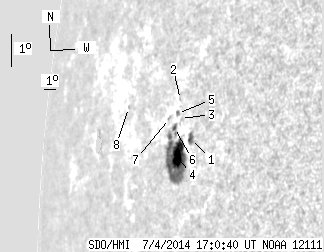

SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.98 | 89.00 | 19.62 | 117.82 | 5.96 | 203.57 | -68.10 | 84.88 | 0.9281 | -444.6 | -74.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 5.72 | 3.22 | 7.24 | 6.42 | 204.50 | -67.16 | 84.40 | 0.9219 | -648.0 | -519.8 | |
| 0.00 | 0.82 | 0.00 | 1.09 | 7.56 | 203.34 | -68.32 | 83.15 | 0.9294 | -243.0 | -224.2 | |
| 0.00 | 1.00 | 0.00 | 1.32 | 6.98 | 203.53 | -68.14 | 83.78 | 0.9283 | -442.0 | -401.2 | |
| 11.53 | 73.46 | 15.18 | 97.23 | 5.79 | 203.61 | -68.06 | 85.06 | 0.9279 | -524.9 | -42.2 | |
| 0.00 | 1.82 | 0.00 | 2.42 | 7.12 | 203.23 | -68.44 | 83.62 | 0.9302 | -309.0 | -283.9 | |
| 0.91 | 4.18 | 1.22 | 5.59 | 6.68 | 203.11 | -68.56 | 84.09 | 0.9310 | -115.5 | -108.4 | |
| 0.00 | 1.36 | 0.00 | 1.87 | 6.93 | 202.60 | -69.06 | 83.81 | 0.9341 | -32.0 | -35.7 | |
| 0.00 | 0.64 | 0.00 | 1.06 | 7.06 | 198.62 | -73.05 | 83.60 | 0.9565 | 275.0 | 232.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
