SDO HMI 2014-07-04 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.92 | 551.42 | 77.74 | 331.79 | -7.66 | 238.25 | -32.87 | 108.65 | 0.5689 | -16.1 | -42.8 | |
|
previous
or next observation for the same group /

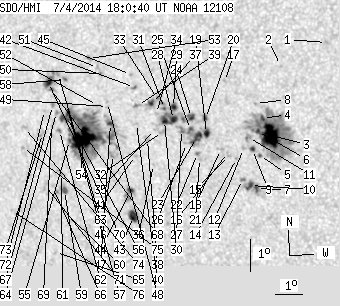

back to the solar disc SDO HMI 2014-07-04 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | -4.61 | 244.44 | -26.67 | 106.28 | 0.4680 | 736.0 | 599.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -5.36 | 242.81 | -28.30 | 106.84 | 0.4951 | 700.0 | 605.3 | |
| 27.33 | 147.36 | 15.74 | 84.82 | -7.54 | 242.33 | -28.78 | 110.67 | 0.5122 | 1211.3 | 467.0 | |
| 1.73 | -3.00 | 0.99 | -3.00 | -7.02 | 242.08 | -29.03 | 109.56 | 0.5131 | 695.4 | 999999 | |
| 0.54 | 1.82 | 0.32 | 1.05 | -8.17 | 241.89 | -29.22 | 111.54 | 0.5216 | 585.8 | 513.3 | |
| 1.27 | -3.00 | 0.74 | -3.00 | -7.43 | 241.88 | -29.23 | 110.18 | 0.5180 | 724.7 | 999999 | |
| 1.73 | 15.07 | 1.01 | 8.80 | -9.20 | 241.69 | -29.42 | 113.25 | 0.5298 | 958.8 | 561.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -6.56 | 241.87 | -29.24 | 108.58 | 0.5140 | 692.0 | 535.6 | |
| 1.54 | 2.54 | 0.90 | 1.48 | -7.99 | 241.66 | -29.45 | 111.07 | 0.5239 | 723.9 | 628.7 | |
| 2.91 | -7.00 | 1.70 | -7.00 | -9.11 | 241.49 | -29.62 | 112.96 | 0.5321 | 811.2 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.79 | -7.62 | 241.54 | -29.57 | 110.33 | 0.5236 | 700.0 | 582.9 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -7.97 | 241.34 | -29.77 | 110.82 | 0.5282 | 541.0 | 476.2 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -8.93 | 241.22 | -29.89 | 112.46 | 0.5348 | 751.0 | 590.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.29 | 241.06 | -30.05 | 111.22 | 0.5336 | 681.0 | 595.2 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -8.20 | 240.82 | -30.29 | 110.91 | 0.5365 | 533.0 | 399.8 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -8.11 | 240.76 | -30.35 | 110.71 | 0.5369 | 650.0 | 560.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -5.91 | 240.81 | -30.30 | 106.79 | 0.5262 | 820.0 | 573.4 | |
| 0.00 | 2.63 | 0.00 | 1.55 | -8.02 | 240.51 | -30.60 | 110.41 | 0.5398 | 582.0 | 390.3 | |
| 3.63 | 27.97 | 2.14 | 16.55 | -7.54 | 240.05 | -31.06 | 109.29 | 0.5440 | 877.2 | 423.6 | |
| 1.73 | 3.18 | 1.02 | 1.87 | -7.07 | 240.05 | -31.06 | 108.48 | 0.5419 | 1038.8 | 833.8 | |
| 0.00 | 2.27 | 0.00 | 1.35 | -8.32 | 239.73 | -31.38 | 110.47 | 0.5520 | -633.0 | -549.0 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -8.17 | 239.67 | -31.44 | 110.17 | 0.5521 | -1032.0 | -794.5 | |
| 6.72 | -19.00 | 3.98 | -19.00 | -7.67 | 239.68 | -31.43 | 109.32 | 0.5497 | 704.4 | 999999 | |
| 1.91 | 39.86 | 1.13 | 23.75 | -7.06 | 239.55 | -31.56 | 108.17 | 0.5488 | 967.0 | 297.3 | |
| 1.27 | -19.00 | 0.75 | -19.00 | -7.43 | 239.49 | -31.63 | 108.79 | 0.5513 | 843.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -7.87 | 239.30 | -31.81 | 109.45 | 0.5558 | 303.0 | 225.3 | |
| 0.00 | 4.27 | 0.00 | 2.54 | -7.44 | 239.16 | -31.95 | 108.63 | 0.5559 | 594.0 | 464.8 | |
| 4.27 | -24.00 | 2.54 | -24.00 | -7.14 | 238.89 | -32.22 | 107.97 | 0.5583 | 700.6 | 999999 | |
| 2.72 | -24.00 | 1.62 | -24.00 | -6.77 | 238.92 | -32.19 | 107.34 | 0.5563 | 641.9 | 999999 | |
| 3.90 | -24.00 | 2.34 | -24.00 | -7.18 | 238.56 | -32.55 | 107.87 | 0.5630 | 484.8 | 999999 | |
| 0.73 | -24.00 | 0.43 | -24.00 | -6.81 | 238.59 | -32.52 | 107.25 | 0.5611 | 568.0 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.18 | -7.52 | 238.46 | -32.65 | 108.40 | 0.5659 | 473.0 | 242.2 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -6.50 | 238.36 | -32.75 | 106.61 | 0.5631 | 758.0 | 681.4 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -6.97 | 238.29 | -32.83 | 107.38 | 0.5659 | 247.0 | 94.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -7.47 | 238.17 | -32.94 | 108.16 | 0.5696 | 387.0 | 307.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -8.56 | 238.03 | -33.08 | 109.91 | 0.5762 | -475.0 | -472.3 | |
| 2.54 | 4.27 | 1.53 | 2.56 | -6.67 | 238.13 | -32.98 | 106.78 | 0.5669 | 730.2 | 599.6 | |
| 0.00 | 3.63 | 0.00 | 2.20 | -7.79 | 237.88 | -33.23 | 108.55 | 0.5748 | -369.0 | -261.0 | |
| 0.00 | 2.81 | 0.00 | 1.70 | -6.74 | 237.61 | -33.50 | 106.67 | 0.5744 | 580.0 | 467.8 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -7.30 | 237.52 | -33.59 | 107.56 | 0.5777 | -297.0 | -271.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -8.30 | 237.39 | -33.72 | 109.15 | 0.5836 | -393.0 | -357.2 | |
| 0.36 | 2.00 | 0.22 | 1.21 | -6.19 | 237.54 | -33.57 | 105.70 | 0.5732 | 634.8 | 454.7 | |
| 7.26 | 9.81 | 4.47 | 6.04 | -10.21 | 237.10 | -34.01 | 112.07 | 0.5961 | -931.5 | -563.9 | |
| 2.36 | 9.17 | 1.45 | 5.64 | -9.40 | 237.09 | -34.02 | 110.77 | 0.5925 | 806.8 | 365.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -5.79 | 237.42 | -33.69 | 104.97 | 0.5734 | 685.0 | 586.8 | |
| 0.00 | 5.99 | 0.00 | 3.69 | -8.30 | 236.57 | -34.54 | 108.73 | 0.5946 | -595.0 | -629.3 | |
| 2.00 | 173.51 | 1.22 | 107.66 | -7.33 | 236.55 | -34.56 | 107.16 | 0.5910 | -1080.9 | -601.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -6.69 | 236.50 | -34.61 | 106.07 | 0.5893 | 443.0 | 253.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -6.81 | 236.49 | -34.62 | 106.27 | 0.5899 | 413.0 | 226.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -5.80 | 236.30 | -34.81 | 104.52 | 0.5888 | 676.0 | 537.7 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -5.62 | 236.21 | -34.91 | 104.18 | 0.5895 | 694.0 | 511.6 | |
| 0.00 | 3.09 | 0.00 | 1.90 | -6.79 | 236.11 | -35.00 | 106.07 | 0.5949 | -456.0 | -352.6 | |
| 0.00 | 2.36 | 0.00 | 1.45 | -5.35 | 235.89 | -35.22 | 103.61 | 0.5931 | 605.0 | 444.8 | |
| 33.59 | -47.00 | 20.91 | -47.00 | -7.84 | 235.45 | -35.66 | 107.46 | 0.6076 | -1169.7 | 999999 | |
| 1.36 | -47.00 | 0.85 | -47.00 | -7.91 | 234.95 | -36.16 | 107.36 | 0.6146 | -562.9 | 999999 | |
| 8.08 | -47.00 | 5.05 | -47.00 | -7.17 | 234.91 | -36.20 | 106.17 | 0.6124 | -910.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -6.80 | 234.94 | -36.17 | 105.59 | 0.6106 | -691.0 | -624.4 | |
| 0.54 | 1.91 | 0.34 | 1.19 | -6.03 | 234.97 | -36.14 | 104.37 | 0.6077 | -950.5 | -793.7 | |
| 2.27 | 5.36 | 1.44 | 3.40 | -9.48 | 234.58 | -36.54 | 109.62 | 0.6256 | -874.8 | -718.2 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -10.14 | 234.45 | -36.66 | 110.56 | 0.6300 | -577.0 | -406.2 | |
| 0.00 | 4.00 | 0.00 | 2.53 | -8.95 | 234.52 | -36.59 | 108.79 | 0.6241 | -799.0 | -597.4 | |
| 0.54 | 2.09 | 0.34 | 1.31 | -7.62 | 234.60 | -36.52 | 106.74 | 0.6181 | -635.0 | -465.0 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -5.88 | 234.71 | -36.40 | 104.04 | 0.6107 | -894.0 | -791.8 | |
| 0.00 | 2.18 | 0.00 | 1.37 | -7.06 | 234.53 | -36.58 | 105.84 | 0.6169 | -689.0 | -597.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -11.45 | 233.95 | -37.16 | 112.26 | 0.6420 | -617.0 | -498.1 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -9.43 | 234.16 | -36.95 | 109.35 | 0.6308 | -367.0 | -514.0 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -6.85 | 234.40 | -36.71 | 105.45 | 0.6180 | -746.0 | -628.5 | |
| 0.73 | 11.53 | 0.46 | 7.24 | -6.35 | 234.41 | -36.70 | 104.67 | 0.6163 | -886.4 | -752.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -7.50 | 234.30 | -36.81 | 106.44 | 0.6216 | -670.0 | -524.8 | |
| 3.36 | -68.00 | 2.11 | -68.00 | -6.14 | 234.31 | -36.80 | 104.30 | 0.6169 | -935.4 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.21 | -9.35 | 233.86 | -37.25 | 109.08 | 0.6343 | -641.0 | -395.1 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -7.01 | 234.08 | -37.03 | 105.59 | 0.6228 | -551.0 | -433.2 | |
| 0.00 | 2.27 | 0.00 | 1.44 | -7.73 | 233.93 | -37.18 | 106.64 | 0.6273 | -730.0 | -582.6 | |
| 0.00 | 2.63 | 0.00 | 1.69 | -7.57 | 233.25 | -37.86 | 106.11 | 0.6356 | -600.0 | -510.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -8.19 | 233.10 | -38.01 | 107.01 | 0.6397 | -573.0 | -579.9 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -10.18 | 232.40 | -38.71 | 109.67 | 0.6559 | -638.0 | -537.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
