SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.70 | 78.95 | 6.07 | 49.38 | 10.51 | 307.61 | 37.06 | 283.15 | 0.6106 | 26.9 | 99.9 | |
|
previous
or next observation for the same group /

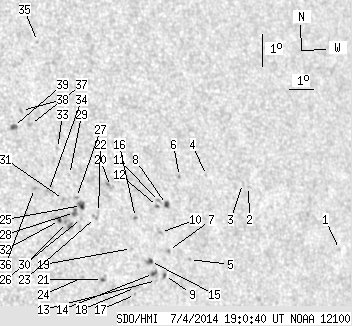

back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.72 | 9.05 | 317.01 | 46.45 | 279.40 | 0.7278 | -559.0 | -467.1 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 11.14 | 313.40 | 42.85 | 282.84 | 0.6866 | -680.0 | -610.7 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 11.24 | 313.17 | 42.61 | 283.03 | 0.6839 | -358.0 | -419.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 11.54 | 311.71 | 41.16 | 283.76 | 0.6662 | -566.0 | -452.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 8.99 | 310.62 | 40.06 | 280.10 | 0.6480 | -520.0 | -433.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 11.55 | 310.61 | 40.05 | 284.02 | 0.6521 | -725.0 | -572.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 9.30 | 309.81 | 39.26 | 280.70 | 0.6378 | -759.0 | -676.2 | |
| 1.63 | 3.27 | 1.05 | 2.11 | 10.71 | 309.94 | 39.38 | 282.87 | 0.6418 | -682.4 | -529.2 | |
| 0.45 | 1.63 | 0.29 | 1.04 | 8.54 | 309.56 | 39.00 | 279.55 | 0.6333 | -698.4 | -571.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 9.86 | 309.57 | 39.02 | 281.63 | 0.6355 | -729.0 | -565.5 | |
| 0.00 | 2.36 | 0.00 | 1.52 | 10.81 | 309.68 | 39.12 | 283.09 | 0.6385 | -500.0 | -541.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 10.66 | 309.57 | 39.02 | 282.88 | 0.6369 | -799.0 | -721.6 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 8.40 | 309.22 | 38.67 | 279.38 | 0.6287 | -598.0 | -644.2 | |
| 1.27 | 2.81 | 0.81 | 1.79 | 8.62 | 309.13 | 38.57 | 279.74 | 0.6277 | -904.6 | -717.5 | |
| 1.36 | 3.36 | 0.86 | 2.13 | 8.99 | 309.06 | 38.50 | 280.34 | 0.6273 | -843.8 | -765.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 10.36 | 308.65 | 38.10 | 282.59 | 0.6241 | -894.0 | -770.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 8.00 | 308.35 | 37.79 | 278.86 | 0.6164 | 492.0 | 410.8 | |
| 0.00 | 3.81 | 0.00 | 2.40 | 8.21 | 308.37 | 37.82 | 279.20 | 0.6170 | -489.0 | -350.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 9.41 | 308.36 | 37.81 | 281.14 | 0.6186 | -681.0 | -593.6 | |
| 0.00 | 3.90 | 0.00 | 2.45 | 11.34 | 307.82 | 37.26 | 284.37 | 0.6150 | -841.0 | -638.3 | |
| 0.54 | 2.81 | 0.34 | 1.74 | 8.50 | 307.13 | 36.57 | 279.88 | 0.6003 | 725.3 | 584.5 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 10.56 | 307.23 | 36.68 | 283.25 | 0.6055 | 443.0 | 371.2 | |
| 0.00 | 2.45 | 0.00 | 1.52 | 10.41 | 307.10 | 36.54 | 283.04 | 0.6033 | 505.0 | 465.5 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 8.59 | 306.37 | 35.82 | 280.16 | 0.5900 | 682.0 | 558.7 | |
| 2.09 | 5.18 | 1.29 | 3.19 | 10.80 | 306.61 | 36.05 | 283.80 | 0.5975 | 675.5 | 512.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 10.40 | 306.56 | 36.00 | 283.15 | 0.5959 | 604.0 | 437.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 11.05 | 306.45 | 35.90 | 284.26 | 0.5960 | 748.0 | 618.1 | |
| 0.00 | 3.90 | 0.00 | 2.40 | 10.59 | 306.31 | 35.76 | 283.54 | 0.5930 | 823.0 | 729.8 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 11.76 | 306.29 | 35.74 | 285.49 | 0.5955 | 668.0 | 602.2 | |
| 0.00 | 8.08 | 0.00 | 4.94 | 10.29 | 306.01 | 35.45 | 283.12 | 0.5881 | 605.0 | 661.9 | |
| 0.00 | 1.91 | 0.00 | 1.17 | 11.00 | 305.95 | 35.39 | 284.33 | 0.5890 | 833.0 | 632.4 | |
| 0.91 | 3.45 | 0.55 | 2.10 | 10.36 | 305.71 | 35.16 | 283.31 | 0.5842 | 996.8 | 787.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 12.58 | 305.96 | 35.40 | 286.95 | 0.5933 | 573.0 | 421.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 11.27 | 305.42 | 34.86 | 284.93 | 0.5823 | 743.0 | 722.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 15.92 | 305.79 | 35.24 | 292.45 | 0.6026 | 587.0 | 483.5 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 11.38 | 304.90 | 34.35 | 285.28 | 0.5755 | 869.0 | 708.3 | |
| 0.00 | 2.18 | 0.00 | 1.33 | 13.35 | 305.05 | 34.50 | 288.57 | 0.5835 | 720.0 | 561.2 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 13.80 | 304.78 | 34.23 | 289.42 | 0.5814 | 764.0 | 494.1 | |
| 1.45 | 3.81 | 0.88 | 2.30 | 13.31 | 304.40 | 33.84 | 288.76 | 0.5745 | 879.1 | 710.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
