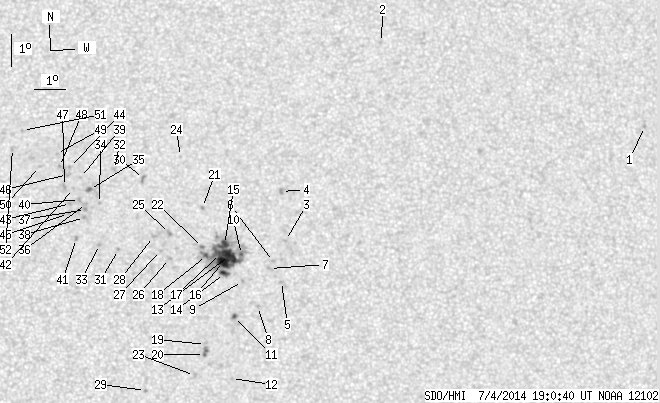

SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.13 | 186.39 | 19.31 | 94.43 | 11.43 | 279.01 | 8.46 | 315.15 | 0.2074 | -301.0 | -289.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.85 | 14.88 | 293.78 | 23.23 | 298.39 | 0.4351 | -969.0 | -765.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.67 | 285.23 | 14.67 | 316.11 | 0.3495 | -628.0 | -483.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.56 | 281.74 | 11.19 | 307.44 | 0.2405 | -962.0 | -712.6 | |
| 0.00 | 2.81 | 0.00 | 1.44 | 13.07 | 281.68 | 11.13 | 312.39 | 0.2557 | -1051.0 | -845.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 10.30 | 281.57 | 11.01 | 303.37 | 0.2260 | -715.0 | -507.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.92 | 281.34 | 10.78 | 306.19 | 0.2286 | -929.0 | -795.7 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 10.70 | 281.20 | 10.65 | 305.74 | 0.2247 | -862.0 | -760.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.54 | 280.79 | 10.23 | 302.24 | 0.2080 | -844.0 | -716.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.31 | 280.34 | 9.78 | 306.51 | 0.2090 | -853.0 | -819.5 | |
| 1.00 | 107.23 | 0.51 | 54.33 | 11.14 | 280.34 | 9.78 | 309.65 | 0.2175 | -703.1 | -631.1 | |
| 0.91 | 1.91 | 0.46 | 0.96 | 9.24 | 280.06 | 9.50 | 302.85 | 0.1948 | -1169.0 | -1025.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.35 | 279.91 | 9.36 | 294.12 | 0.1775 | -809.0 | -680.5 | |
| 11.71 | -10.00 | 5.94 | -10.00 | 11.12 | 279.96 | 9.40 | 310.65 | 0.2122 | -1149.2 | 999999 | |
| 3.09 | -10.00 | 1.56 | -10.00 | 10.56 | 279.78 | 9.23 | 309.09 | 0.2040 | -1023.2 | 999999 | |
| 5.63 | -10.00 | 2.85 | -10.00 | 11.46 | 279.81 | 9.26 | 312.30 | 0.2141 | -1055.1 | 999999 | |
| 11.62 | -10.00 | 5.88 | -10.00 | 10.93 | 279.76 | 9.21 | 310.55 | 0.2077 | -1379.8 | 999999 | |
| 2.27 | -10.00 | 1.15 | -10.00 | 11.18 | 279.68 | 9.12 | 311.73 | 0.2093 | -1191.9 | 999999 | |
| 1.45 | -10.00 | 0.73 | -10.00 | 11.12 | 279.23 | 8.68 | 312.91 | 0.2031 | -1175.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 8.39 | 279.13 | 8.57 | 301.48 | 0.1737 | -616.0 | -631.4 | |
| 0.45 | 4.63 | 0.23 | 2.33 | 8.09 | 279.09 | 8.54 | 300.05 | 0.1705 | -1085.4 | -1001.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.60 | 279.16 | 8.60 | 318.18 | 0.2199 | -773.0 | -615.7 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 11.37 | 279.12 | 8.56 | 314.19 | 0.2045 | -840.0 | -653.1 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 7.45 | 278.77 | 8.21 | 297.54 | 0.1604 | 701.0 | 569.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 14.19 | 278.52 | 7.96 | 324.78 | 0.2340 | -809.0 | -529.0 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.81 | 278.09 | 7.54 | 319.31 | 0.1979 | -984.0 | -883.5 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.04 | 278.07 | 7.52 | 316.66 | 0.1879 | -834.0 | -665.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.29 | 277.80 | 7.24 | 318.62 | 0.1878 | -797.0 | -608.8 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.72 | 277.59 | 7.03 | 320.94 | 0.1912 | -874.0 | -693.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.00 | 277.24 | 6.69 | 299.69 | 0.1336 | 963.0 | 713.9 | |
| 0.00 | 2.81 | 0.00 | 1.43 | 13.52 | 277.33 | 6.77 | 327.31 | 0.2132 | 900.0 | 813.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.33 | 276.48 | 5.93 | 324.28 | 0.1743 | 873.0 | 626.6 | |
| 0.00 | 3.18 | 0.00 | 1.61 | 13.80 | 276.42 | 5.86 | 331.59 | 0.2095 | -820.0 | -569.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 11.49 | 275.89 | 5.34 | 327.57 | 0.1708 | 940.0 | 715.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.75 | 275.92 | 5.37 | 331.12 | 0.1897 | 833.0 | 654.2 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.19 | 275.62 | 5.06 | 333.57 | 0.1938 | 1199.0 | 973.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.75 | 275.51 | 4.96 | 332.99 | 0.1864 | 930.0 | 795.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.57 | 275.48 | 4.92 | 332.68 | 0.1833 | 919.0 | 762.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.32 | 275.44 | 4.89 | 332.21 | 0.1793 | 954.0 | 769.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.56 | 275.34 | 4.79 | 335.64 | 0.1976 | 858.0 | 661.4 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 12.88 | 275.30 | 4.74 | 334.31 | 0.1867 | 1051.0 | 879.0 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 11.68 | 275.18 | 4.62 | 331.72 | 0.1674 | 914.0 | 750.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.22 | 275.12 | 4.56 | 335.94 | 0.1907 | 914.0 | 769.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.76 | 275.01 | 4.46 | 335.38 | 0.1827 | 925.0 | 767.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.87 | 275.00 | 4.45 | 337.80 | 0.2002 | 909.0 | 718.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.45 | 274.94 | 4.39 | 334.97 | 0.1774 | 931.0 | 719.9 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 13.66 | 274.94 | 4.38 | 337.68 | 0.1963 | 814.0 | 699.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 13.28 | 274.83 | 4.28 | 337.39 | 0.1898 | 928.0 | 798.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.90 | 274.69 | 4.13 | 339.29 | 0.1987 | 940.0 | 828.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.31 | 274.60 | 4.05 | 340.39 | 0.2047 | 898.0 | 629.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.91 | 274.06 | 3.50 | 342.22 | 0.1952 | 887.0 | 749.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.03 | 273.54 | 2.99 | 346.16 | 0.2113 | 820.0 | 652.8 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 14.47 | 273.22 | 2.66 | 346.98 | 0.2007 | 785.0 | 676.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
