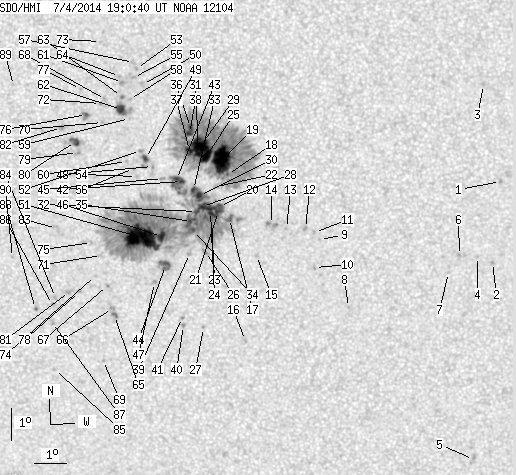

SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216.24 | 1179.01 | 110.90 | 605.39 | -11.65 | 268.46 | -2.10 | 172.09 | 0.2619 | 386.0 | 111.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.08 | -11.23 | 278.33 | 7.78 | 208.02 | 0.2838 | 857.0 | 612.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -13.79 | 278.15 | 7.60 | 203.70 | 0.3209 | 944.0 | 718.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.19 | 277.74 | 7.18 | 212.02 | 0.2344 | 897.0 | 762.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.59 | 277.67 | 7.12 | 202.60 | 0.3148 | 832.0 | 668.6 | |
| 0.00 | 5.08 | 0.00 | 2.77 | -20.19 | 277.79 | 7.24 | 196.57 | 0.4163 | 877.0 | 621.4 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -13.56 | 277.10 | 6.55 | 201.01 | 0.3107 | 973.0 | 764.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.10 | 276.77 | 6.22 | 199.42 | 0.3172 | 751.0 | 578.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.20 | 273.63 | 3.08 | 189.30 | 0.3220 | 980.0 | 726.3 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -13.02 | 272.70 | 2.14 | 187.41 | 0.2838 | 870.0 | 737.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.91 | 272.55 | 1.99 | 186.53 | 0.2983 | 958.0 | 800.3 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -12.80 | 272.54 | 1.99 | 186.97 | 0.2797 | 911.0 | 746.2 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -12.67 | 272.26 | 1.70 | 186.04 | 0.2770 | 932.0 | 797.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -12.67 | 271.67 | 1.11 | 183.94 | 0.2761 | 883.0 | 778.5 | |
| 0.00 | 6.08 | 0.00 | 3.13 | -12.54 | 271.20 | 0.64 | 182.30 | 0.2736 | 768.0 | 901.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.53 | 270.73 | 0.17 | 180.58 | 0.2899 | 774.0 | 650.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -16.25 | 270.38 | -0.18 | 179.49 | 0.3353 | 885.0 | 693.3 | |
| 2.36 | 589.61 | 1.21 | 304.00 | -12.35 | 269.89 | -0.67 | 177.57 | 0.2704 | 1016.6 | -182.0 | |
| 0.91 | 417.28 | 0.46 | 212.60 | -10.96 | 269.83 | -0.73 | 177.10 | 0.2469 | 847.2 | 493.2 | |
| 36.77 | -18.00 | 18.76 | -18.00 | -10.49 | 269.65 | -0.91 | 176.24 | 0.2391 | 1438.8 | 999999 | |
| 3.09 | -17.00 | 1.59 | -17.00 | -11.97 | 269.58 | -0.98 | 176.36 | 0.2642 | 1097.4 | 999999 | |
| 4.72 | -17.00 | 2.43 | -17.00 | -12.13 | 269.54 | -1.01 | 176.28 | 0.2669 | 1029.1 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -11.34 | 269.49 | -1.07 | 175.85 | 0.2537 | 779.0 | 669.3 | |
| 1.54 | -17.00 | 0.79 | -17.00 | -12.38 | 269.32 | -1.23 | 175.55 | 0.2715 | 770.8 | 999999 | |
| 9.71 | -17.00 | 4.99 | -17.00 | -12.13 | 269.30 | -1.26 | 175.37 | 0.2672 | 1070.4 | 999999 | |
| 11.89 | -18.00 | 6.07 | -18.00 | -10.37 | 269.18 | -1.37 | 174.28 | 0.2376 | 1369.5 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -13.40 | 269.13 | -1.42 | 175.17 | 0.2888 | -680.0 | -722.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.83 | 269.05 | -1.51 | 175.57 | 0.3293 | 915.0 | 760.7 | |
| 5.63 | -17.00 | 2.89 | -17.00 | -11.97 | 269.05 | -1.51 | 174.40 | 0.2650 | 1018.6 | 999999 | |
| 20.43 | -18.00 | 10.40 | -18.00 | -10.05 | 269.00 | -1.56 | 173.36 | 0.2327 | 1558.6 | 999999 | |
| 3.81 | -17.00 | 1.96 | -17.00 | -11.63 | 268.96 | -1.60 | 173.92 | 0.2593 | 1333.9 | 999999 | |
| 3.36 | -18.00 | 1.71 | -18.00 | -10.34 | 268.93 | -1.62 | 173.24 | 0.2376 | 1276.1 | 999999 | |
| 2.63 | -17.00 | 1.35 | -17.00 | -12.13 | 268.86 | -1.70 | 173.77 | 0.2679 | 745.8 | 999999 | |
| 2.27 | -17.00 | 1.16 | -17.00 | -11.44 | 268.77 | -1.78 | 173.13 | 0.2564 | 1264.2 | 999999 | |
| 1.54 | -17.00 | 0.80 | -17.00 | -12.73 | 268.76 | -1.79 | 173.67 | 0.2782 | 286.8 | 999999 | |
| 9.17 | -17.00 | 4.72 | -17.00 | -12.45 | 268.70 | -1.85 | 173.34 | 0.2735 | 392.4 | 999999 | |
| 2.54 | -18.00 | 1.29 | -18.00 | -9.49 | 268.69 | -1.86 | 171.72 | 0.2238 | 1373.3 | 999999 | |
| 4.90 | -18.00 | 2.50 | -18.00 | -10.21 | 268.66 | -1.90 | 172.02 | 0.2361 | 1155.6 | 999999 | |
| 3.36 | -18.00 | 1.71 | -18.00 | -9.68 | 268.66 | -1.90 | 171.71 | 0.2271 | 1393.2 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -13.46 | 268.63 | -1.93 | 173.51 | 0.2906 | -899.0 | -723.5 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -15.77 | 268.42 | -2.14 | 173.71 | 0.3292 | 881.0 | 649.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.51 | 268.39 | -2.17 | 173.53 | 0.3250 | 902.0 | 709.4 | |
| 3.18 | -17.00 | 1.63 | -17.00 | -11.18 | 268.40 | -2.16 | 171.58 | 0.2531 | 1225.2 | 999999 | |
| 3.63 | -17.00 | 1.86 | -17.00 | -11.12 | 268.24 | -2.31 | 170.94 | 0.2524 | 1071.3 | 999999 | |
| 5.72 | 12.62 | 2.97 | 6.55 | -13.85 | 267.87 | -2.68 | 171.21 | 0.2987 | -1082.4 | -882.4 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -11.09 | 267.81 | -2.75 | 169.25 | 0.2532 | 746.0 | 589.3 | |
| 5.99 | -17.00 | 3.09 | -17.00 | -12.92 | 267.76 | -2.80 | 170.31 | 0.2837 | -1422.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -14.39 | 267.52 | -3.04 | 170.38 | 0.3086 | -1035.0 | -796.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.71 | 267.50 | -3.05 | 167.77 | 0.2479 | 775.0 | 670.9 | |
| 2.63 | 7.35 | 1.34 | 3.76 | -10.46 | 267.29 | -3.27 | 166.70 | 0.2446 | 1094.7 | 664.3 | |
| 0.00 | 2.81 | 0.00 | 1.42 | -8.15 | 267.22 | -3.33 | 163.76 | 0.2067 | 724.0 | 579.5 | |
| 51.57 | -17.00 | 26.65 | -17.00 | -12.96 | 267.13 | -3.42 | 168.22 | 0.2862 | -1388.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -10.21 | 267.14 | -3.42 | 165.85 | 0.2411 | 814.0 | 689.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.66 | 267.04 | -3.51 | 162.19 | 0.1995 | 917.0 | 736.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.03 | 267.00 | -3.55 | 166.14 | 0.2551 | -791.0 | -559.5 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -7.94 | 266.95 | -3.61 | 162.17 | 0.2046 | 974.0 | 758.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.78 | 266.91 | -3.64 | 165.55 | 0.2513 | -90.0 | -106.8 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -7.47 | 266.95 | -3.60 | 161.46 | 0.1970 | 700.0 | 658.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -8.62 | 266.82 | -3.74 | 162.58 | 0.2164 | 835.0 | 676.4 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -9.21 | 266.81 | -3.75 | 163.35 | 0.2261 | 728.0 | 605.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.56 | 266.70 | -3.86 | 164.51 | 0.2486 | -720.0 | -471.5 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -8.09 | 266.61 | -3.95 | 160.86 | 0.2090 | 1056.0 | 838.0 | |
| 7.08 | 16.07 | 3.60 | 8.16 | -8.93 | 266.56 | -3.99 | 161.94 | 0.2228 | 1171.2 | 816.0 | |
| 0.36 | 1.54 | 0.18 | 0.78 | -8.53 | 266.57 | -3.99 | 161.38 | 0.2162 | 1124.2 | 991.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.91 | 266.51 | -4.04 | 160.15 | 0.2065 | 919.0 | 662.6 | |
| 0.00 | 3.54 | 0.00 | 1.86 | -15.45 | 266.23 | -4.32 | 167.23 | 0.3300 | -980.0 | -910.2 | |
| 0.00 | 2.81 | 0.00 | 1.47 | -15.23 | 266.18 | -4.38 | 166.91 | 0.3266 | -1000.0 | -912.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.49 | 266.03 | -4.52 | 165.93 | 0.3153 | -1020.0 | -829.0 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -8.62 | 266.07 | -4.48 | 159.40 | 0.2206 | 990.0 | 656.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.91 | 265.85 | -4.71 | 167.16 | 0.3547 | -764.0 | -616.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.34 | 265.97 | -4.58 | 160.09 | 0.2327 | 1039.0 | 805.3 | |
| 0.00 | 3.18 | 0.00 | 1.65 | -13.53 | 265.87 | -4.69 | 164.60 | 0.3006 | -793.0 | -481.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.75 | 265.92 | -4.64 | 158.95 | 0.2235 | 873.0 | 674.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -6.82 | 265.94 | -4.61 | 155.43 | 0.1930 | 838.0 | 714.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -14.17 | 265.66 | -4.89 | 164.55 | 0.3117 | -729.0 | -557.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.12 | 265.56 | -4.99 | 163.24 | 0.2954 | -729.0 | -554.5 | |
| 1.00 | 5.81 | 0.51 | 2.96 | -9.09 | 265.48 | -5.08 | 157.75 | 0.2317 | 1124.5 | 832.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.32 | 265.31 | -5.25 | 155.67 | 0.2207 | 898.0 | 718.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.68 | 265.14 | -5.41 | 163.49 | 0.3223 | -927.0 | -810.5 | |
| 0.00 | 3.09 | 0.00 | 1.58 | -10.28 | 265.18 | -5.38 | 158.48 | 0.2524 | 629.0 | 502.9 | |
| 4.09 | 11.08 | 2.09 | 5.66 | -9.94 | 265.12 | -5.43 | 157.75 | 0.2473 | 1016.4 | 453.3 | |
| 0.00 | 3.27 | 0.00 | 1.71 | -14.69 | 264.83 | -5.73 | 162.58 | 0.3239 | -990.0 | -777.5 | |
| 0.00 | 3.72 | 0.00 | 1.90 | -9.50 | 264.70 | -5.86 | 155.45 | 0.2434 | 987.0 | 812.3 | |
| 0.00 | 4.54 | 0.00 | 2.35 | -12.68 | 264.47 | -6.08 | 159.34 | 0.2943 | -656.0 | -702.0 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -14.88 | 264.38 | -6.18 | 161.50 | 0.3292 | -846.0 | -609.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.21 | 264.27 | -6.28 | 163.33 | 0.3660 | -678.0 | -548.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.11 | 264.28 | -6.28 | 161.45 | 0.3333 | -853.0 | -667.7 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -15.68 | 264.26 | -6.30 | 161.96 | 0.3424 | -798.0 | -700.1 | |
| 0.36 | 1.36 | 0.19 | 0.72 | -15.24 | 263.73 | -6.82 | 160.10 | 0.3383 | -923.2 | -778.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.20 | 263.23 | -7.32 | 147.50 | 0.2359 | -705.0 | -553.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.61 | 263.06 | -7.50 | 156.35 | 0.3175 | -703.0 | -559.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
