SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.02 | 725.80 | 72.91 | 401.46 | -19.20 | 256.96 | -13.59 | 149.84 | 0.4442 | 782.3 | 335.1 | |
|
previous
or next observation for the same group /

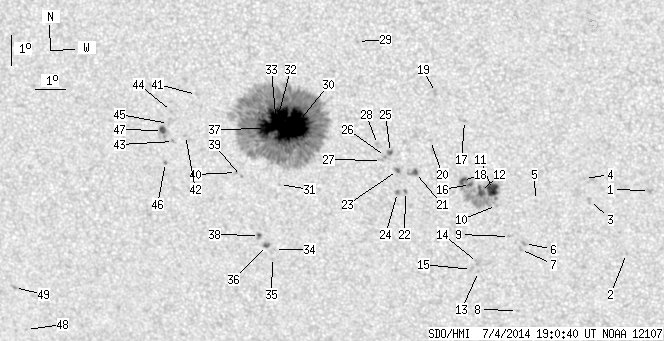

back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.38 | -20.89 | 267.92 | -2.64 | 174.00 | 0.4128 | 813.0 | 763.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -23.01 | 267.12 | -3.44 | 172.88 | 0.4476 | 764.0 | 611.9 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -21.23 | 265.95 | -4.61 | 169.75 | 0.4226 | 717.0 | 541.5 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -20.49 | 265.81 | -4.75 | 169.10 | 0.4115 | 794.0 | 673.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.23 | 264.17 | -6.38 | 165.95 | 0.4286 | 498.0 | 456.6 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -22.69 | 263.74 | -6.81 | 165.93 | 0.4523 | 850.0 | 710.9 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -22.89 | 263.60 | -6.96 | 165.77 | 0.4560 | 716.0 | 566.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.98 | 263.38 | -7.18 | 166.52 | 0.4880 | 636.0 | 502.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.45 | 263.25 | -7.30 | 164.83 | 0.4507 | 667.0 | 544.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.41 | 262.88 | -7.68 | 163.39 | 0.4367 | 595.0 | 504.4 | |
| 10.17 | 69.73 | 5.57 | 38.29 | -20.87 | 262.78 | -7.78 | 162.79 | 0.4291 | 1132.2 | 360.5 | |
| 4.09 | -11.00 | 2.24 | -11.00 | -20.94 | 262.38 | -8.18 | 162.02 | 0.4321 | 913.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.65 | 262.15 | -8.41 | 163.49 | 0.4732 | -680.0 | -483.3 | |
| 0.00 | 3.72 | 0.00 | 2.09 | -23.34 | 262.13 | -8.42 | 163.26 | 0.4688 | -814.0 | -641.1 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -23.58 | 261.91 | -8.64 | 163.01 | 0.4733 | -631.0 | -595.2 | |
| 1.00 | -11.00 | 0.55 | -11.00 | -20.71 | 262.06 | -8.49 | 161.19 | 0.4302 | 1079.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.59 | 261.98 | -8.57 | 159.17 | 0.3991 | 756.0 | 530.5 | |
| 2.63 | -11.00 | 1.44 | -11.00 | -20.58 | 261.81 | -8.75 | 160.56 | 0.4296 | 914.1 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -17.68 | 261.09 | -9.47 | 156.28 | 0.3911 | 559.0 | 567.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.26 | 260.83 | -9.72 | 157.36 | 0.4157 | -674.0 | -456.1 | |
| 1.36 | 5.54 | 0.75 | 3.04 | -20.33 | 260.27 | -10.28 | 157.25 | 0.4346 | -1076.9 | -836.7 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.97 | 259.90 | -10.66 | 157.12 | 0.4460 | -1008.0 | -836.8 | |
| 0.73 | 2.45 | 0.40 | 1.35 | -20.27 | 259.68 | -10.87 | 156.03 | 0.4374 | -1055.1 | -912.3 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -21.00 | 259.63 | -10.93 | 156.64 | 0.4482 | -903.0 | -741.8 | |
| 1.00 | 2.81 | 0.55 | 1.54 | -19.67 | 259.49 | -11.06 | 155.06 | 0.4302 | -999.3 | -798.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.81 | 259.32 | -11.24 | 154.85 | 0.4333 | -825.0 | -696.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.94 | 259.18 | -11.38 | 154.72 | 0.4361 | -774.0 | -643.1 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -19.41 | 259.08 | -11.47 | 153.98 | 0.4293 | -733.0 | -616.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -16.05 | 258.66 | -11.90 | 148.97 | 0.3860 | -603.0 | -578.2 | |
| 60.10 | 581.25 | 33.17 | 321.40 | -18.85 | 256.38 | -14.17 | 148.26 | 0.4423 | 1528.2 | 414.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.78 | 255.70 | -14.86 | 149.40 | 0.4729 | 529.0 | 418.5 | |
| 21.70 | -30.00 | 11.97 | -30.00 | -18.46 | 255.88 | -14.67 | 146.88 | 0.4414 | 1512.6 | 999999 | |
| 13.26 | -30.00 | 7.33 | -30.00 | -18.83 | 255.78 | -14.77 | 147.17 | 0.4470 | 1299.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.98 | 255.28 | -15.27 | 151.14 | 0.5044 | -723.0 | -574.2 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -23.25 | 255.18 | -15.37 | 151.27 | 0.5087 | -303.0 | -349.8 | |
| 1.27 | 3.09 | 0.73 | 1.77 | -22.84 | 255.03 | -15.53 | 150.60 | 0.5046 | -930.4 | -809.2 | |
| 11.35 | -30.00 | 6.30 | -30.00 | -18.93 | 255.41 | -15.15 | 146.66 | 0.4515 | 1061.5 | 999999 | |
| 0.73 | 2.54 | 0.42 | 1.45 | -22.51 | 254.83 | -15.73 | 149.93 | 0.5019 | -771.6 | -673.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.53 | 254.44 | -16.12 | 147.06 | 0.4800 | 697.0 | 492.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.40 | 254.28 | -16.27 | 146.65 | 0.4796 | 611.0 | 433.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.85 | 253.21 | -17.35 | 141.55 | 0.4584 | -759.0 | -619.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.20 | 252.69 | -17.87 | 142.63 | 0.4793 | 656.0 | 379.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.41 | 252.26 | -18.30 | 142.25 | 0.4857 | -792.0 | -632.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.42 | 252.30 | -18.25 | 140.97 | 0.4738 | -735.0 | -638.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.82 | 252.16 | -18.40 | 141.30 | 0.4798 | -701.0 | -472.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.11 | 251.90 | -18.66 | 142.65 | 0.4972 | -984.0 | -825.7 | |
| 2.63 | 6.17 | 1.49 | 3.49 | -19.05 | 251.92 | -18.63 | 141.28 | 0.4847 | -1050.5 | -770.1 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -25.91 | 245.94 | -24.61 | 142.18 | 0.6131 | -683.0 | -559.3 | |
| 0.00 | 2.45 | 0.00 | 1.51 | -24.46 | 245.82 | -24.74 | 140.39 | 0.5996 | -649.0 | -524.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
