SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.38 | 587.97 | 87.79 | 351.85 | -7.61 | 238.20 | -32.36 | 108.85 | 0.5618 | -23.4 | -33.6 | |
|
previous
or next observation for the same group /

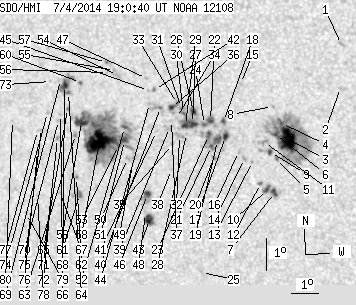

back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.52 | -4.57 | 244.37 | -26.19 | 106.49 | 0.4607 | 753.0 | 539.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -5.89 | 244.27 | -26.29 | 109.16 | 0.4682 | 683.0 | 521.5 | |
| 27.69 | 147.08 | 15.86 | 84.19 | -7.55 | 242.37 | -28.19 | 111.10 | 0.5039 | 1234.2 | 475.5 | |
| 1.09 | -3.00 | 0.62 | -3.00 | -7.06 | 242.16 | -28.40 | 110.04 | 0.5044 | 783.3 | 999999 | |
| 0.45 | 2.27 | 0.26 | 1.31 | -8.15 | 241.90 | -28.65 | 111.90 | 0.5136 | 619.2 | 484.7 | |
| 1.27 | -3.00 | 0.73 | -3.00 | -7.41 | 241.92 | -28.63 | 110.54 | 0.5094 | 723.1 | 999999 | |
| 3.09 | 10.99 | 1.79 | 6.37 | -9.22 | 241.74 | -28.81 | 113.71 | 0.5216 | 952.9 | 542.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.54 | 241.88 | -28.68 | 108.89 | 0.5059 | 649.0 | 555.7 | |
| 1.73 | 6.17 | 1.00 | 3.57 | -7.97 | 241.71 | -28.85 | 111.44 | 0.5154 | 781.6 | 505.1 | |
| 2.81 | -7.00 | 1.64 | -7.00 | -9.13 | 241.50 | -29.05 | 113.38 | 0.5244 | 849.7 | 999999 | |
| 0.00 | 5.27 | 0.00 | 3.04 | -7.67 | 241.52 | -29.04 | 110.76 | 0.5164 | 646.0 | 560.0 | |
| 0.64 | 1.91 | 0.37 | 1.11 | -8.95 | 241.27 | -29.29 | 112.90 | 0.5266 | 718.0 | 525.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.27 | 241.05 | -29.51 | 111.54 | 0.5261 | 664.0 | 545.9 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -8.18 | 240.77 | -29.79 | 111.21 | 0.5295 | 626.0 | 519.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -5.86 | 240.80 | -29.76 | 106.99 | 0.5183 | 703.0 | 622.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -7.97 | 240.57 | -29.98 | 110.71 | 0.5311 | 501.0 | 426.9 | |
| 3.09 | 39.31 | 1.81 | 23.11 | -7.52 | 240.15 | -30.41 | 109.64 | 0.5349 | 955.7 | 492.1 | |
| 1.36 | -17.00 | 0.80 | -17.00 | -7.05 | 240.11 | -30.44 | 108.79 | 0.5332 | 1134.3 | 999999 | |
| 4.09 | -17.00 | 2.40 | -17.00 | -7.65 | 239.85 | -30.70 | 109.70 | 0.5396 | 830.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -8.22 | 239.66 | -30.90 | 110.58 | 0.5449 | -945.0 | -834.8 | |
| 1.00 | -17.00 | 0.59 | -17.00 | -7.84 | 239.62 | -30.94 | 109.91 | 0.5437 | 490.9 | 999999 | |
| 3.36 | 10.44 | 1.97 | 6.14 | -7.04 | 239.65 | -30.91 | 108.50 | 0.5396 | 954.4 | 663.9 | |
| 2.54 | -17.00 | 1.50 | -17.00 | -7.50 | 239.54 | -31.02 | 109.27 | 0.5433 | 754.4 | 999999 | |
| 1.27 | -22.00 | 0.75 | -22.00 | -7.17 | 239.42 | -31.13 | 108.61 | 0.5434 | 721.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -11.81 | 238.83 | -31.73 | 116.04 | 0.5750 | 626.0 | 405.2 | |
| 3.18 | 28.24 | 1.88 | 16.72 | -6.78 | 239.06 | -31.50 | 107.72 | 0.5468 | 691.9 | 112.5 | |
| 5.45 | -26.00 | 3.23 | -26.00 | -7.15 | 238.99 | -31.56 | 108.34 | 0.5493 | 745.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -7.47 | 238.75 | -31.81 | 108.76 | 0.5540 | 352.0 | 293.2 | |
| 4.18 | -26.00 | 2.48 | -26.00 | -7.22 | 238.73 | -31.82 | 108.32 | 0.5532 | 659.3 | 999999 | |
| 1.18 | -26.00 | 0.70 | -26.00 | -6.85 | 238.69 | -31.87 | 107.66 | 0.5522 | 661.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.66 | 238.63 | -31.92 | 107.31 | 0.5522 | 394.0 | 384.3 | |
| 0.00 | 5.54 | 0.00 | 3.30 | -7.54 | 238.49 | -32.07 | 108.74 | 0.5579 | 161.0 | 291.9 | |
| 0.27 | 7.35 | 0.16 | 4.38 | -6.54 | 238.50 | -32.06 | 107.03 | 0.5536 | 777.3 | 547.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -6.98 | 238.43 | -32.13 | 107.75 | 0.5564 | 297.0 | 209.5 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -7.82 | 238.21 | -32.35 | 109.08 | 0.5630 | 346.0 | 105.3 | |
| 2.18 | -33.00 | 1.30 | -33.00 | -6.68 | 238.27 | -32.29 | 107.14 | 0.5573 | 793.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -7.08 | 238.24 | -32.32 | 107.82 | 0.5594 | -236.0 | -206.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.60 | 238.10 | -32.46 | 110.33 | 0.5680 | -321.0 | -382.3 | |
| 0.00 | 5.90 | 0.00 | 3.53 | -7.30 | 238.15 | -32.41 | 108.15 | 0.5616 | 53.0 | -68.4 | |
| 0.54 | 7.08 | 0.33 | 4.24 | -6.69 | 237.87 | -32.69 | 106.96 | 0.5629 | 613.8 | 187.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -7.44 | 237.66 | -32.90 | 108.14 | 0.5689 | -253.0 | -253.5 | |
| 0.45 | 1.63 | 0.27 | 0.98 | -6.14 | 237.69 | -32.87 | 105.93 | 0.5633 | 706.8 | 577.8 | |
| 6.81 | 8.81 | 4.17 | 5.39 | -10.19 | 237.11 | -33.44 | 112.37 | 0.5887 | -967.6 | -649.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -6.58 | 237.47 | -33.08 | 106.59 | 0.5680 | 394.0 | 194.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -6.17 | 237.47 | -33.09 | 105.90 | 0.5665 | 482.0 | 371.6 | |
| 3.63 | 12.17 | 2.21 | 7.43 | -9.41 | 237.13 | -33.42 | 111.12 | 0.5847 | 804.9 | 313.3 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -5.81 | 237.42 | -33.14 | 105.24 | 0.5658 | 626.0 | 504.8 | |
| 0.00 | 2.27 | 0.00 | 1.39 | -10.01 | 236.99 | -33.57 | 112.00 | 0.5895 | -349.0 | -363.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -8.30 | 236.73 | -33.83 | 109.10 | 0.5851 | -805.0 | -695.6 | |
| 0.00 | 2.09 | 0.00 | 1.28 | -8.31 | 236.50 | -34.05 | 109.00 | 0.5881 | -734.0 | -687.8 | |
| 3.18 | 199.20 | 1.94 | 122.68 | -7.75 | 236.45 | -34.11 | 108.06 | 0.5866 | -996.7 | -565.3 | |
| 1.73 | -51.00 | 1.05 | -51.00 | -7.35 | 236.48 | -34.07 | 107.41 | 0.5845 | -1150.5 | 999999 | |
| 1.27 | -51.00 | 0.78 | -51.00 | -7.92 | 236.21 | -34.35 | 108.21 | 0.5905 | -851.8 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.65 | -5.75 | 236.35 | -34.20 | 104.69 | 0.5804 | 740.0 | 464.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -5.59 | 236.25 | -34.30 | 104.39 | 0.5812 | 688.0 | 554.1 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -5.66 | 235.99 | -34.57 | 104.40 | 0.5851 | 186.0 | 120.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -5.36 | 235.97 | -34.59 | 103.88 | 0.5843 | 639.0 | 559.6 | |
| 39.77 | -51.00 | 24.57 | -51.00 | -7.81 | 235.51 | -35.05 | 107.71 | 0.5995 | -1169.6 | 999999 | |
| 9.08 | -51.00 | 5.64 | -51.00 | -7.21 | 234.88 | -35.67 | 106.47 | 0.6055 | -938.0 | 999999 | |
| 0.73 | 1.73 | 0.45 | 1.07 | -6.01 | 234.95 | -35.61 | 104.55 | 0.6004 | -919.8 | -752.5 | |
| 1.73 | 7.44 | 1.09 | 4.69 | -9.49 | 234.56 | -36.00 | 109.91 | 0.6187 | -875.9 | -697.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -8.97 | 234.51 | -36.05 | 109.06 | 0.6172 | -817.0 | -694.3 | |
| 0.00 | 3.00 | 0.00 | 1.87 | -7.63 | 234.62 | -35.94 | 107.01 | 0.6106 | -747.0 | -507.5 | |
| 1.00 | 17.16 | 0.62 | 10.68 | -6.33 | 234.47 | -36.09 | 104.89 | 0.6080 | -932.3 | -731.9 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -6.83 | 234.39 | -36.17 | 105.65 | 0.6108 | -721.0 | -611.8 | |
| 4.54 | -64.00 | 2.83 | -64.00 | -6.12 | 234.33 | -36.22 | 104.49 | 0.6091 | -917.1 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.67 | -9.49 | 233.83 | -36.73 | 109.54 | 0.6281 | -600.0 | -437.4 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -7.02 | 234.10 | -36.45 | 105.84 | 0.6152 | -523.0 | -412.6 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -5.94 | 234.19 | -36.36 | 104.15 | 0.6104 | -245.0 | -349.0 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -7.21 | 234.01 | -36.55 | 106.10 | 0.6171 | -507.0 | -418.2 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -7.77 | 233.91 | -36.64 | 106.94 | 0.6204 | -842.0 | -720.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -9.47 | 233.48 | -37.07 | 109.35 | 0.6325 | -507.0 | -464.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -6.01 | 233.81 | -36.75 | 104.13 | 0.6158 | -389.0 | -336.8 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -6.98 | 233.61 | -36.95 | 105.57 | 0.6216 | -523.0 | -484.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -7.48 | 233.32 | -37.23 | 106.24 | 0.6270 | -410.0 | -447.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -8.21 | 233.09 | -37.46 | 107.26 | 0.6326 | -538.0 | -513.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -7.55 | 233.16 | -37.39 | 106.28 | 0.6294 | -510.0 | -444.6 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -9.58 | 232.92 | -37.63 | 109.27 | 0.6400 | -575.0 | -473.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -10.16 | 232.41 | -38.14 | 109.89 | 0.6488 | -648.0 | -570.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -7.27 | 232.22 | -38.34 | 105.49 | 0.6408 | -343.0 | -331.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
