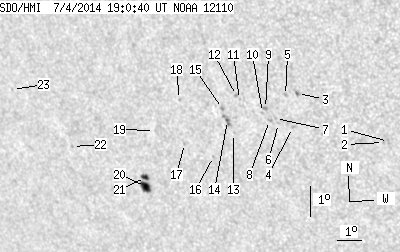

SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.44 | 41.79 | 7.31 | 27.92 | -15.91 | 232.71 | -37.84 | 118.31 | 0.6710 | -108.3 | -49.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.61 | -15.69 | 239.79 | -30.77 | 122.76 | 0.5878 | 642.0 | 455.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -15.73 | 239.60 | -30.96 | 122.67 | 0.5904 | 505.0 | 383.8 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -14.25 | 236.63 | -33.92 | 118.31 | 0.6166 | 846.0 | 692.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -15.35 | 236.24 | -34.32 | 119.65 | 0.6278 | 750.0 | 559.0 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -14.33 | 236.16 | -34.40 | 118.12 | 0.6228 | 728.0 | 518.1 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -15.24 | 235.72 | -34.83 | 119.15 | 0.6332 | 549.0 | 471.0 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -15.08 | 235.64 | -34.92 | 118.87 | 0.6333 | 718.0 | 593.3 | |
| 0.00 | 1.73 | 0.00 | 1.11 | -15.16 | 235.39 | -35.16 | 118.81 | 0.6367 | 554.0 | 497.1 | |
| 0.00 | 2.09 | 0.00 | 1.34 | -14.77 | 235.31 | -35.25 | 118.21 | 0.6355 | 878.0 | 731.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.91 | 235.17 | -35.39 | 118.31 | 0.6379 | 433.0 | 402.7 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -14.52 | 234.35 | -36.21 | 117.25 | 0.6455 | 533.0 | 387.9 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -14.39 | 234.25 | -36.30 | 117.02 | 0.6460 | 460.0 | 381.7 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -15.62 | 233.89 | -36.67 | 118.53 | 0.6569 | -493.0 | -418.3 | |
| 0.64 | 5.18 | 0.42 | 3.39 | -15.21 | 233.74 | -36.82 | 117.87 | 0.6564 | -804.3 | -718.0 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -14.83 | 233.62 | -36.94 | 117.26 | 0.6558 | -928.0 | -711.0 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -16.40 | 232.92 | -37.63 | 119.02 | 0.6721 | -518.0 | -561.0 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -16.02 | 231.83 | -38.72 | 117.87 | 0.6824 | -422.0 | -404.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -14.60 | 231.95 | -38.61 | 116.00 | 0.6741 | -671.0 | -505.1 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -15.64 | 230.69 | -39.86 | 116.75 | 0.6935 | -665.0 | -591.6 | |
| 7.08 | 14.07 | 4.98 | 9.88 | -17.48 | 229.84 | -40.71 | 118.72 | 0.7117 | -684.0 | -478.6 | |
| 2.72 | -20.00 | 1.91 | -20.00 | -17.19 | 229.93 | -40.63 | 118.38 | 0.7094 | -780.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -16.30 | 227.03 | -43.53 | 115.80 | 0.7365 | -508.0 | -419.9 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -14.56 | 224.83 | -45.72 | 112.65 | 0.7532 | -418.0 | -343.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
