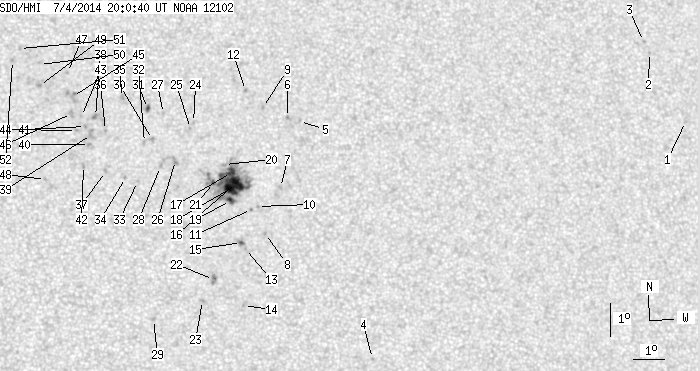

SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.04 | 201.28 | 19.30 | 102.12 | 11.51 | 278.93 | 8.93 | 314.20 | 0.2147 | -368.8 | -253.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-04 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | 12.74 | 294.77 | 24.77 | 292.56 | 0.4444 | -450.0 | -337.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.90 | 293.78 | 23.78 | 297.93 | 0.4428 | -846.0 | -681.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 15.25 | 293.61 | 23.61 | 298.79 | 0.4428 | -601.0 | -593.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 5.68 | 284.08 | 14.08 | 280.29 | 0.2471 | -855.0 | -653.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 12.97 | 282.05 | 12.05 | 309.90 | 0.2662 | -693.0 | -546.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.10 | 281.67 | 11.67 | 311.15 | 0.2628 | -886.0 | -754.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 10.95 | 281.35 | 11.35 | 304.93 | 0.2367 | -993.0 | -772.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.54 | 280.82 | 10.82 | 300.82 | 0.2166 | -919.0 | -755.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 13.42 | 280.89 | 10.89 | 314.01 | 0.2566 | -767.0 | -648.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.37 | 280.60 | 10.60 | 304.60 | 0.2208 | -897.0 | -643.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 10.28 | 280.41 | 10.41 | 304.73 | 0.2173 | -879.0 | -701.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.95 | 280.37 | 10.37 | 316.88 | 0.2567 | -946.0 | -749.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.09 | 280.18 | 10.18 | 300.42 | 0.2033 | -846.0 | -713.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.35 | 280.07 | 10.07 | 292.60 | 0.1887 | -1007.0 | -769.5 | |
| 0.91 | 2.00 | 0.46 | 1.01 | 9.27 | 280.06 | 10.06 | 301.51 | 0.2032 | -1148.5 | -971.3 | |
| 12.53 | 109.31 | 6.36 | 55.46 | 11.12 | 279.97 | 9.97 | 309.02 | 0.2196 | -1128.0 | -627.1 | |
| 5.99 | -16.00 | 3.04 | -16.00 | 11.42 | 279.82 | 9.82 | 310.53 | 0.2209 | -1067.1 | 999999 | |
| 13.16 | -16.00 | 6.68 | -16.00 | 10.93 | 279.77 | 9.77 | 308.90 | 0.2150 | -1348.1 | 999999 | |
| 3.18 | -16.00 | 1.61 | -16.00 | 10.56 | 279.76 | 9.76 | 307.54 | 0.2111 | -1054.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 11.67 | 279.61 | 9.61 | 312.00 | 0.2209 | -823.0 | -612.3 | |
| 1.18 | -16.00 | 0.60 | -16.00 | 11.12 | 279.24 | 9.24 | 311.13 | 0.2102 | -1153.7 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.51 | 8.15 | 279.16 | 9.16 | 298.65 | 0.1803 | -1029.0 | -958.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 7.51 | 278.80 | 8.80 | 296.28 | 0.1699 | 884.0 | 696.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.98 | 278.68 | 8.68 | 319.07 | 0.2254 | -774.0 | -572.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.79 | 278.57 | 8.57 | 318.85 | 0.2219 | -766.0 | -602.0 | |
| 0.00 | 3.81 | 0.00 | 1.93 | 11.81 | 278.07 | 8.07 | 317.39 | 0.2038 | -761.0 | -764.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.27 | 277.74 | 7.74 | 323.07 | 0.2191 | -632.0 | -373.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.63 | 277.59 | 7.59 | 318.48 | 0.1961 | -851.0 | -683.5 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 6.95 | 277.27 | 7.27 | 297.30 | 0.1420 | 964.0 | 709.0 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 12.47 | 277.37 | 7.37 | 322.05 | 0.2045 | -794.0 | -595.5 | |
| 1.09 | 2.45 | 0.55 | 1.24 | 13.42 | 277.24 | 7.24 | 325.31 | 0.2163 | 952.2 | 757.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.37 | 277.11 | 7.11 | 322.73 | 0.2006 | -721.0 | -613.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.18 | 276.86 | 6.86 | 319.71 | 0.1820 | 561.0 | 459.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.30 | 276.49 | 6.49 | 321.71 | 0.1796 | 851.0 | 614.1 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 13.77 | 276.46 | 6.46 | 329.14 | 0.2140 | -828.0 | -647.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.75 | 275.90 | 5.90 | 328.78 | 0.1942 | 869.0 | 653.2 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 11.49 | 275.87 | 5.87 | 325.09 | 0.1758 | 948.0 | 714.2 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 13.19 | 275.59 | 5.59 | 331.23 | 0.1980 | 1169.0 | 948.5 | |
| 0.00 | 6.17 | 0.00 | 3.11 | 12.63 | 275.45 | 5.45 | 330.39 | 0.1886 | 852.0 | 700.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.33 | 275.38 | 5.38 | 329.86 | 0.1834 | 1046.0 | 833.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.88 | 275.27 | 5.27 | 331.86 | 0.1908 | 1128.0 | 966.4 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 11.68 | 275.18 | 5.18 | 328.91 | 0.1721 | 892.0 | 675.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.19 | 275.15 | 5.15 | 333.16 | 0.1945 | 930.0 | 728.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.76 | 274.99 | 4.99 | 332.86 | 0.1867 | 916.0 | 724.2 | |
| 0.00 | 7.90 | 0.00 | 4.00 | 13.81 | 274.88 | 4.88 | 335.74 | 0.2021 | 970.0 | 798.9 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.29 | 274.84 | 4.84 | 334.78 | 0.1936 | 896.0 | 761.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.56 | 274.74 | 4.74 | 337.81 | 0.2129 | 738.0 | 586.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.26 | 273.99 | 3.99 | 333.90 | 0.1559 | 876.0 | 737.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 14.16 | 273.85 | 3.85 | 341.01 | 0.2011 | 1003.0 | 925.0 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 14.81 | 273.86 | 3.86 | 342.00 | 0.2117 | 414.0 | 503.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.31 | 273.24 | 3.24 | 345.38 | 0.2170 | 611.0 | 415.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.94 | 273.01 | 3.01 | 345.93 | 0.2098 | 929.0 | 800.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
